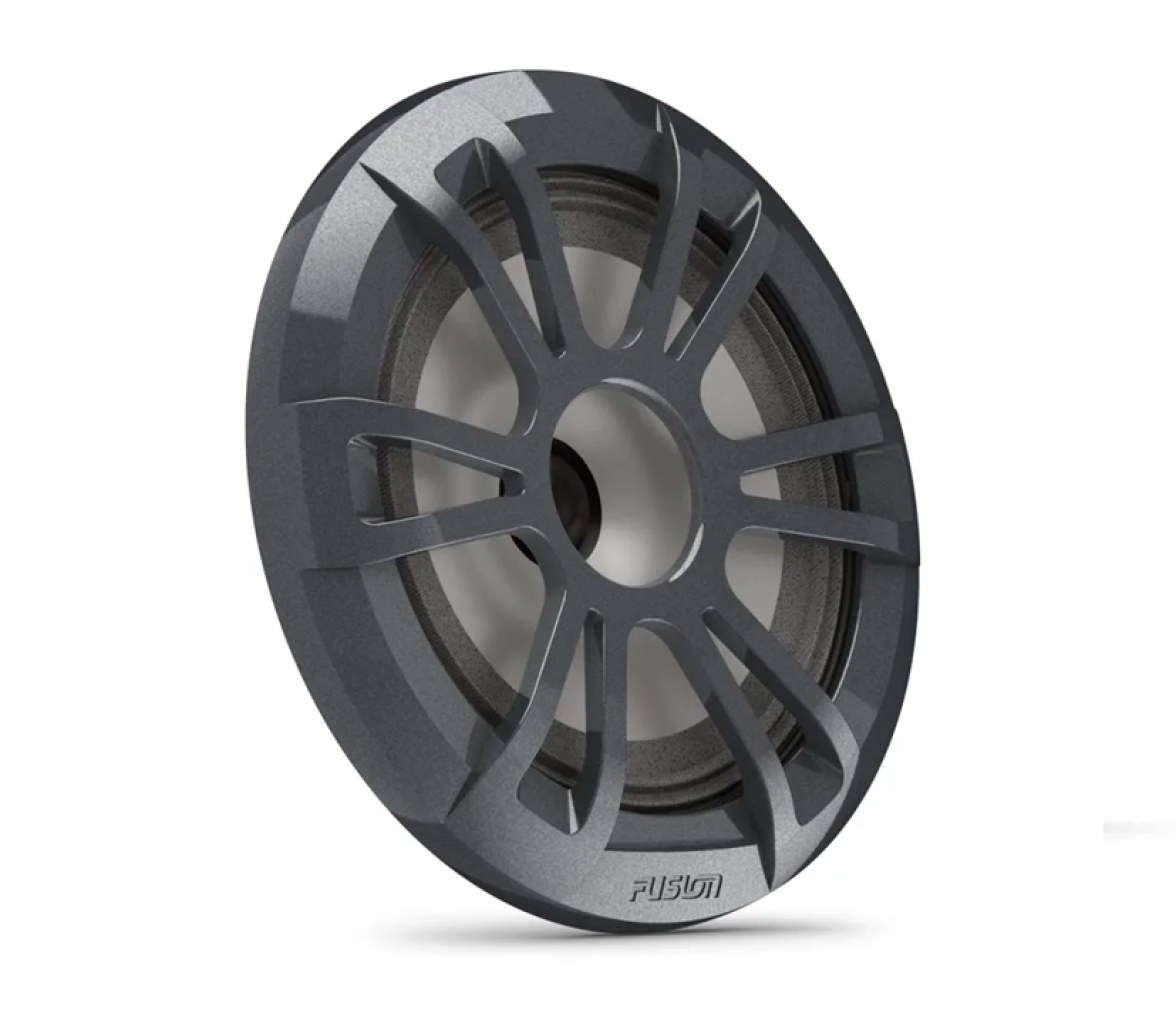

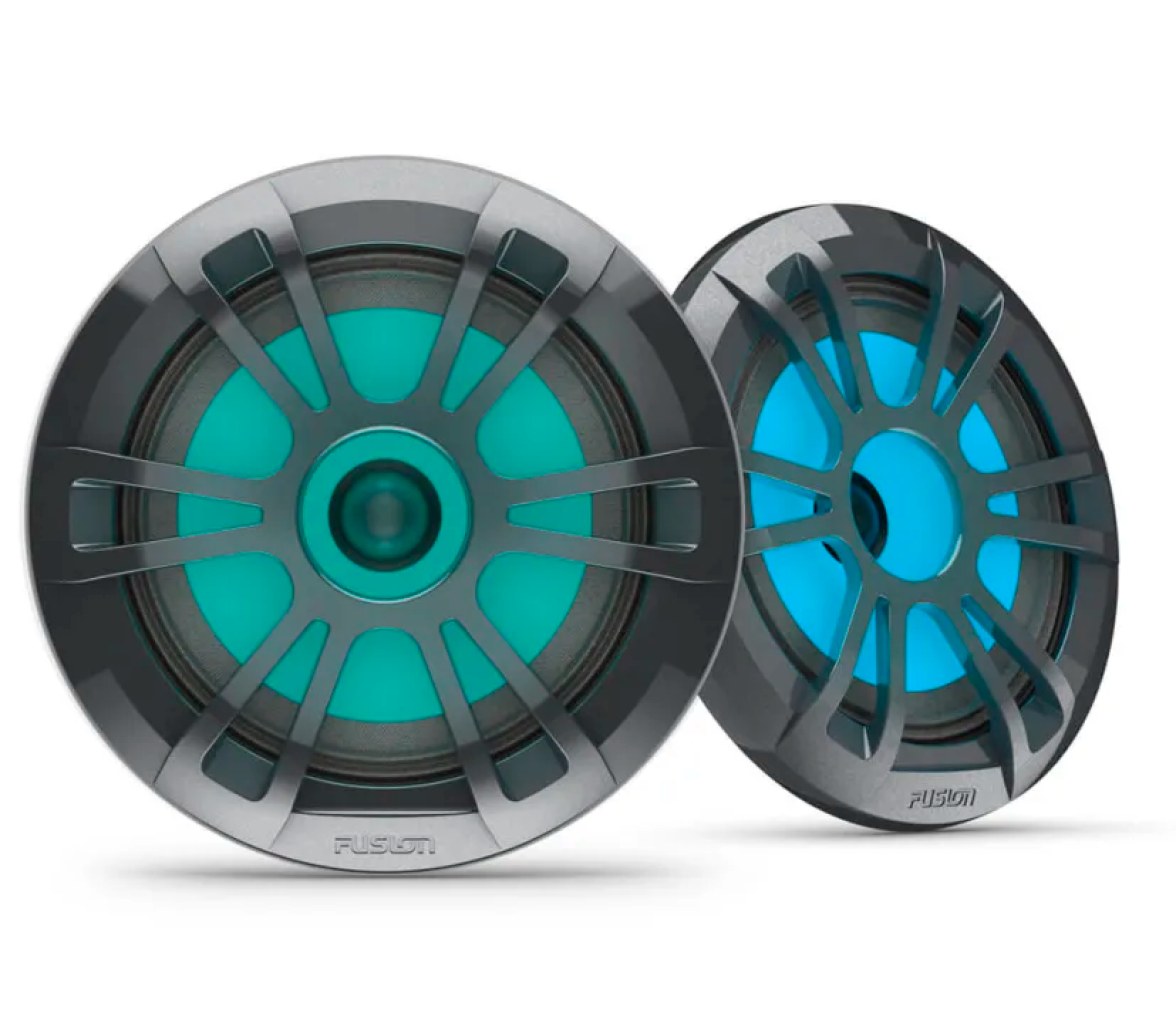

● Sport-style EL series features translucent injection molded polypropylene cone to ensure bright, even LED illumination on board.

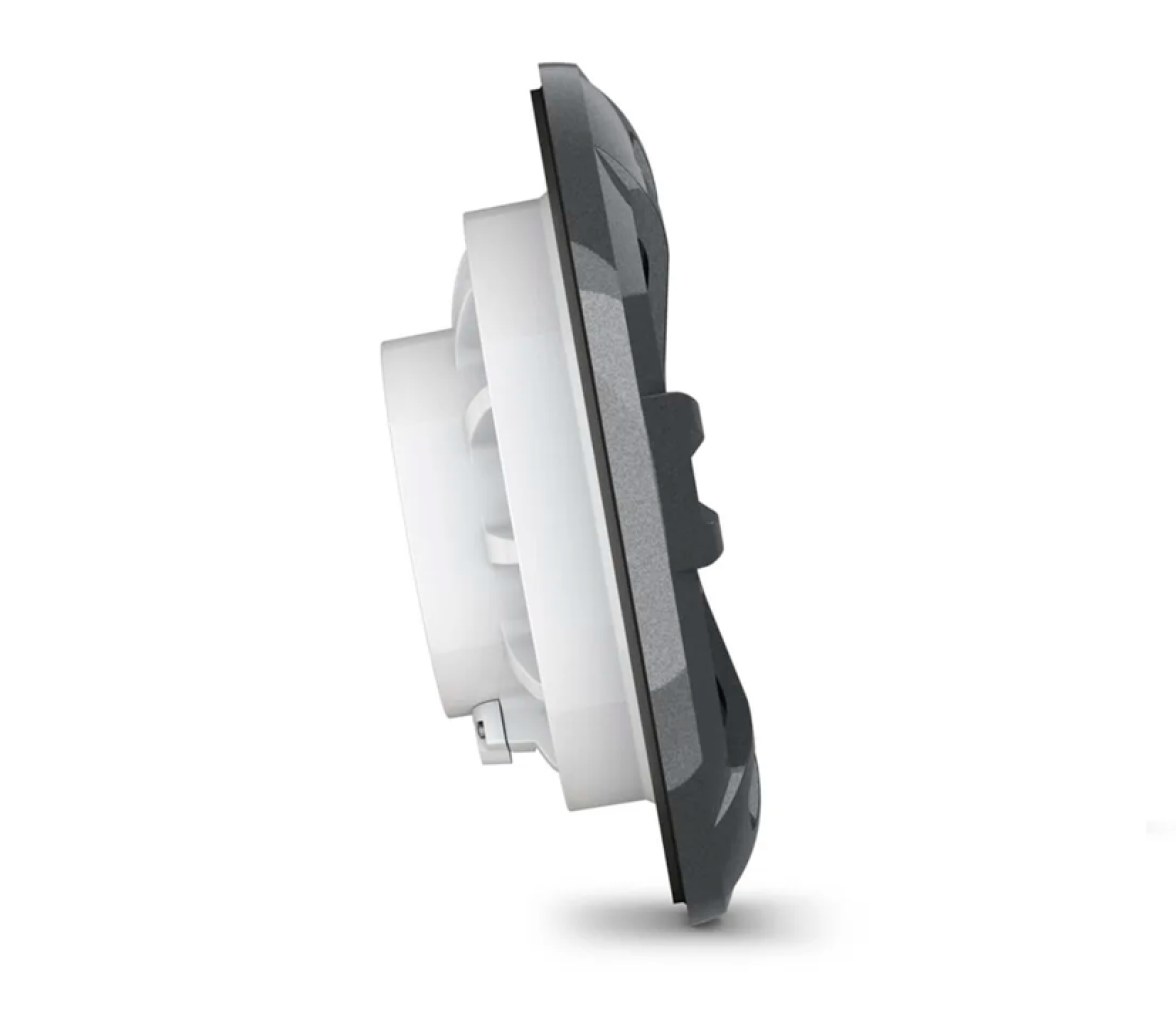

● EL Series speakers are designed to deliver quality audio with a shallow basket design, ideal for boats with a limited mounting depth (1.69" / 43mm).
● They are designed to work optimally with Fusion marine amplifiers and players with custom DSP profiles for an enhanced audio experience.
● EL Series speakers are IPS65-rated, with a salt spray and UV stable design to perform and last aboard your boat.
● Classic black and white, and a new non-illuminated sport gray model now feature a black injection molded polypropylene (IMPP) cone.
● The sport gray model with RGB will continue to be available for those looking for an illuminated option.
● RA60 kits have also been updated with this new cone.
| Colors | ● Grey with LED |
| Code | 010-02080-20 |
| Dimensions | 6,93″ x 2,26″ (176 x 57,5 mm) |
| Dust and water resistance classification | IP65 |
| Configuration | Rango completo |
| Size | 6.5" |
| Peak power (watts) | 80 vatios |
| RMS power (watts) | 20 vatios |
| Sensitivity (1 watt at 1 meter) | 91 dB |
| Frequency response | 45 Hz–16 kHz |
| Nominal impedance | 4 ohmios |
| Recommended Amplifier Power (RMS) | 20 - 40 W/canal |
| LED lighting | Sí, RGB (solo estilo deportivo) |
| LED Power Voltage DC 10.8-16V | 10,8-16 V de CC (solo estilo deportivo) |
| LED lights charging current at 16 VDC | 150 mA (solo estilo deportivo) |
| Operating temperature range | 0 - 50 °C (32 - 122 °F) |
| Nominal Voice Coil Diameter | 0.79" |
| Cone material Polypropylene | Cono de polipropileno con borde de tela |
| Compass safe distance | 254 cm (100") |
| Warranty | 1 años |
|

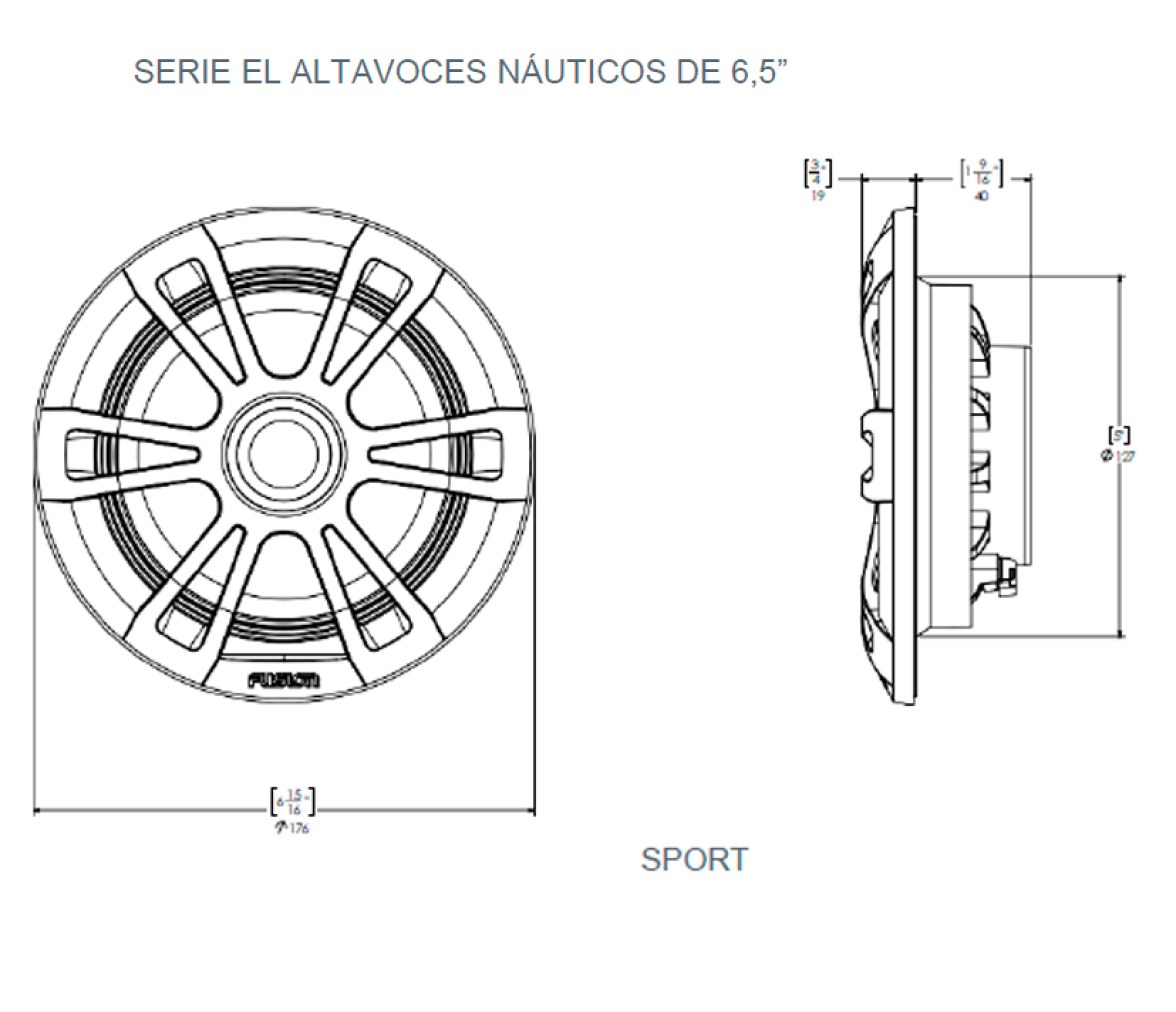

Mounting dimensions |
|
| Mounting Clearance Diameter | 5,12″ (130 mm) |
| Mounting Depth Clearance | 1,69″ (43 mm) |
[/list_down]
● A pair of speakers (depending on what you select)
● 12 stainless steel Phillips mounting screws (4.2 mm x 25.4 mm [8 gauge x 1″])
● Two 6 meter (20 ft) speaker cables
● Documentation
