● Signature Series 3i subwoofers add drama with high-quality low frequencies that enhance the listening experience.

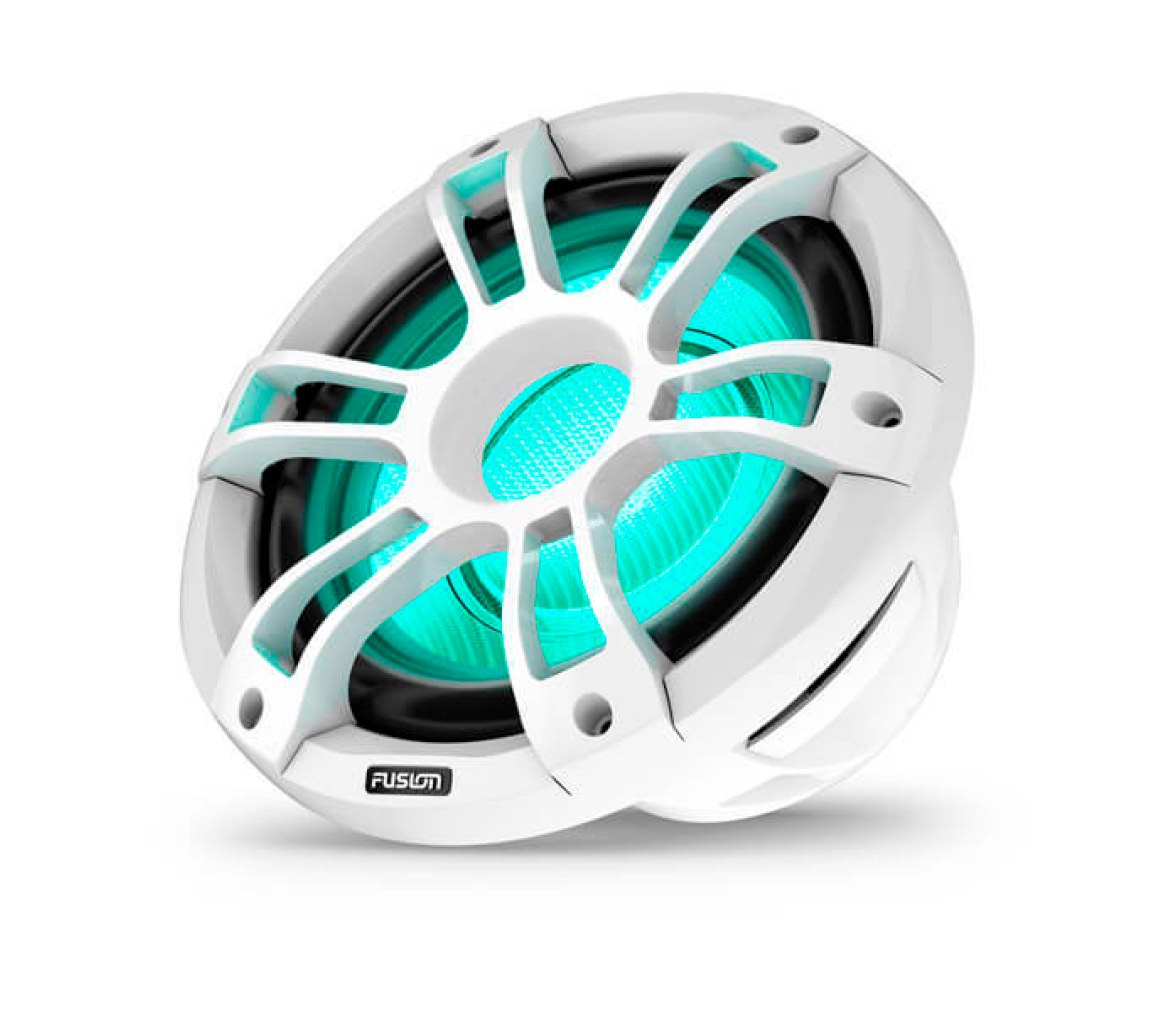

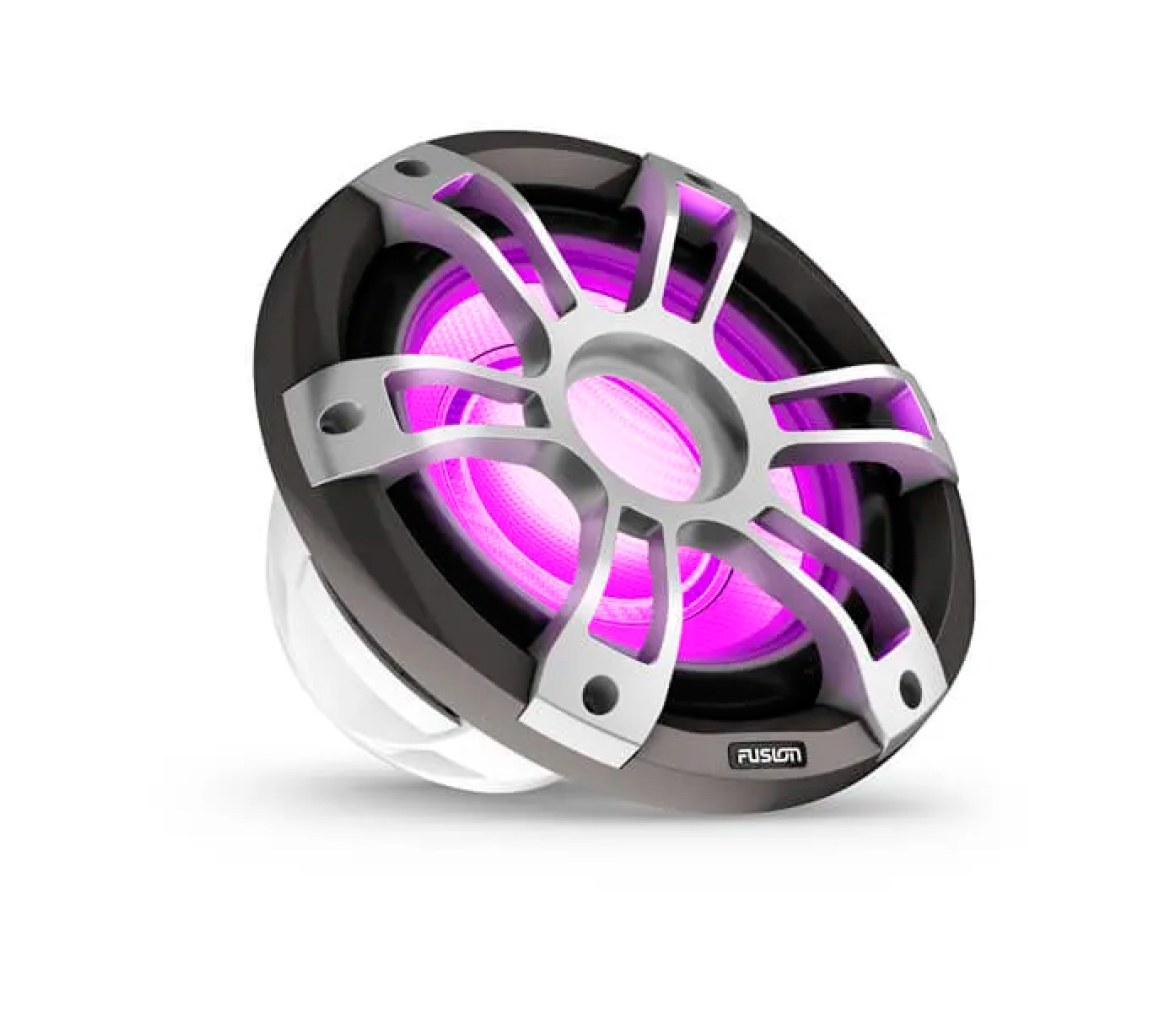

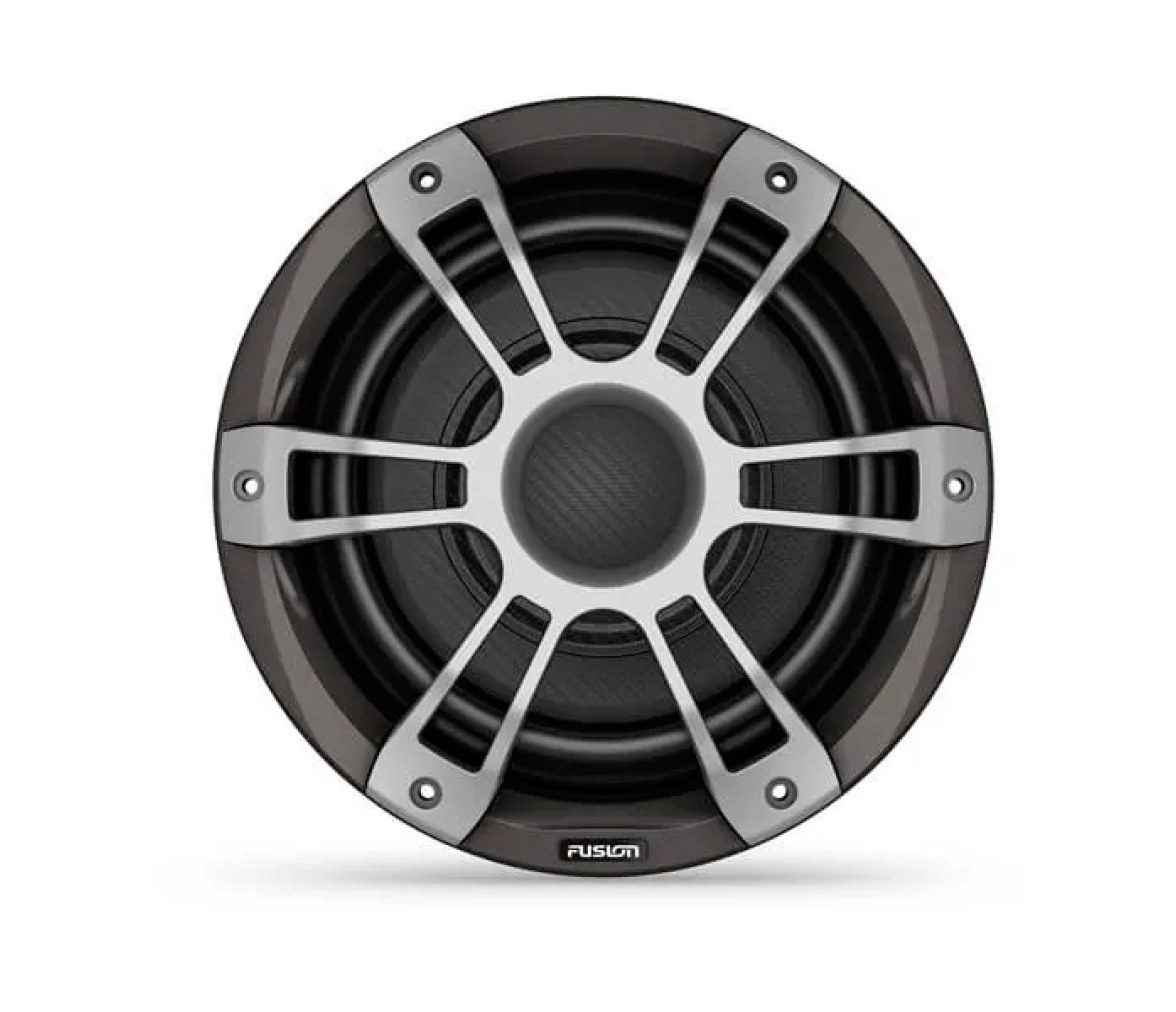

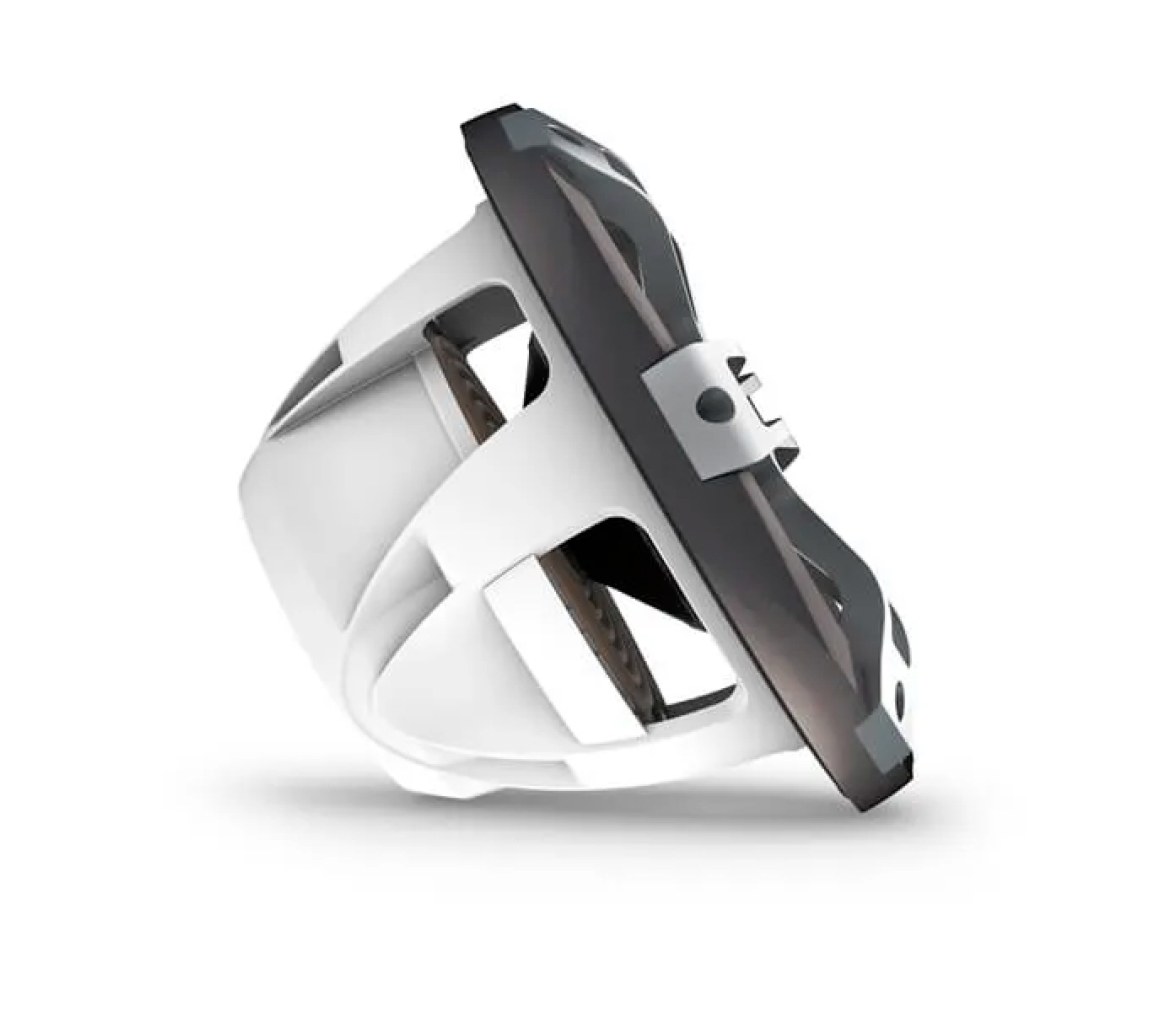

SPORTS SUBWOOFER
● Available in white or grey, with CRGBW LED lighting
● Series in size 10″.
NAUTICAL DESIGN CONNECTORS
● New waterproof connectors are now included as standard.
● As well as simplifying installation, they offer excellent protection against the harsh marine environment.
REDESIGNED GRILLE
● Improvements in materials and protective design maintain the speakers' sleek aesthetic appeal year after year.
TRUE-MARINE™ PHILOSOPHY
● Any product bearing the Fusion True-Marine Seal of Warranty has been engineered by Fusion to withstand the harshest marine environments, season after season, and comes with an industry-leading 3-year warranty.
POLYPROPYLENE CONE TECHNOLOGY
● This technology offers exceptional self-damping, high fidelity and bass reproduction, creating the highest quality onboard sound experience imaginable.
SYSTEM INTEGRATION
● These subwoofers are designed to work optimally with stereo systems and stereo systems (sold separately) with custom DSP profiles.
● The Fusion-Link™ smart device app is required to set them up.
LED LIGHTING
● Cool white, red, green, blue and warm white. Choose one or several colors, whichever best matches the musical environment
| Size | 10" | |

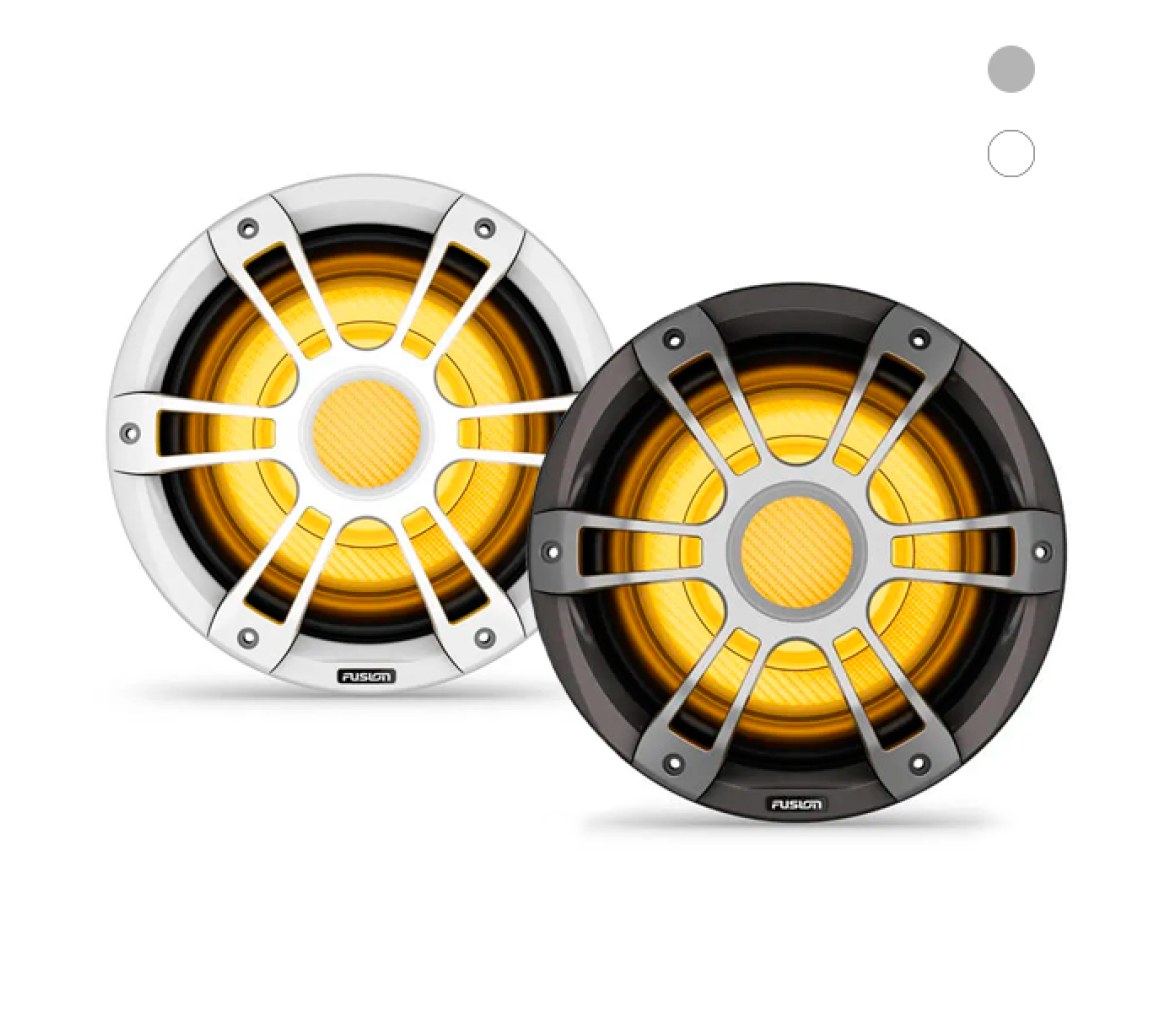

| Colors | ● White | ● Grey |

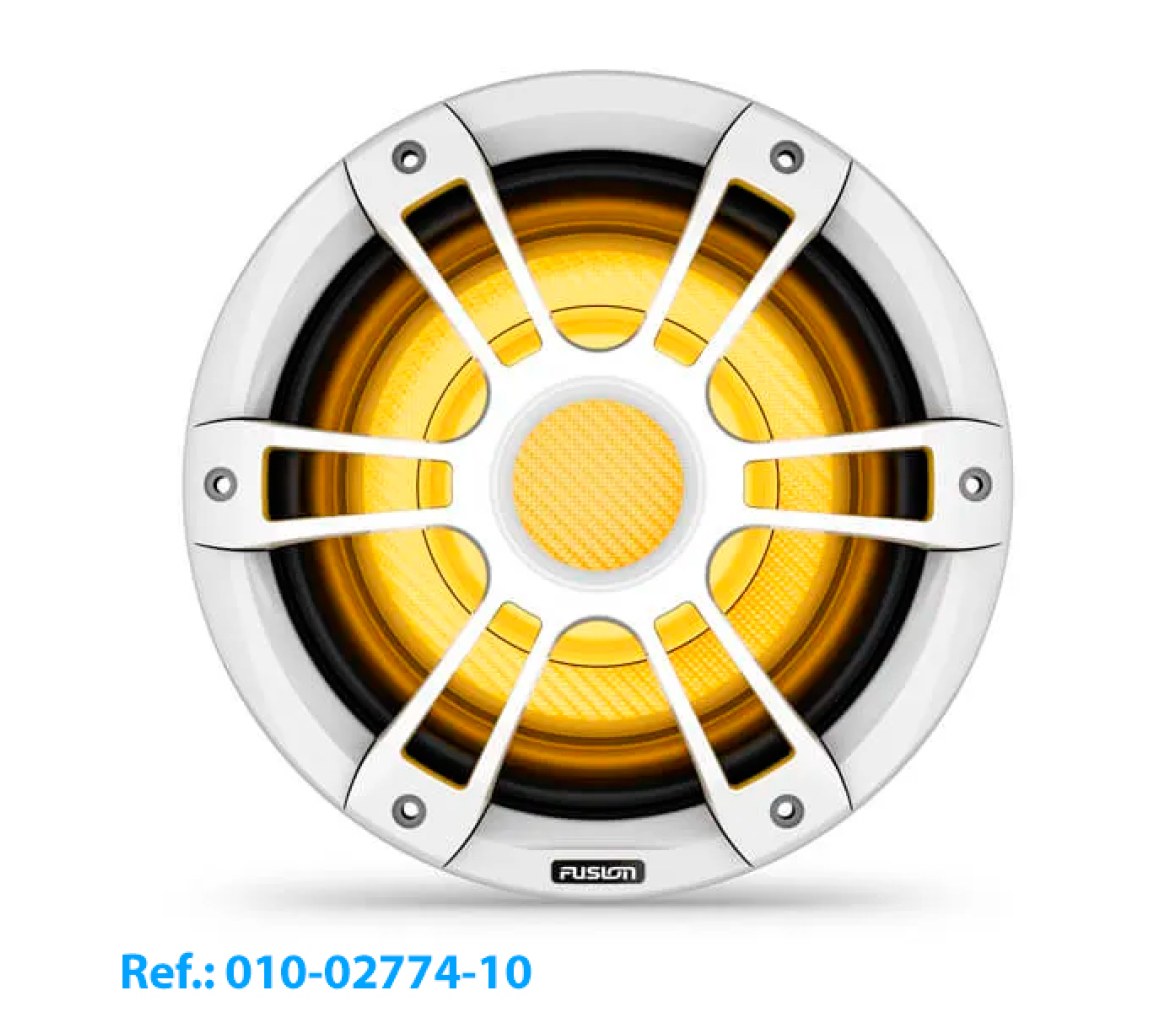

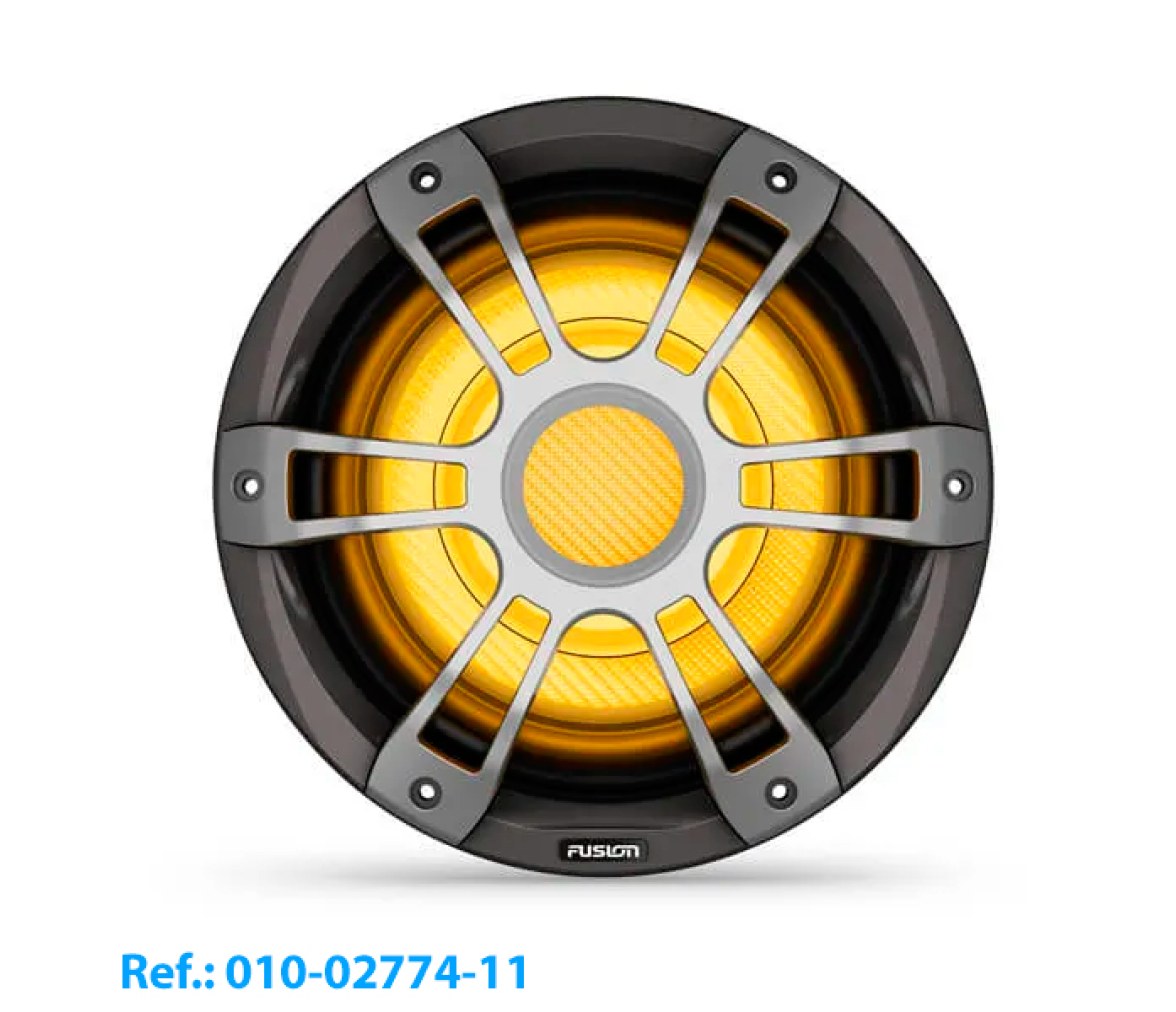

| Code | 010-02774-10 | 010-02774-11 |
| Physical dimensions | 275 x 172 mm | |
| Dust and water resistance rating | IP65 | |
| Peak power (watts) | 600 W | |
| RMS power (watts) | 300 W | |
| Sensitivity (1 watt at 1 meter) | 86 dB | |
| Magnetic structure | 1,9 kg (68 oz) | |
| Frequency response | 30 Hz–2 kHz | |
| Rated impedance | 4 ohmios | |
| Recommended Amplifier Power (RMS in Watts) | 50–600 W | |
| LED lighting | Yes, CRGBW (LED sport style models only) | |
| LED lights supply voltage | 10.8–16 V DC (Sport-style LED models only) | |
| LED charging current at 14.4 V DC (max.) | 300mA (Sport style models with LED only) | |
| Operating temperature range | 0–50 degrees Celsius (32–122 degrees Fahrenheit) | |
| Nominal voice coil diameter | 2" | |
| Cone material | Polypropylene cone with rubber surround | |
| Compass safety distance | 520 cm (205") | |
| Subwoofer connection | Flexible cable with waterproof 2-way connector, 150 mm (5.9") | |
| Connecting the LED lighting (Sport style models with LED only) | Flexible cable with 6-way waterproof connector, 150 mm (5.9") | |
| Warranty | 3 años | |

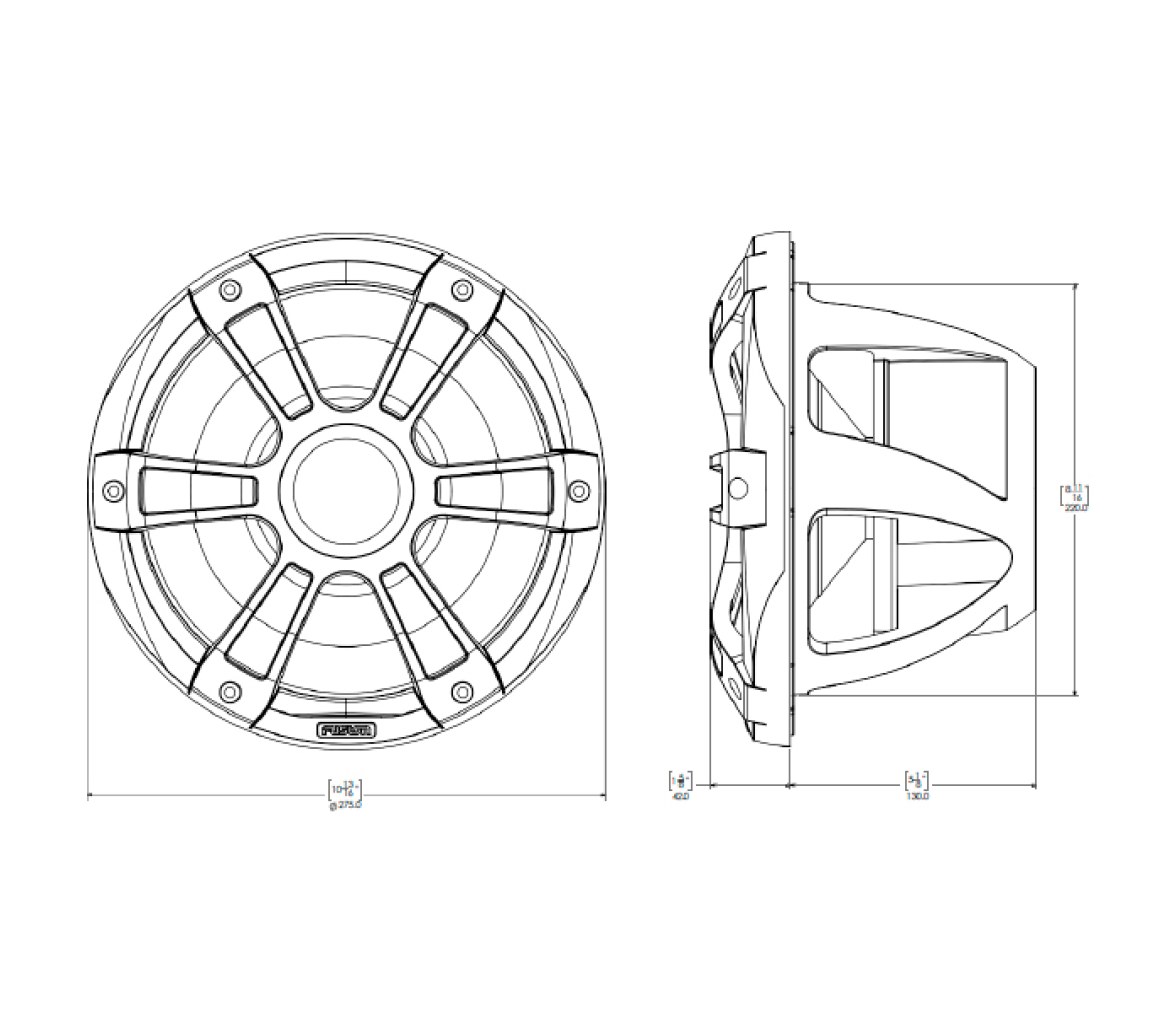

| Mounting dimensions | ||
| Mounting: Mounting Clearance Diameter | 223 mm (8,78") | |
| Mounting: Mounting Depth Clearance | 133 mm (5,24") | |
| Recommendations for an optimal box | ||
| Volume of the sealed box (fully filled with absorbent material) | 27 L (0,95 pies cúbicos) | |
| Bass reflex box volume (coated with absorbent material) | 45 L (1,6 pies cúbicos) | |
| Port diameter | 104 mm (4,1") | |
| Port length | 265 mm (10,43") | |
● Box dimensions (H x W x D): 328 x 312 x 198 mm
● A subwoofer (depending on what you select)
● 6 stainless steel Phillips mounting screws, 4.8 mm x 50 mm (10 gauge x 2")
● Waterproof cable assembly with 2-pin connector (150 mm [5.9"])
● Waterproof cable assembly with 6-pin connector (150 mm [5.9"]; sport-style models with LED only)
● Documentation
