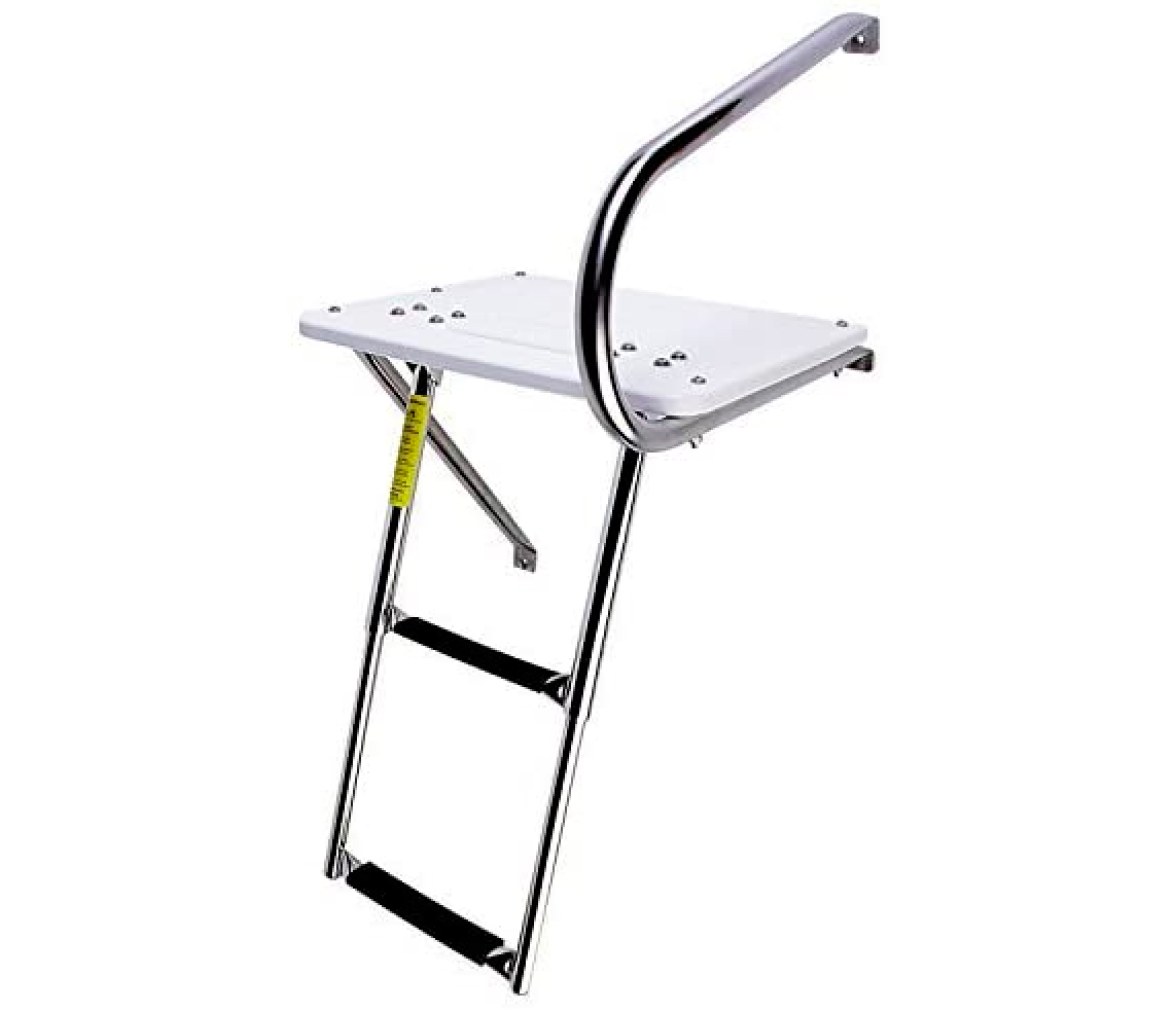

● After determining which side of the platform is most suitable for the handrail, mount it to the platform using 2 bolts through holes in platform. Secure with 2 locknuts.
● Mount SS strut 22" by inserting bolt through hole and secure with locknut.
● Mount SS strut 11" by inserting two bolts thorugh holes and secure with 1 locknut.
● Choose most suitable side of transom for mounting platform. Turn motor unit as fas as possible to that side. Make a line on the transom indicating motor unit's full extension to that side.
● Position platform away from draen line at desired mounting location, parallel to the water line and mark 4 mounting holes through flattened ends of rails and/or struts onto the transom.
● Drill four marked holes with a bit compatible with selected fasteners (fasteners not provided). Hold drill perpendicular to transom when drilling.
● If transom is less than 2" tkick, it's recommended that a backing plate be mounted on the inside of transom.
● NOTE.: The backing plate should be made of either aluminum, marine plywood or sorne other suitable non-compressive material.
● Coat the mounting surfaces of the rails and/or struts with a marine grade adhesive/caulking compound; Squeeze a small amount into mounting holes in transom. Insert selected bolts through holes and secure in positiion with suitable fasteners.
