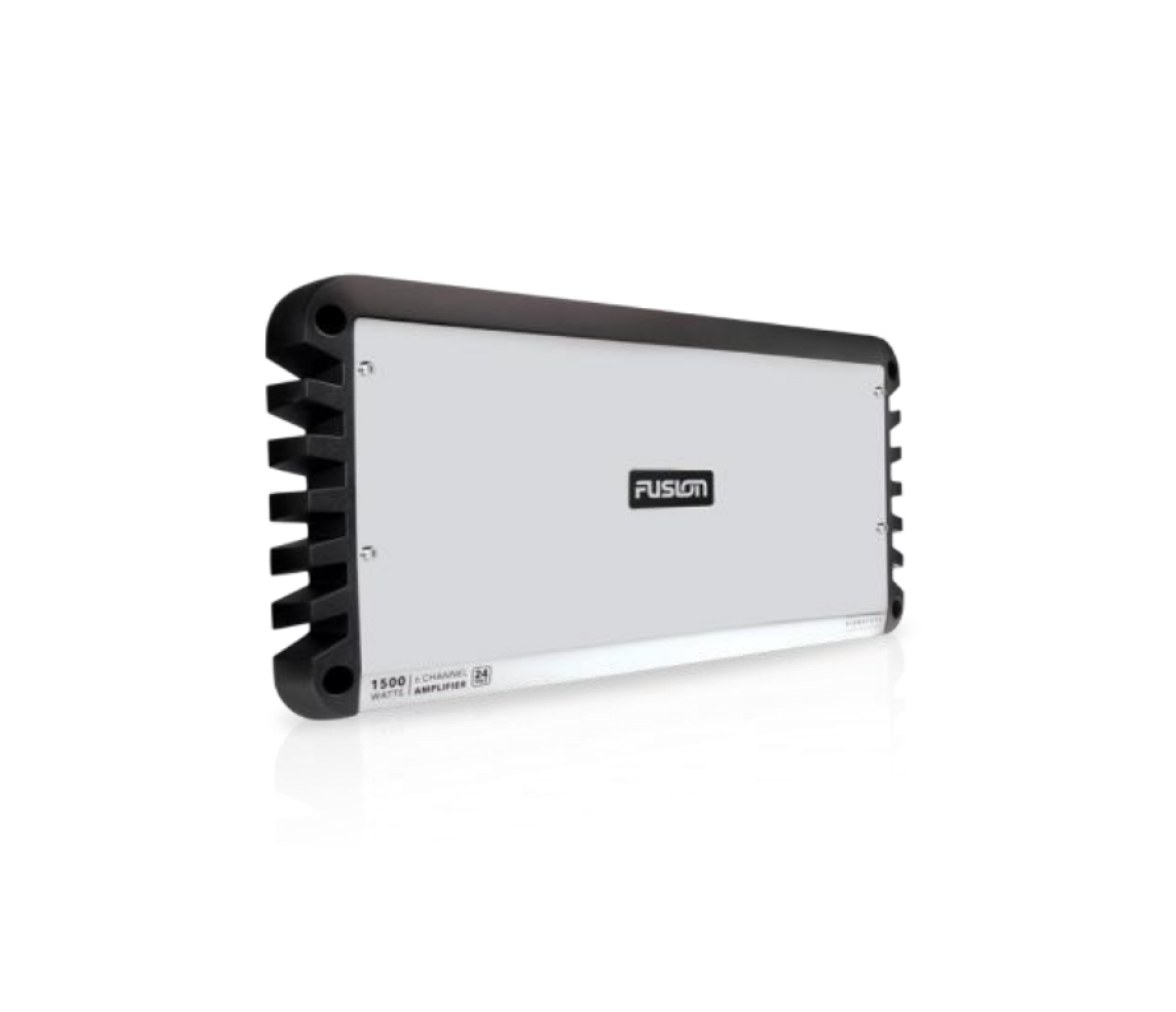

● Designed for boats that operate on 24 volt electrical systems.
● High power.
● Plug-and-play configuration for easy installation without the additional need for a power adapter.
● It allows working with 4 different connections:
● 6 speakers working at 4 ohms.
● 6 pairs of speakers at 2 ohms (2 speakers of 4 ohms per channel in parallel).
● 4 pairs of speakers at 2 ohms (2 x 4 ohm speakers per channel in parallel).
● 1 subwoofer.
● Offers higher efficiency and higher output. Play audio longer and louder volume while saving battery life.
● Designed with PBC to better resist the nautical environment.
● Control panel with hidden stainless steel cover for added protection and an aesthetic finish.

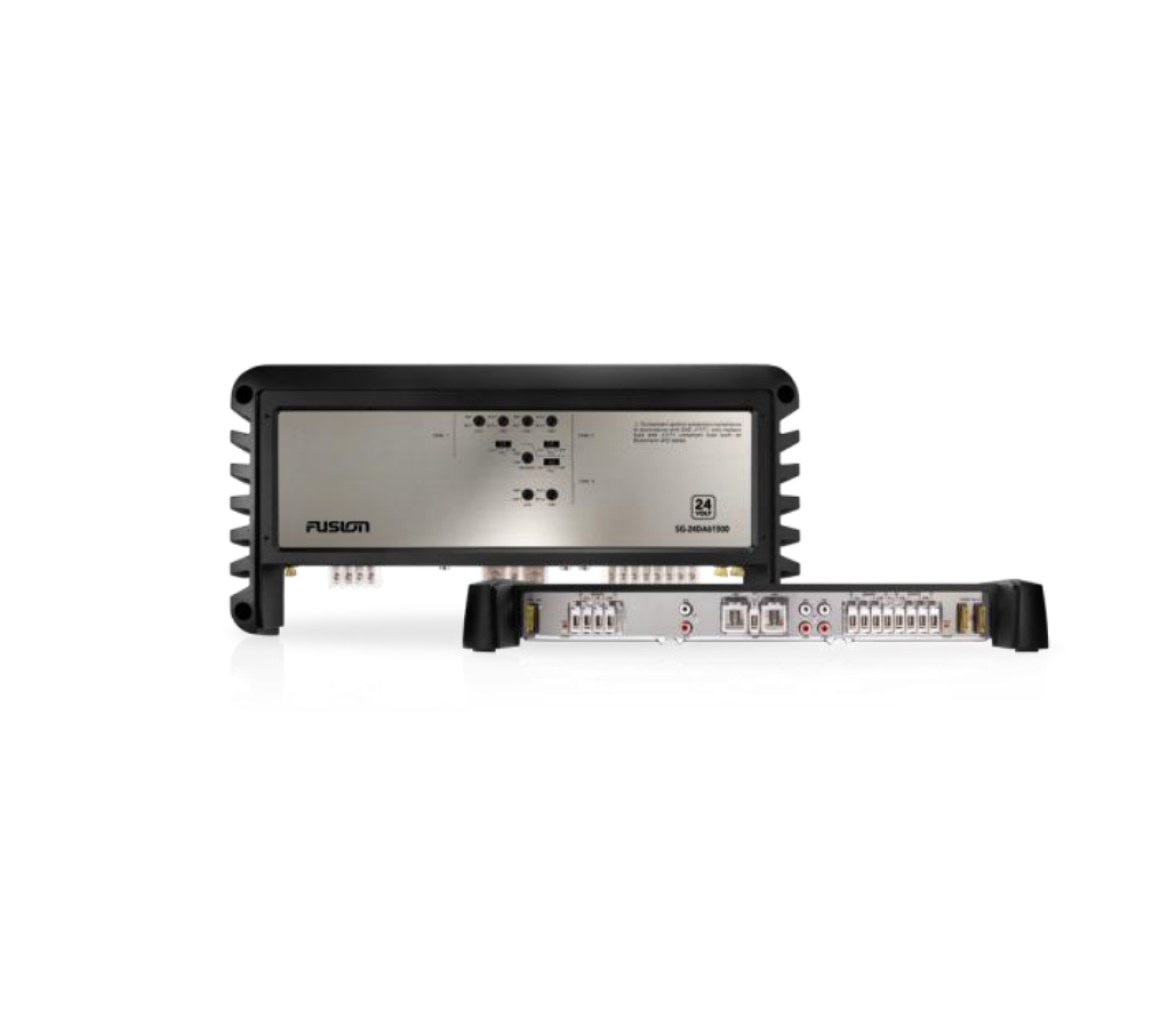

● Labeling of input and output connections for more intuitive use.
● High heat dissipation.
● Fusion's True-Marine design for durability.
● Peak Power (Watts): 1,500 W.
● Amplifier (Class): Class-D.
● Frequency response: 10 Hz to 40 kHz (-3 dB, dB at 4 ohms).
● Outpu power
● 4 Ohm: 100 W RMS x 6 @ 28.8 V input <1% THD.
● 2 Ohm: 140 W RMS x 6 @ 28.8 V input <1% THD.
● 4 Ohm bridged: 280 W RMS x 3 @ 28.8 V input <1% THD.
● Input sensitivity: 0.3 V to 8 V RMS.
● Input impedance: 7K ohm nominal.
● Full Range Filter High Pass / Low Pass: Yes, customizable.
● Crossover frequency filter: 32 Hz to 320 Hz, adjustable.
● Bass boost: 0 to 9 dB, adjustable (3 zones only).
● Voltage: 21.6V to 32V DC.
● Remote start: Yes - 6V.
● Current Draw (Standby) <1 mA @ 28.8 V input.
● Current Draw (Idle) <1.25 A @ 28.8 V input.
● Current consumption (Maximum) 35 A @ 28.8 V input.
● 3 x 20A ATC Fusible Blade (SAE J1171 Compliant).
● Circuit protection:
● Reverse voltage.
● Input undervoltage / overvoltage.
● Overheating.
● Output short circuit.
● Operating temperature 0 ° C to 50 ° C (32 ° F to 122 ° F).
● Conditions for installation in dry area only.

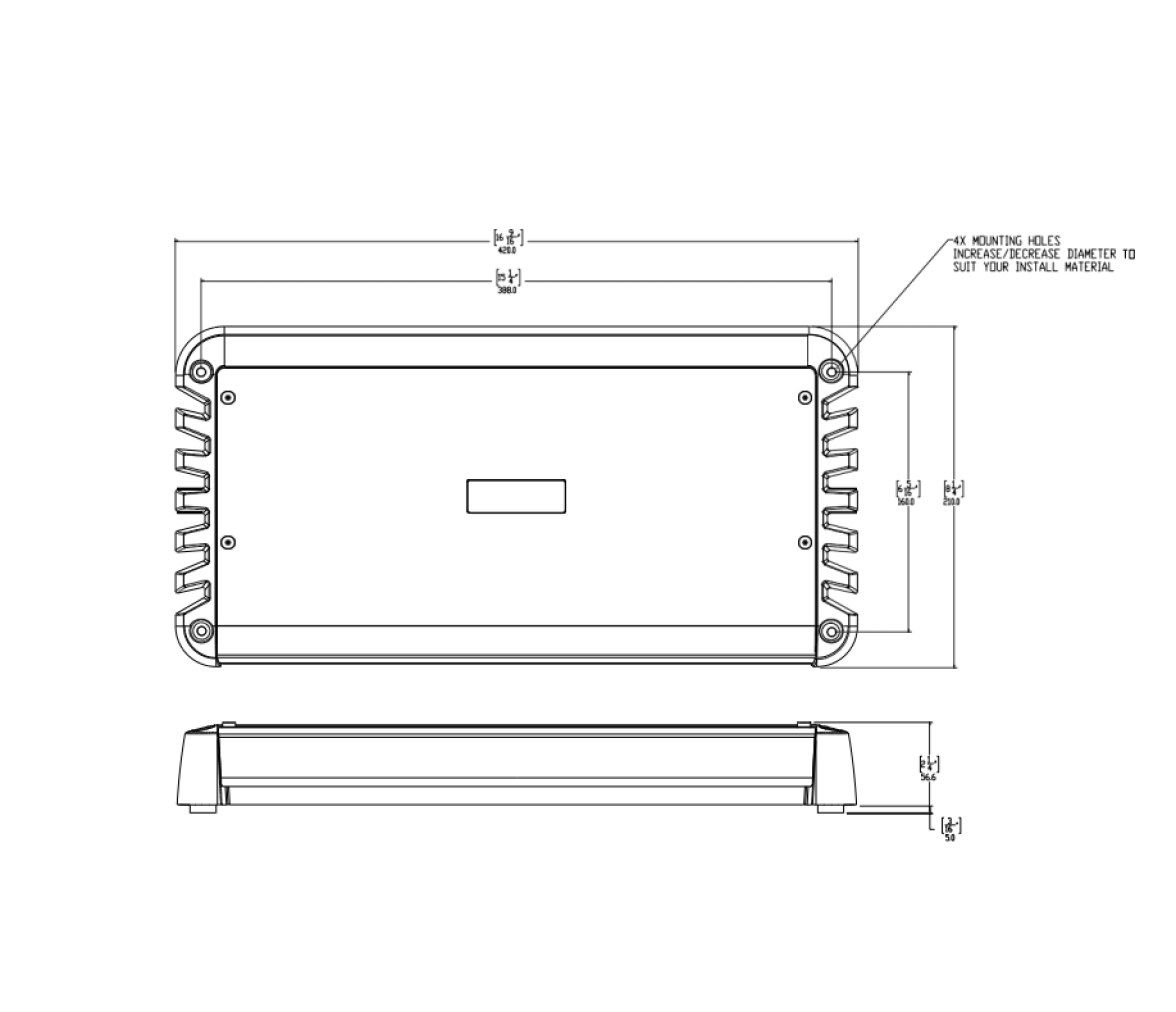

● Measures:
● Height: 42 cm (16-9 / 16 ”).
● Width: 21 cm (8-1 / 4 ”).
● Depth: 5.7cm (2-1 / 4 ”).
