Garmin 6" ECHOMAP UHD2 Chartplotters, 62sv with GT54 Transducer

PROBE COMPATIBLE
●  With sharp traditional sonar and bright ClearVü and SideVü scanning sonars, fish will have nowhere to hide.
●  ECHOMAP UHD2 is also compatible with LiveScope real-time scanning sonar.

RANGES OF INTENSE COLORS
●  With the scanning probes' high-contrast, vivid color gamuts, distinguishing targets and structures has never been easier.

TAKE THE TRANSDUCER WITH YOU
●  The ECHOMAP UHD2 device is compatible with a wide variety of Garmin transducers.

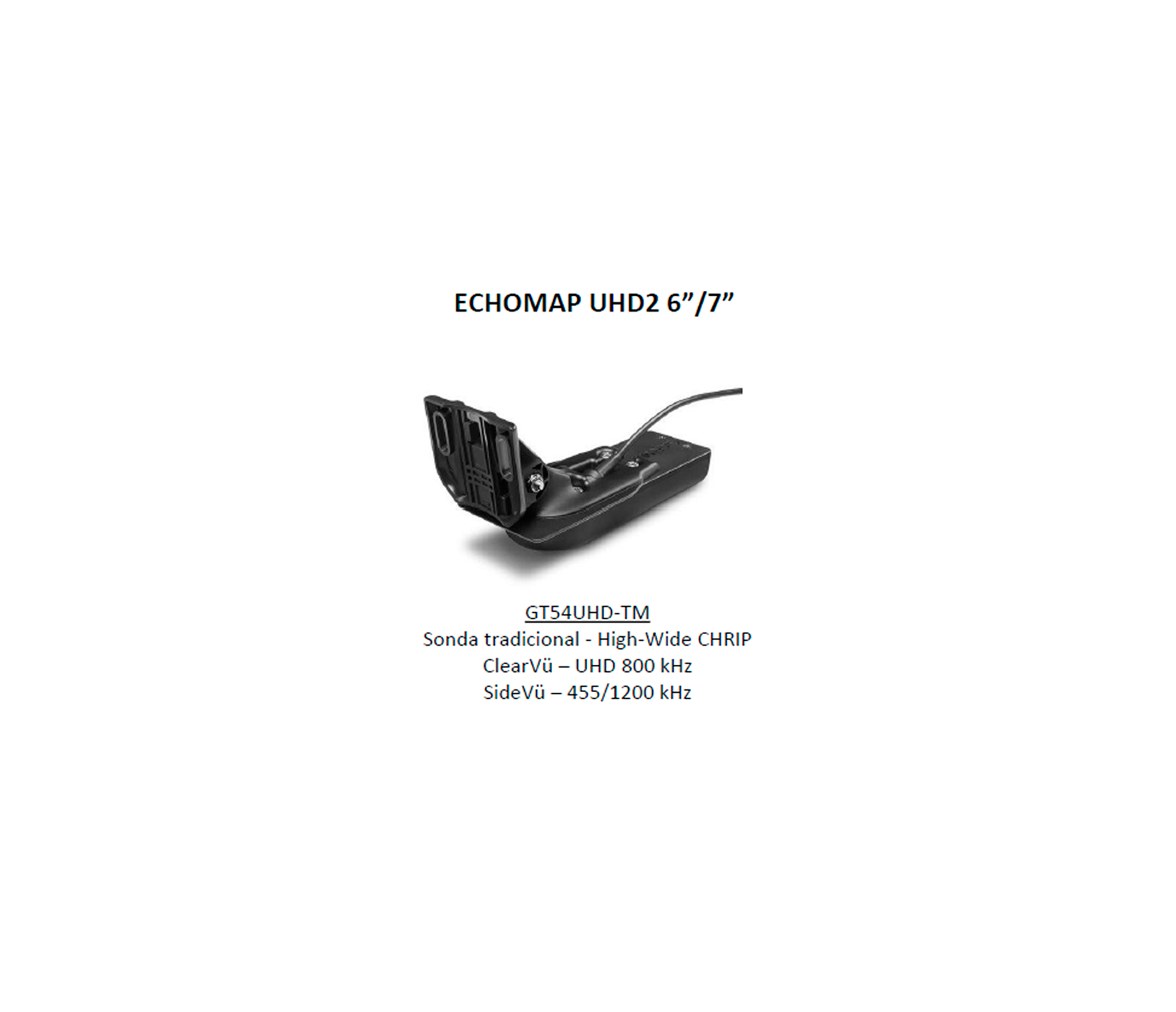

●  The 6″ plotter includes a GT54 transducer.

ADD LETTERS
●  Enjoy unprecedented coverage and detail with optional Garmin Navionics+ integrated maps or optional Garmin Navionics Vision premium maps with high-resolution relief shading, satellite imagery, sonar imagery and much more. A 1-year subscription is even included for downloadable daily updates.

WIRELESS NETWORKS
●  If you have another compatible ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information such as sonar images1, waypoints, and routes with each other.

ACTIVE CAPTAIN APP
●  Built-in Wi-Fi connectivity, allowing you to pair with the comprehensive free mobile app to access OneChart functionality, smart notifications2, software updates, Garmin QuickDraw community data and much more.

AUTO GUIDANCE+ TECHNOLOGY
●  Chartplotters with integrated Garmin Navionics+ charts include Auto Guidance+3 technology, which can be downloaded through the ActiveCaptain app.

FISH WITH FORCE
●  ECHOMAP UHD2 connects wirelessly to your force Electric Motor to create and follow routes, navigate to waypoints, monitor speed, check battery life and much more.

MULTIBAND GPS
● Thanks to multi-band GPS, you'll enjoy improved positioning accuracy, especially in areas where signals are reflected or weak.

Physical and performance
●  Screen Size (Width/Height): 13.8 x 7.8 cm, 15.7 cm
●  Power input: 9 to 18 Vdc
●  Screen resolution (Width/Height): 800 x 480 pixels
●  GPS: Yes
●  Unit dimensions (W/H/D): 20.6 x 13.1 x 6.7 cm
●  Receiver: 10Hz
●  Water resistance rating: IPX7
●  Weight: 0.8kg
●  Mounting options: Surface or recessed
●  Display type: WVGA, TN

---

 Maps and navigation

●  Garmin Navionics+™ (coasts) Yes (see Additional)
●  Garmin Navionics Vision+™ Yes
●  Supports data cards 1 microSD™ card; 32 GB maximum size
●  Garmin Navionics+ inland and coastal: Yes (see Additional)
●  Garmin Navionics+ (interior): Yes (see Additional)
●  Routes 100
●  Garmin Navionics+™: Yes

---

Characteristics

●  Waypoints: 5,000
●  Navigation functions: Yes
●  NMEA 0183 compatible: no
●  Built-in receiver: Yes
●  USB ports: no
●  MOLE: Yes
●  SideVü: built-in 260/455/800/1000/1200 kHz
●  Support DSC (send position data to DSC compatible VHF): Yes
●  Touch screen: no
●  Additional features:

●  Garmin Navionics+ (inland and coastal): 65sv Canada, Australia and New Zealand
●  Garmin Navionics+ (coastal): 64sv U.S. coastal, 65sv UK/Ireland
●  Garmin Navionics+ (inland): 63sv U.S. lakes
● Tide tables: 63sv, 64sv, 65sv

●  LakeVü g3 Ultra: No
●  NMEA 2000 compatible: Yes
●  ActiveCaptain-yhteensopiva: Yes
●  Typical current draw at 12 Vdc: 1.53 A
●  NMEA 2000 ports: yes
●  Tide prediction: Yes (see Additional)
●  GLONASS: Yes
●  Track points: 50,000
●  Panoptix sonar: Yes
●  Garmin Marine Network ports: 1
●  LakeVü g3: No
●  WAAS compliant: Yes
●  GSD Black Box -luotaimen tuki: No
●  Maximum current consumption at 12 V DC : 3.2 A
●  Compatible with Garmin SmartMode (customizable monitor default settings) No
●  Auto Guidance: No
●  Maximum power consumption at 10 V DC: 18.4 W
●  BlueChart g3: No
●  Standard Maps: Yes
●  LakeVü (indoor): No
●  Integrated Auto Guidance+: Yes (download via ActiveCaptain app)
●  Show the probe: Yes
●  ANT+™ (connectivity): Yes
●  GCV™ Black Box -luotaimen tuki: No
●  BNC port for external antenna: No
●  Voice audio alerts: No
●  BlueChart g3 Vision: No
●  Garmin Wi-Fi® network (local connection): Yes
●  Screen keys: Touch screen with keys
●  Beidou: Yes
●  Garmin Quickdraw Contours: Yes
●  Bluetooth calls: Yes
●  Supports AIS (tracks the position of target ships): Yes
●  Support multi-band and multi-constellation GPS: Yes
●  Support for raster charts: No
●  OneHelm Compatibility: No
●  ClearVü: built-in 260/455/800/1000/1200 kHz
●  Tracks: 50 saved tracks
●  Wireless control: No
●  Supports compatible FUSION-Link™ radios: Yes
●  Galileo: Yes
●  LiveScope: Yes
●  Power output: 500 W
●  12-pin transducer ports: 1
●  BlueChart (coast): No
●  Traditional sonar (beam/dual frequency): Integrated (CHIRP 1 channel, 50/77/83/200 kHz, CHIRP L, M and H)
●  GRID (Garmin Remote Input Device) Compatible: No

●  ECHOMAP UHD2 (device varies depending on selection)
●  GT54-TM Transducer
●  Power cord
●  Tilt/Swivel mount with quick release clamp bracket
●  Protection cover
●  Mounting components
●  Documentation
