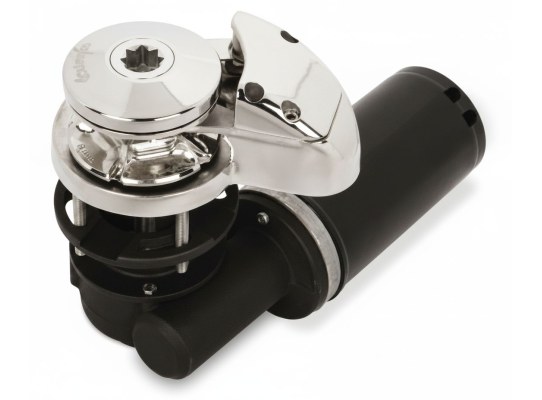

Vertical axis windlass entirely in AISI316 stainless steel.
Available in high or low profile versions with various motorisations, recommended for boats up to 14 m.
Equipped with a rope tension system and integrated meter counter.
| Reference | Motor - V | Motor - W | Average Consumption | Sprocket Ø | Line Ø | Max. pulling capacity | Workload | Line speed | Weight |
| 02.414.42 | 12 V | 1000 W | 115 A | 8 mm | 14 mm | 1020 kg | 130 kg | 25 m/min | 16,7 / 18,1 kg |
| 02.414.44 | 24 V | 1000 W | 60 A | 8 mm | 14 mm | 1060 kg | 140 kg | 25 m/min | 16,7 / 18,1 kg |
| 02.414.46 | 12 V | 1500 W | 115 A | 10 mm | 16 mm | 1250 kg | 150 kg | 26 m/min | 16,9 / 18,3 kg |
| 02.414.48 | 24 V | 1500 W | 60 A | 10 mm | 16 mm | 1290 kg | 160 kg | 26 m/min | 16,9 / 18,3 kg |
