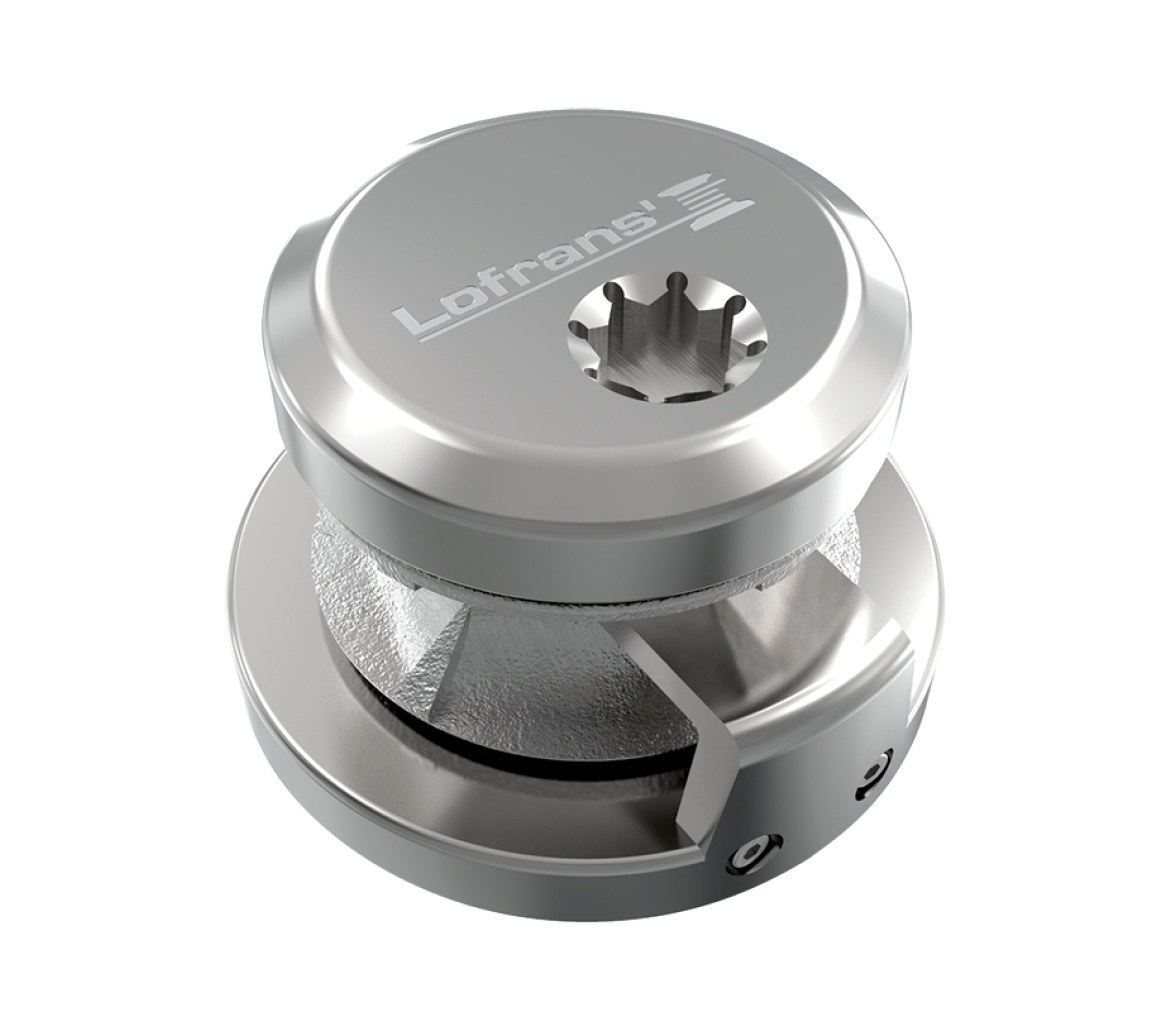

Main features
● Compact round base design
● Marine AISI 316L Stainless Steel construction
● Indepent Gypsy and drum operation
● Manual chain release
● Chain counter magnet pre-installed as standard
● IP67 rated heavy duty electric motor Low profile
● Anodised marine aluminium gearbox
| Construction | Stainless Steel | |
| Motor size | 500 W | 800 W |
| Power Supply (V) | 12 | 12 |
| Maximum Pull (kg) | 630 | 700 |
| Working load (kg) | 95 | 100 |
| Amps at Working Load (A) | 75 | 80 |
| Line Speed at Working Load (m/min) | 23 | 25 |
| Max Line Speed (m/min) | 26 | 28 |
| Net Weight Low Profile (kg) | 11 | 13 |
| Net Weight with Drum (kg) | 12 | 14 |
| Circuit Breaker (available separately) | 636087 | 636088 |
| Control Box | Included in package | |
| SX1 |  |
Code | Code |
| Low Profile |
6mm, ISO 4565 / DIN 766 |
636279 | 636281 |
| 8mm, ISO 4565 / DIN 766 |
* | 636280 |
*Non-standard configuration optional gypsies can be supplied separately.
Please refer to compatible gypsies table.
