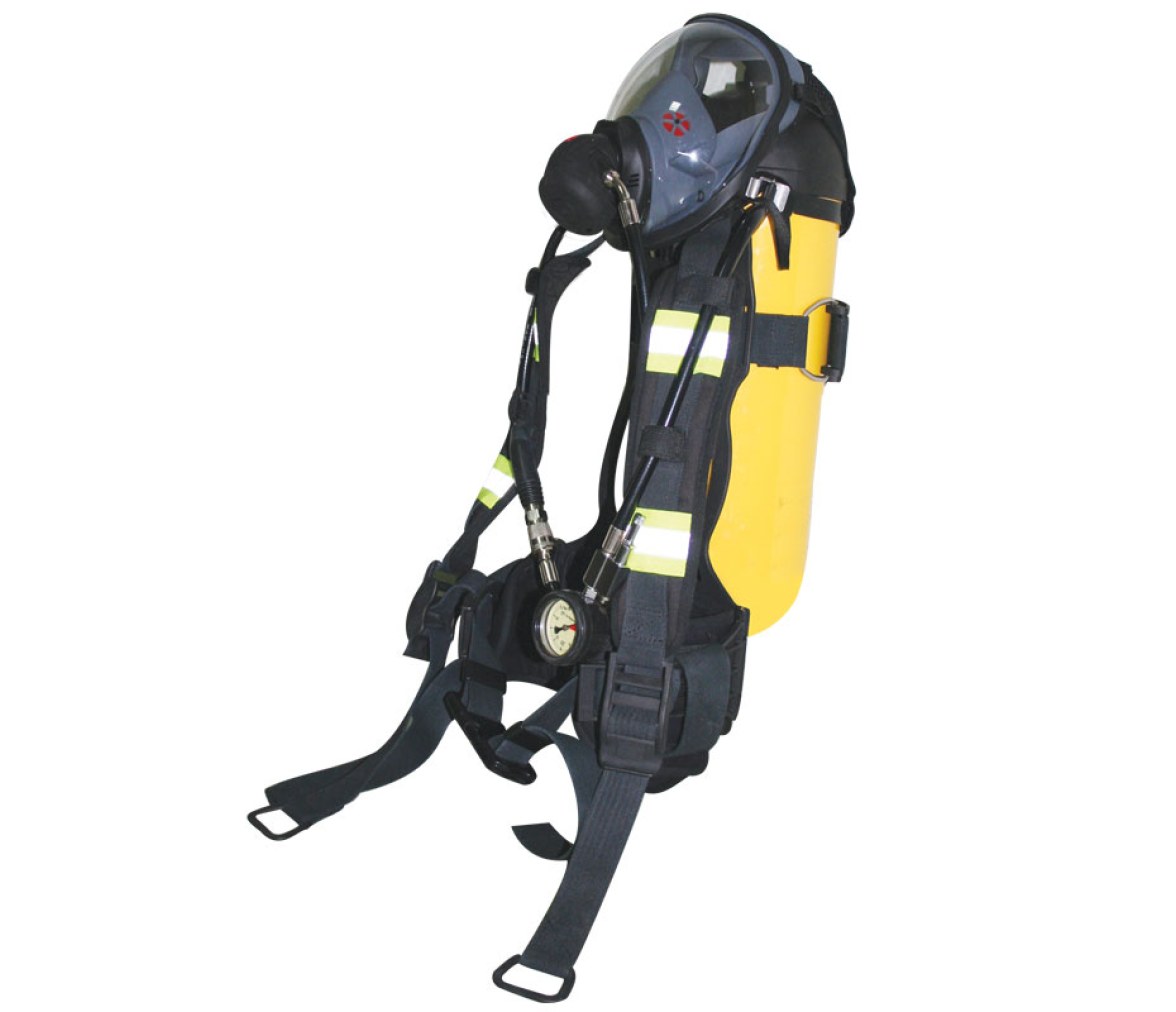

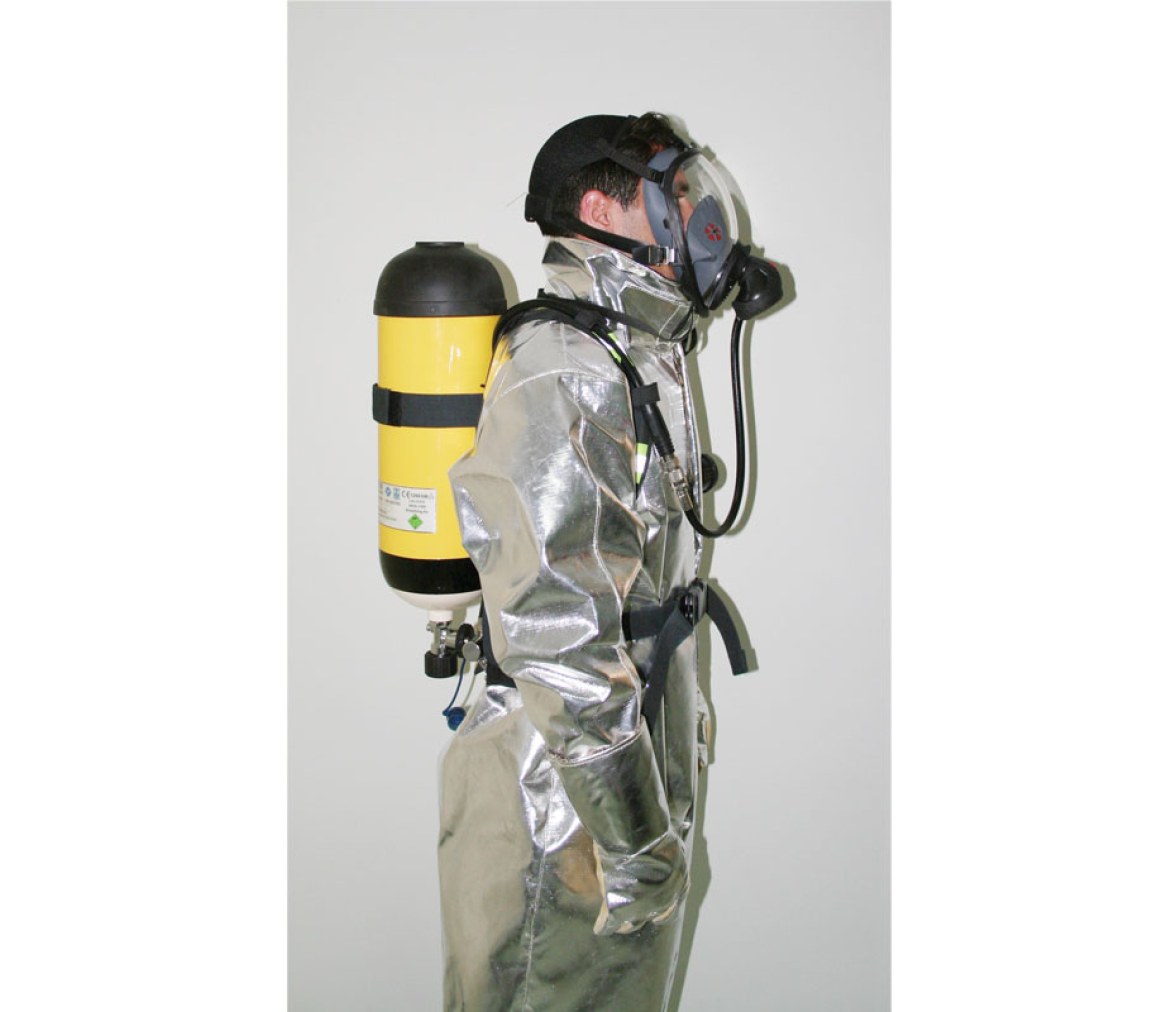

LALIZAS Self Contained Breathing Apparatus (SCBA) is a high-performance breathing apparatus, designed to offer maximum respiratory protection to the user during entrance or escape from a hazardous environment.
This SOLAS/MED-MER approved SCBA offers reliability and comfort and its key features are:
- Open circuit: on demand positive pressure Self Contained Breathing Apparatus
- Anatomic back frame: carbon fibers composite material back frame with harness for perfect and easy donning
- Flame retardant: both back frame and harness are flame retardant, waterproof and antistatic
- Manometer and whistle: with manometer and whistle (>90Db) warning the user that the air is dropping down below 50bar
It is available in two versions:
- 6L cylinder: with a 6L cylinder (steel) - code 71327
- 9L cylinder: with a 9L cylinder (carbon composite) - code 71328

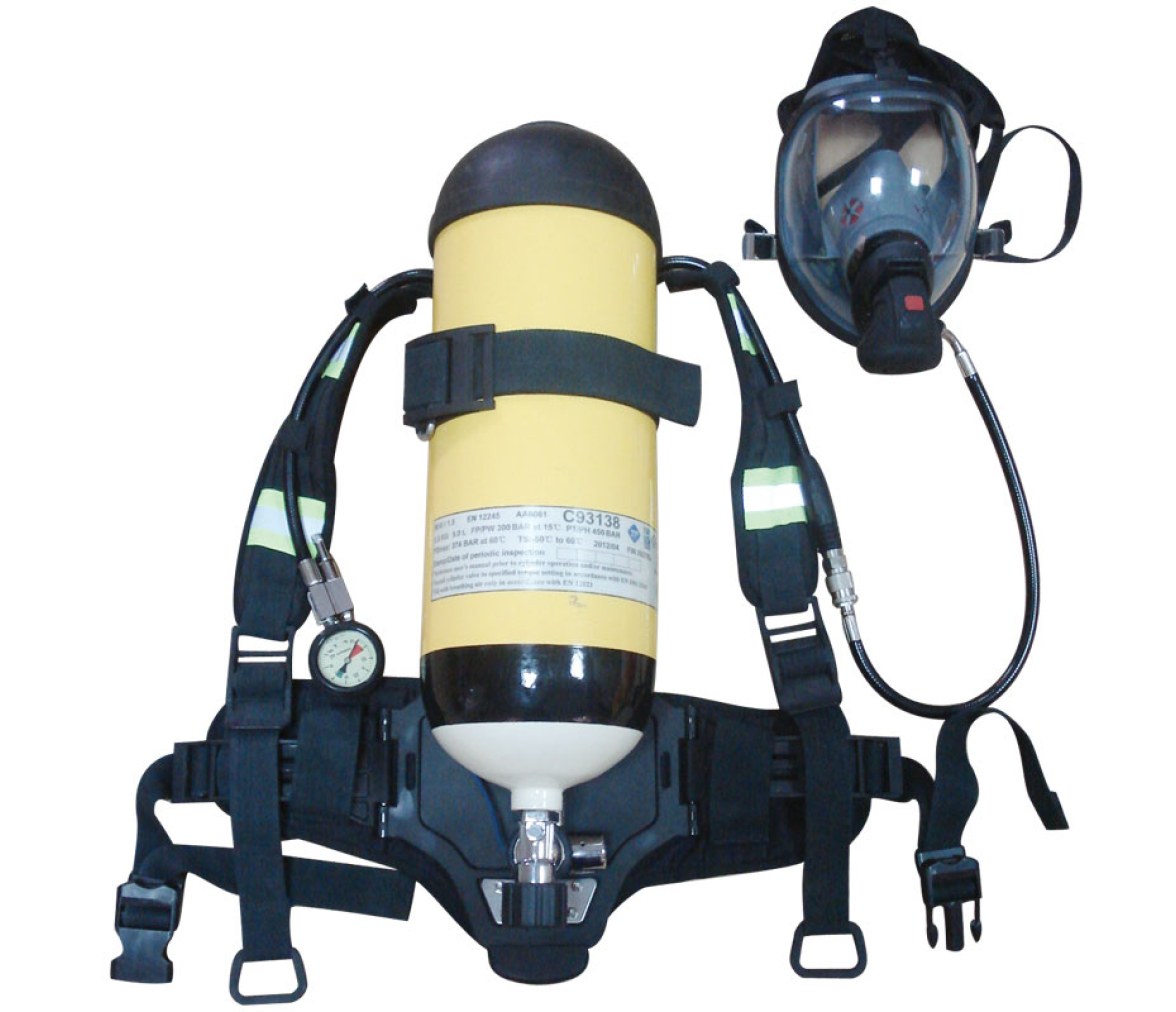

Both versions contain the following parts:
- Carrier with harness: breathing apparatus carrier with harness
- Pressure regulator: pressure regulator with manometer & whistle
- Pressure & air flow regulator: pressure & air flow regulator
- Facemask: breathing apparatus facemask
- Compressed air cylinder: compressed air cylinder with an EU standard cylinder valve with G5/8’’ thread
The SCBA is also available without cylinder - code 713271.
Will accept wide range of 300 bar cylinders. The air cylinders shall be designed in accordance with national regulations, bearing an EU standard cylinder valve with G5/8’’ thread. Please refer to user instructions for further information.
All the above products are supplied packed in a heavy-duty plastic carrying case.
Portable radio sets (ATEX or IECEX) can be supplied with the SCBA upon request.
Worldwide spare parts availability through these network.
*Impa Code 330416, 330421, 330423, 330425
Code: 71327 — Cylinder: 6 — Volume (L): 6 — Cylinder Material: Steel — Working Pressure (Bar): 300 — Warning Pressure (Bar): 50-60 — Weight (kg): ≤15 — Packing Dimensions (cm): 270 x 490 x 755 — Approval: SOLAS/MED-MER
Code: 713271 — Cylinder: Will accept wide range of 300 bar cylinders. The air cylinders shall be designed in accordance with national regulations, bearing an EU standard cylinder valve with G5/8’’ thread. Please refer to user instructions for further information. — Volume (L): N/A — Packing Dimensions (cm): 270 x 490 x 755 — Approval: SOLAS/MED
Code: 71328 — Cylinder: 9 — Volume (L): 9 — Cylinder Material: Carbon Composite — Working Pressure (Bar): 300 — Warning Pressure (Bar): 50-60 — Weight (kg): ≤12 — Packing Dimensions (cm): 280 x 445 x 735 — Approval: SOLAS/MED-MER
