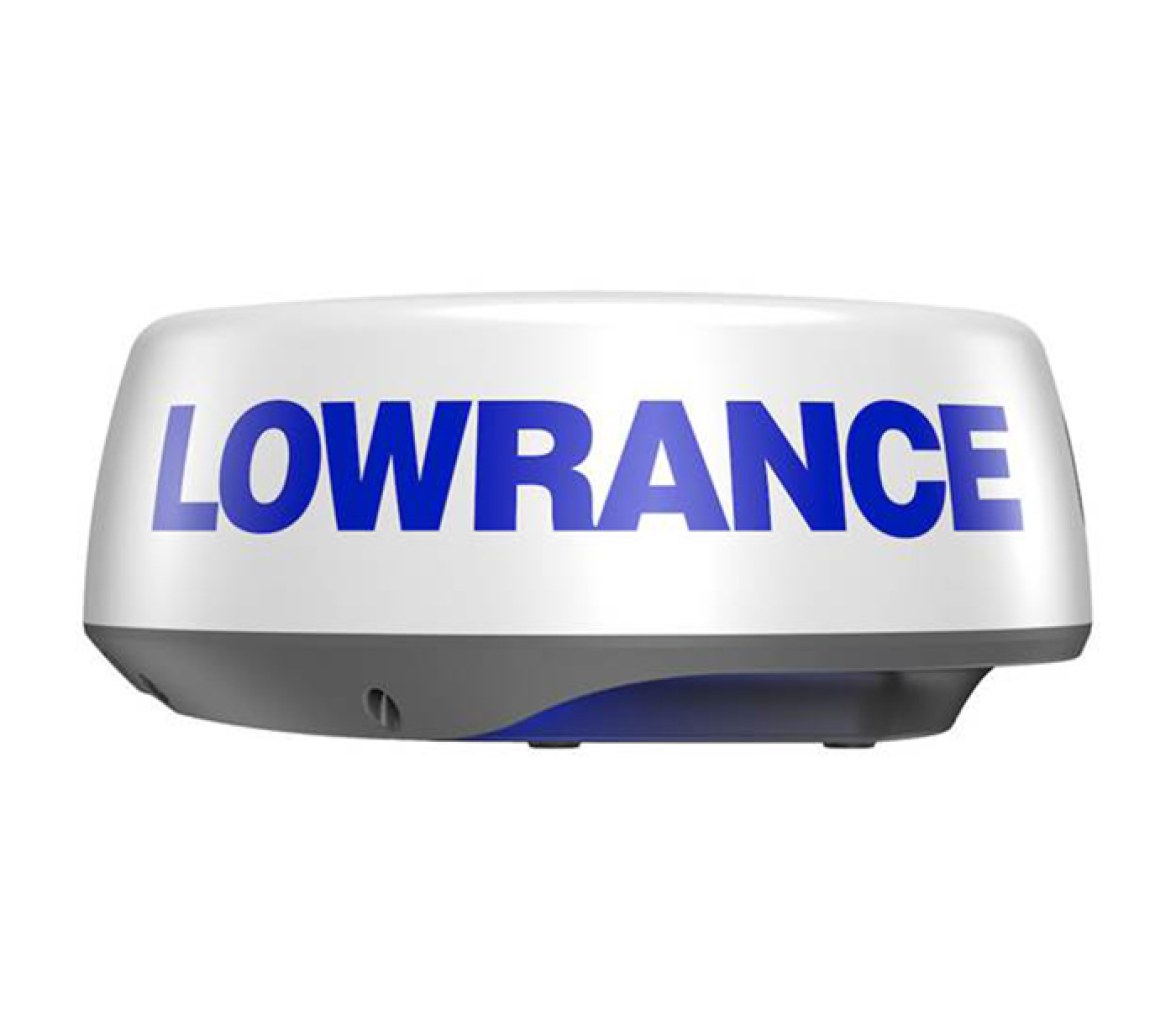

Lowrance Radar HALO20+

Ref.: 000-14542-001
● Detection both near and far with the compact dome antenna. ● Short, medium and long range dete...
2.364,00€

Buy now and receive it between Friday 31 of January and Tuesday 4 of February.

* Except the products on request that depend on the receipt of the same.

● Detection both near and far with the compact dome antenna.

● Short, medium and long range detection of excellent quality.

● The final view to avoid collisions.

● Offers a full scan of 360 degrees per second thanks to its rotation at 60 rpm

● Integrated VelocityTrack ™ doppler technology.

● Automatically check all targets within range

● Easy to use

Characteristics

● 36 nm range from a 61 cm (20 in.) Dome antenna

● Advanced pulse compression technology with beam focus

● Simultaneous operation in two scopes thanks to the Dual Range function that allows you to see both near and far

● Ultrafast operation at 60 rpm in ranges of up to 1.5 nm

● VelocityTrack ™ doppler technology to avoid collisions

● Simple operation thanks to the different modes for port, high seas, weather and birds

● MARPA target tracking (up to 10 goals, 20 with Dual Range)

● Ready instantly from standby mode



Specifications

● Supply voltage 10.5 - 31.2 VDC (12 / 24V systems)

● Maximum wind speed 100 knots (51 m / s)

● Typical power consumption 20W

● Warranty Period 2 Years

● Maximum power consumption 29W

● Maximum reach, 36NM scale

● Spinning speed Up to 60 RPM

● Operating temperature range -25 ° to + 55 ° C (-13 ° to + 130 ° F)

● Beam width 4.9 ° H x 25 ° V

● Weight 5.9 kg (13 lbs) without cable

● Minimum range, scale 50 m / 200 ft / 50 yd

● Diameter 510 mm (20 ")

● Dimensions W x H x D 510 mm dia x 223 mm H. (20 "dia x 8.8" H)

● Recommended capacity of 5A fuses

● Humidity 95% RH at 35 ° C (95 ° F)

● Compliance with FCC approval, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5 / EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2.9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety

● Radar modes Harbor, Offshore, Weather, North Up, Course Up, Relative motion, True Motion

● IPX6 waterproof grade

● Pulse Compression radar technology

● Simrad MFD interface
