Garmin GPSmap Chartplotter Sonar 922xs without Transducer

Ref.: 010-01739-02

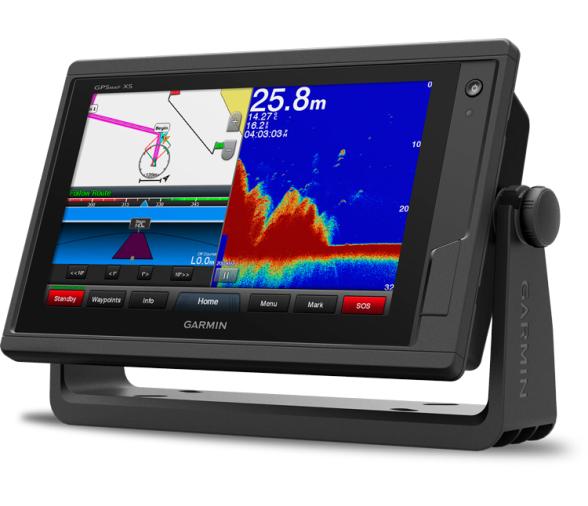

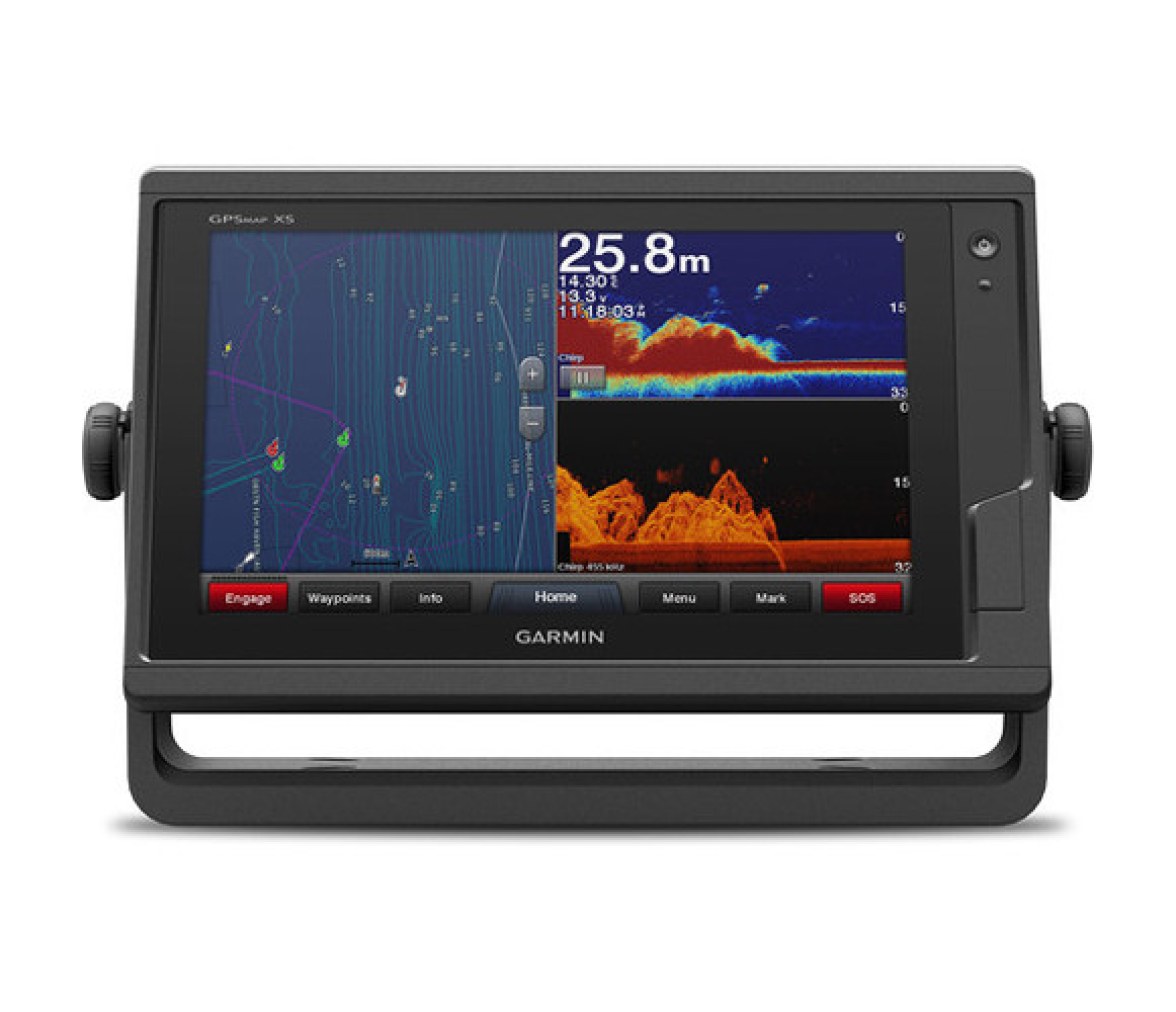

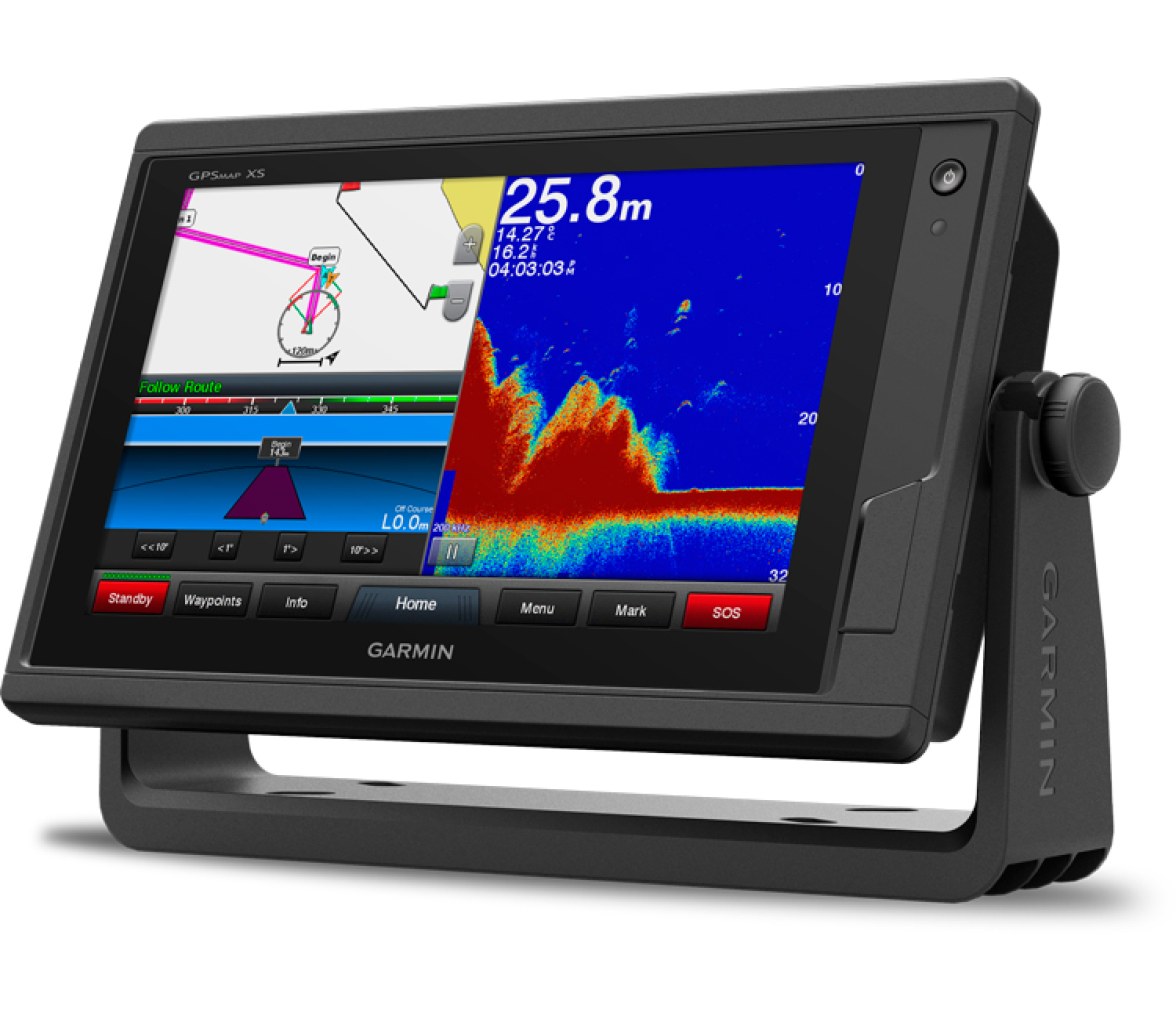

● Enjoy an advanced navigation solution thanks to the compact 9-inch combined GPSMAP 922xs touchs...
antes: 1.439,10€
1.346,00€

Buy now and receive it between Friday 3 of May and Monday 6 of May.

* Except the products on request that depend on the receipt of the same.

This sale ends in: days h:m:s
0
Descuentos al comprar también estos productos
Garmin Cartografía Bluechart G3 Tamaño RegularGarmin Cartografía Bluechart G3 Tamaño Regular
Model:
105,00€129,00€

● Enjoy an advanced navigation solution thanks to the compact 9-inch combined GPSMAP 922xs touchscreen solution. It includes wireless connectivity features for Garmin mobile applications, NMEA 2000 compatibility and Garmin radar network features and Panoptix, the probe that sees it all, and Panoptix FrontVü collision prevention probe. It also features integrated Garmin CHIRP and CHIRP ClearVü probe (the transducer is sold separately)

General description

● Being fully compatible with networking, you can add more features to your boat. Support for the Garmin Network allows sharing of probe data, including the Panoptix probe, maps, user data, Garmin radar and IP cameras among other units. In addition, it has connectivity to the NMEA 2000 network and NMEA 0183, including autopilots, digital switching, weather information, FUSION-Link, VHF, AIS and other sensors.

● Enjoy integrated Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm lets you view and control your compatible plotter from a compatible smartphone or tablet while providing navigators with improved situational awareness. With BlueChart Mobile, a free app that you can download from the App Store, you can get reliable weather information as well as plan nautical routes on the iPad or iPhone and transfer them wirelessly to the compatible Garmin chartplotter connected to the network. You can even play and control a VIRB action camera from the plotter.

● Enjoy integrated ANT wireless connectivity with the Quatix Nautical Watch, Garmin Nautix Projected Screen System, gWind Wireless 2 Transducer, GNX Wind Nautical Instrument and Wireless Remote Controls.

● You have access to certain fantastic probe functions that you can use directly; You just have to incorporate transducers. Supplied with 1 kW CHIRP probe and integrated Garmin CHIRP ClearVü scan probe. It even supports Panoptix, the probe that sees it all, Garmin premium probe modules and a wide variety of transducers sold separately).

● The combined network solutions can share the internal probe with any other device in the network. You can also choose the information that is superimposed on the probe display, for example, radar data, time of day or GPS speed.

● The fast and responsive 10 Hz integrated GPS and GLONASS receiver updates the position and heading 10 times per second to make the movement on the screen more fluid. Marking up to 5,000 waypoints with great precision, and finding the way back to them, is simple and fast.

● Includes expandable memory for extra map purchases such as BlueChart g2 Vision HD, which includes Garmin's patented Auto Route technology and other great features.

● Instantly create HD fishing maps on screen with 0.3m contours. Adjust them to suit your needs. The maps are yours. Save the data for yourself or share it with the Quickdraw community on Garmin Connect

● To help you optimize wind action in order to gain a greater competitive advantage, the chartplotter features a pre-race indication page that shows your virtual output line as well as data fields including laylines, available time Before you begin and a timer that can sync with all of your Garmin GPS products networked. In addition, other compatible navigation features include improved wind rose, GPS heading and heading lines, steering and drifting, real and apparent wind data and more.

● If you have waypoints, tracks or routes that you frequently use stored in a GPS product from another manufacturer or a Garmin handheld device, it is now very easy to transfer these elements to your new Garmin chartplotter thanks to GPX, the industry standard software format.

Specifications

Physical and performance

Screen Size (Width / Height): 19.6 x 11.4 cm (9 ")
Display resolution (Wide / High): 1024 x 600 pixels
Unit Dimensions (Width / Height / Depth): 25.6 x 16.2 x 5.2 cm
Receiver: High sensitivity of 10 Hz
Water resistance: IPX7
Weight: 1.0 kg

Mounting Options: Surface Mount, Flush or Flush Mount
Display Type: WVGA multitouch display
Antenna: Internal or external through NMEA 2000

Maps and navigation

Maps preinstalled: None
Supports data cards: 2 microSD cards
Routes: 100
Tracks: 50,000 points; 50 tracks saved

Features

ClearVü: Yes, with CHIRP (integrated)
Waypoints: 5,000

Transmission power: 1 kW traditional; 1 kW CHIRP of a channel
Compatible with NMEA 0183: Yes
SideVü: Yes (with external black box)

Compatible with double beam probe: Yes
Amite DSC (sends position data to DSC compatible VHF): Yes
Additional Features:
-User interface: multi-touch screen
-Reduction of brightness of the automatic backlight: yes
-Compatibility with VIRB
-Compatibility with wearables through ANT
-Compatibility with gWind Wireless 2
Compatible with NMEA 2000: Yes

Compatible with BlueChart Mobile: Yes
Probe recording: Yes
Ports Garmin Marine Network: 1

Garmin probe compatible: Yes
GSD Black Box: Yes
Probe history rewind function: Yes
Garmin SmartMode: Yes
Garmin Helm compatible: Yes
Maximum depth: 600 m in salt water (maximum depth depends on the type of background and other water conditions)

Dual frequency probe compatible: Yes
XM WX Weather & Radio for USA: Yes
CHIRP Technology: Yes (Built-in)
Wireless Connectivity: Yes
Water temperature graph and log: Yes
Compatible with GCV scanning probe module: Yes
Wireless mouse compatible: No
Input Ports NMEA 0183: 1 (Differential)

Supports AIS (tracks position of target ships): Yes
Video Output Ports: None
Garmin Meteor Audio System compatible: Yes
Wireless Controller: Yes
Compatible with Radios and Fusion Lync: Yes
Transducer pin numbers: 8
Lock in the background (shows the signals returning from the bottom to the surface): Yes
Output Ports NMEA 0183: 1 (Differential)

Frequency: 50/77/200 kHz, CHIRP (low, medium and high frequencies), DownVü
Tide prediction: Yes
Energy consumption:
- Maximum electric consumption at 10 V DC: 27 W

- Typical current consumption at 12 V DC: 1.3 A

-Consumption of maximum current at 12 V DC: 2.3 A

Voltage range: 10-32 VDC input
GRID: Yes
Video input ports: 1 BNC
Garmin compatible: Yes

Box includes

● Plotter GPSMAP 922xs
● Power cord
● Surface mount kit with wheels
● Flush mounting kit with gasket
● Protective cover
● Pressing casings of embellishing piece
● Documentation
