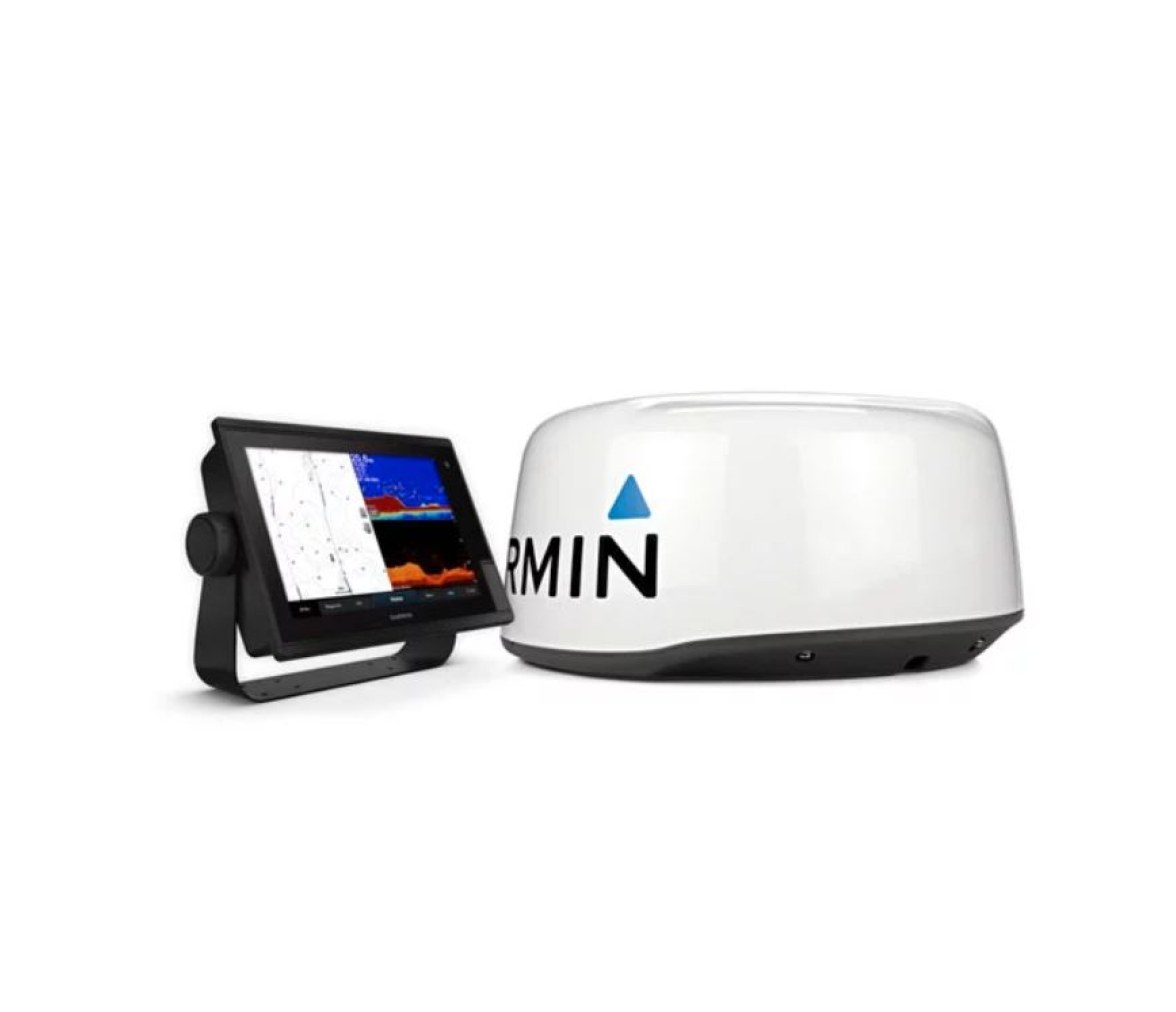

Garmin GPSMAP 1222xs Plus y Pack Radar GMR 18 HD+

Ref.: 010-02322-50
Advanced navigation with full integration Plotters / probe with touch screen for perfect control ...
4.049,00€

Buy now and receive it between Thursday 19 of December and Tuesday 24 of December.

* Except the products on request that depend on the receipt of the same.

Advanced navigation with full integration Plotters / probe with touch screen for perfect control and integration into the nautical system of your boat. The new plotter / probe is compatible with BlueChart g3 and g3 Vision nautical charts with AutoRuta and information from Garmin and Navionics.
Share maps, data, radars and images of IP cameras on other compatible devices thanks to connectivity with Garmin Marine Network. With the NMEA 2000and NMEA 0183 networks you can connect autopilots, digital switching, weather information, multimedia, VHF, AIS and other sensors. They also have ANT technology to connect compatible Garmin devices such as Quatix nautical watches, remote controls and much more. For sailing, it integrates Garmin SailAssist, including racing functions, position and drift, wind data and more. All models integrate Wi Fi connection so you can access the free ActiveCaptain application with the On eChart function to download and buy new cartographies, smart notifications, software updates, access the Garmin community of QuickDraw Contours and much more.



Features

● ADVANCED NAVIGATION. DEFINITIVE INTEGRATION

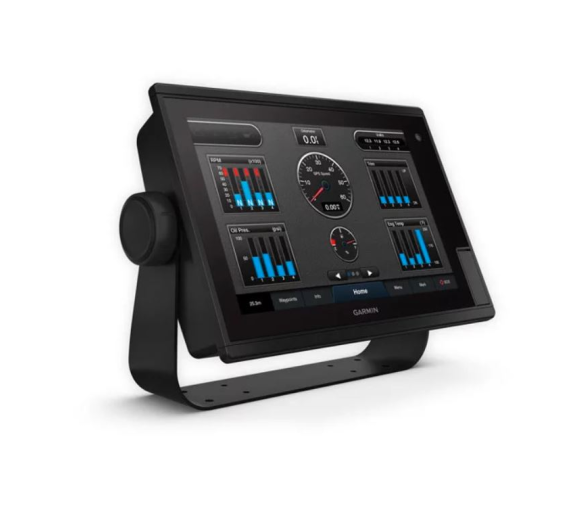

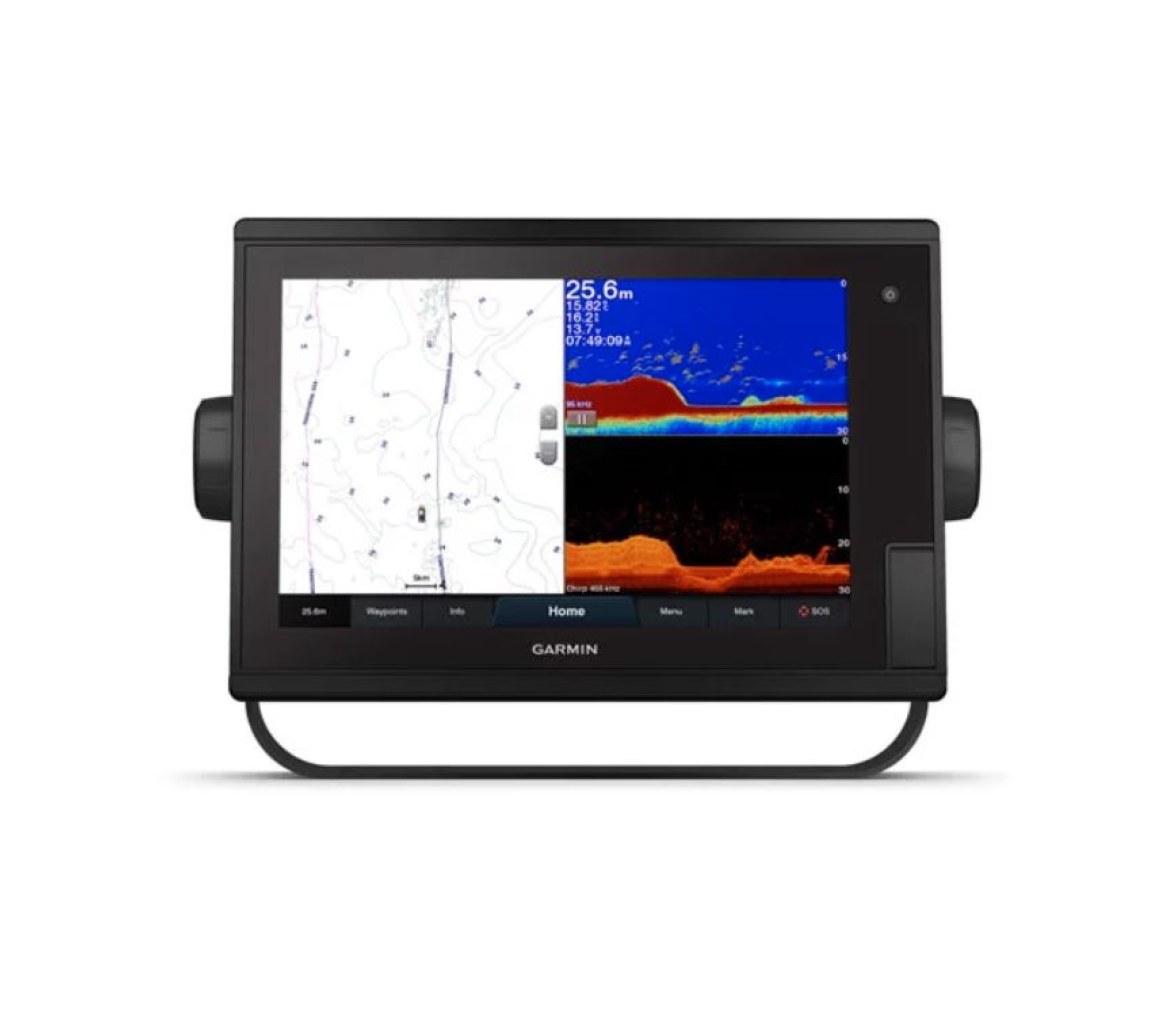

This plotter with 12” touch screen intuitive, bright and readable in sunlight, and improved mapping is easy to use in any environment and integrates perfectly with your Garmin nautical system.

● DISPLAY
Multitouch screens with high feedback, visible in the sunlight of 7 ”, 9” or 12 ”and tactile for easy handling wherever you are.

● INTEGRATED PROBE

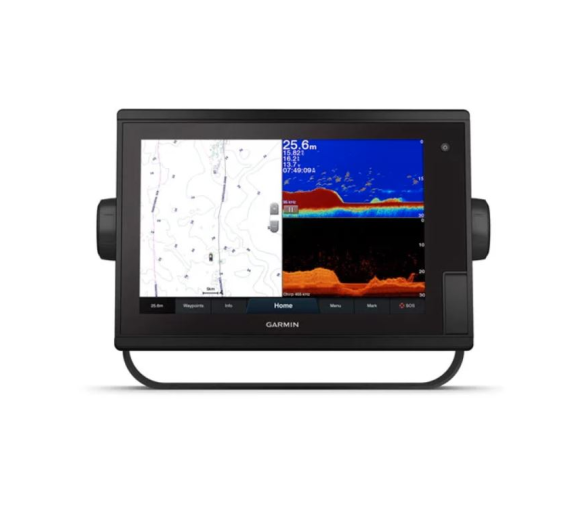

The “xs” and “xsv” models provide 1Kw CHIRP with a single integrated channel and ClearVü ClearVü probes. The “xsv” models also include SideVü with almost photographic view of each side of the boat.

● PANOPTIX PROBE
Compatible with Panoptix probes. The probe that sees everything, including the Panoptix LiveScope probe system.

● MOUNT YOUR OWN SYSTEM

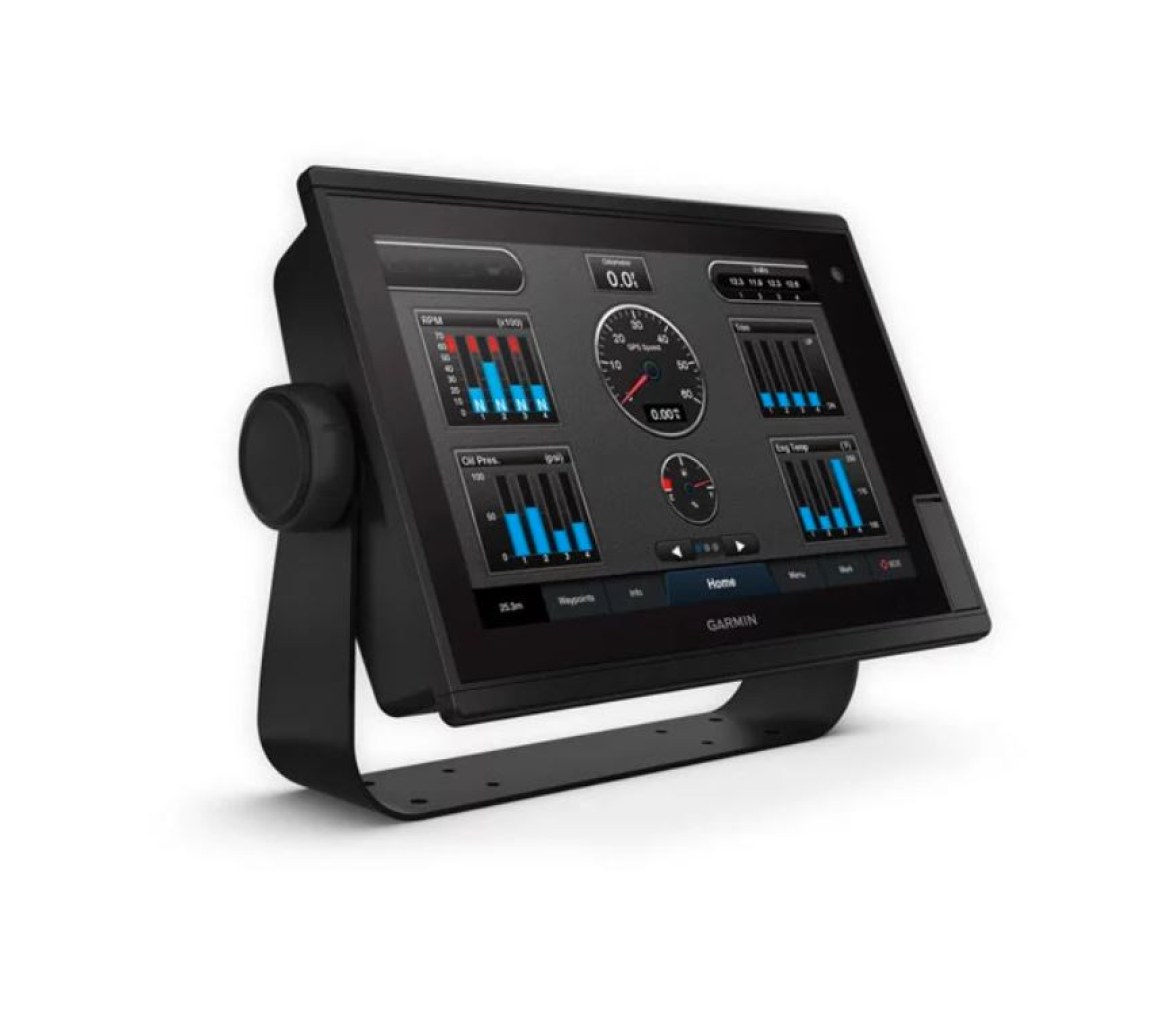

Thanks to the J1939 nautical network you can integrate the motors and sensors into your nautical system in a simple way.

● COMPATIBLE WITH THIRD PARTIES
Thanks to the exclusive OneHelm function you can integrate EmpirBus digital communication and other third-party systems. OneHelm brings together all the operations and functions offered by related sectors in a simple and convenient control center from the screen of your GPSMAP Plus.

● LOAD FASTER LETTERS
The 7 ”and 9” models offer a faster processor to display and work with nautical cartography.

● NAUTICAL SYSTEM
Easily connect your nautical system from probes and autopilots to cameras and multimedia Compatible with NMEA 2000 ®, NMEA 0183 and Garmin Marine Network

● CARTOGRAPHY
All versions integrate a world nautical base map and are compatible with the BlueChart g3 and g3 Vision nautical charts with AutoRuta 1. All cartographic information from Garmin and Navionics.

NAVIGATION
Integra Garmin SailAssist, including laylines, racing functions, position and drift, wind data and much

● ACTIVECAPTAIN APPLICATION
Access the free application ActiveCaptain for Smartphones and Tablets and manage your nautical experience from anywhere, allow access to your waypoints, routes display information of ports and the chart. With the OneChart function you can download and buy new cartographies.

● WIRELESS CONNECTIVITY
Integrates ANT technology for the connectivity of Quatix nautical watches, gWind Wireless 2 wind sensors and wireless remote controls including the GRID 20.

Specifications

● UNIT DIMENSIONS (WIDTH / HIGH / DEPTH): 33.0 x 22.6 x 7.9 cm
● DISPLAY SIZE (WIDTH / HIGH): 10.3 "x 6.4"; 12.1 "diagonal (26.2 cm x 16.3 cm; 30.7 cm diagonal)
● DISPLAY RESOLUTION (WIDTH / HIGH): 1280 x 800 pixels
● DISPLAY TYPE: WVGA screen
● WEIGHT: 2.6 kg
● WATER RESISTANCE CLASSIFICATION: IPX7
● POLARIZED SUPPORT: Yes
● J1939 COMPATIBLE: Yes
● POWER CONSUMPTION:

  • Maximum power consumption at 10 V DC: 34.8 W
  • Typical current consumption at 12 V DC: 2.2 A
  • Maximum current consumption at 12 V DC: 2.9 A

● ANTENNA: Internal or external through NMEA 2000
● MOUNTING OPTIONS: Surface or recessed
● RECEIVER: High sensitivity of 10 Hz
● GARMIN MARINE NETWORK PORTS: 2
● PRE-INSTALLED MAPS: World base map
● DATA CARDS: 2 SD ™ cards; 32 GB max
● WAYPOINTS: 5,000
● ROUTES: 100
● TRACKS: 50,000 points; 50 saved tracks
● TIDAL PREDICTION: Yes
● COMPATIBLE WITH RADAR GARMIN: Yes
● COMPATIBLE WITH GARMIN PROBE: Yes (integrated)
● COMPATIBLE WITH GARMIN SMARTMODE (CUSTOMIZED MONITOR DEFAULT SETTINGS): Yes
● ALLOWS AIS (TRACK THE POSITION OF THE TARGET BOATS): Yes
● ADMIT DSC (SEND THE POSITION DATA TO THE VHF COMPATIBLE WITH DSC): Yes
● ALLOWS COMPATIBLE FUSION-LINK RADIOS: Yes
● GSD BLACK BOX -LUOTAIMEN TUKI: Yes
● GCV BLACK BOX -LUOTAIMEN TUKI: Yes
● ACTIVECAPTAIN-YHTEENSOPIVA: Yes
● COMPATIBLE WITH GRID (GARMIN INPUT REMOTE DEVICE): Yes
● WIRELESS CONTROL: Yes
● NAVIGATION FUNCTIONS: Yes
● COMPATIBLE WITH DOUBLE FREQUENCY PROBE: Yes
● COMPATIBLE WITH DOUBLE BEAM PROBE: Yes
● SUPPORTED FREQUENCIES: Traditional: 50/77/83/200 kHz CHIRP (low, medium and high frequencies) ClearVü and SideVü (260/455/800 kHz) (depending on the transducer)
● TRANSMISSION POWER: 1 kW traditional; 1 kW CHIRP
● CHIRP TECHNOLOGY: Yes
● CLEARVÜ: Yes with CHIRP (integrated)
● SIDEVÜ: Yes with CHIRP (integrated)
● MAXIMUM DEPTH: 1524 m at 1 kW (The maximum depth depends on the type of bottom and other water conditions)
● LOCK ON THE FUND (SHOWS THE SIGNS THAT RETURN FROM THE FUND TO THE SURFACE): Yes
● GRAPHIC AND WATER TEMPERATURE RECORD: Yes
● PROBE RECORDING: Yes
● RETROCESS FUNCTION OF THE PROBE HISTORY: Yes
● COMPATIBLE WITH NMEA 2000: Yes

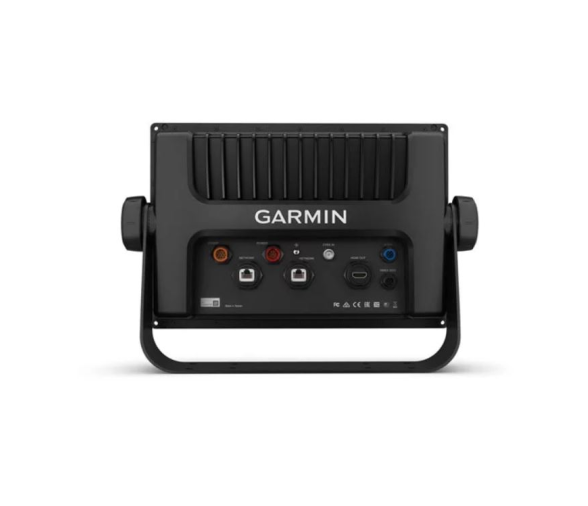

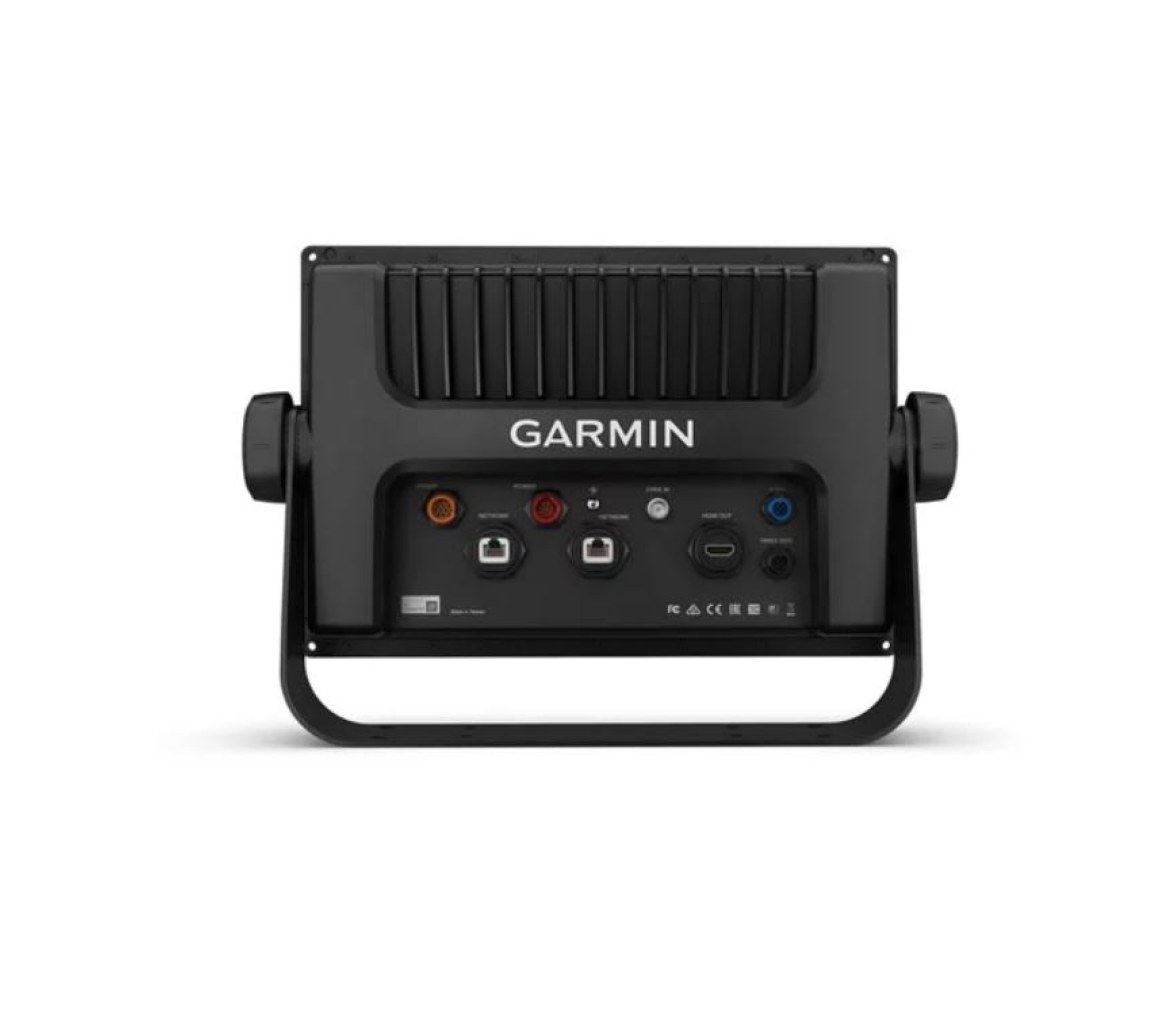

● TRANSDUCER PIN NUMBERS: 12 pins (orange)
● NMEA 0183: 1 INPUT PORTS
● NMEA 0183: 1 OUTPUT PORTS
● VIDEO INPUT PORTS: 1 BNC
● VIDEO OUTPUT PORTS - NONE: 1 HDMI
● WIRELESS CONNECTIVITY: Yes

RADAR
● UNIT DIMENSIONS (WIDTH / HIGH / DEPTH): 50.8 cm in diameter, 24.8 cm in height (20 "in diameter, 9.75" in height)
● WEIGHT: 17 lb (7.7 kg)
● WATER RESISTANCE CLASSIFICATION: IPX7
● POWER CONSUMPTION: Typical 30 W; max. 48 W
● ANTENNA LENGTH: 43.18 cm (17 ")
● SCOPE OF THE ANTENNA: 24 rpm
● TRANSMISSION POWER: 4 kw
● POWER INPUT: 11-35 V DC
● BEAM WIDTH: 5.2 ° horizontal, 25 ° vertical
● MAXIMUM SCALE: 36 nm
● MINIMUM SCALE: 20 meters
● RADAR TYPE: Closed antenna radar
● HIGH DEFINITION (SEPARATION OF IMPROVED OBJECTS): Yes
● MARPA OBJECTIVES TRACKING (TO AVOID COLLISIONS): Yes (requires a heading sensor, sold separately)
● WARNING AREA ALARM: Yes
● COLOR: 8 bits

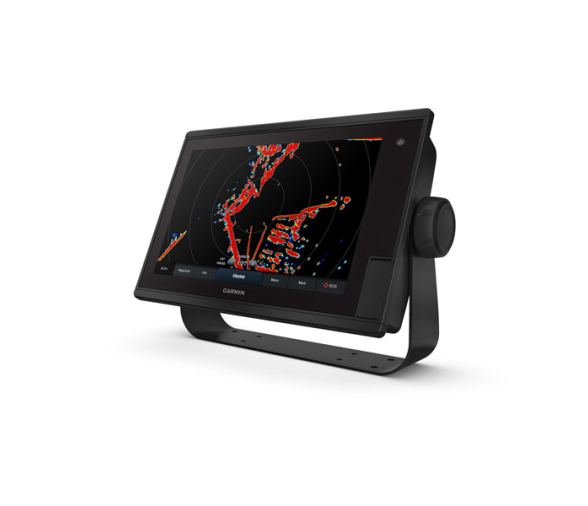

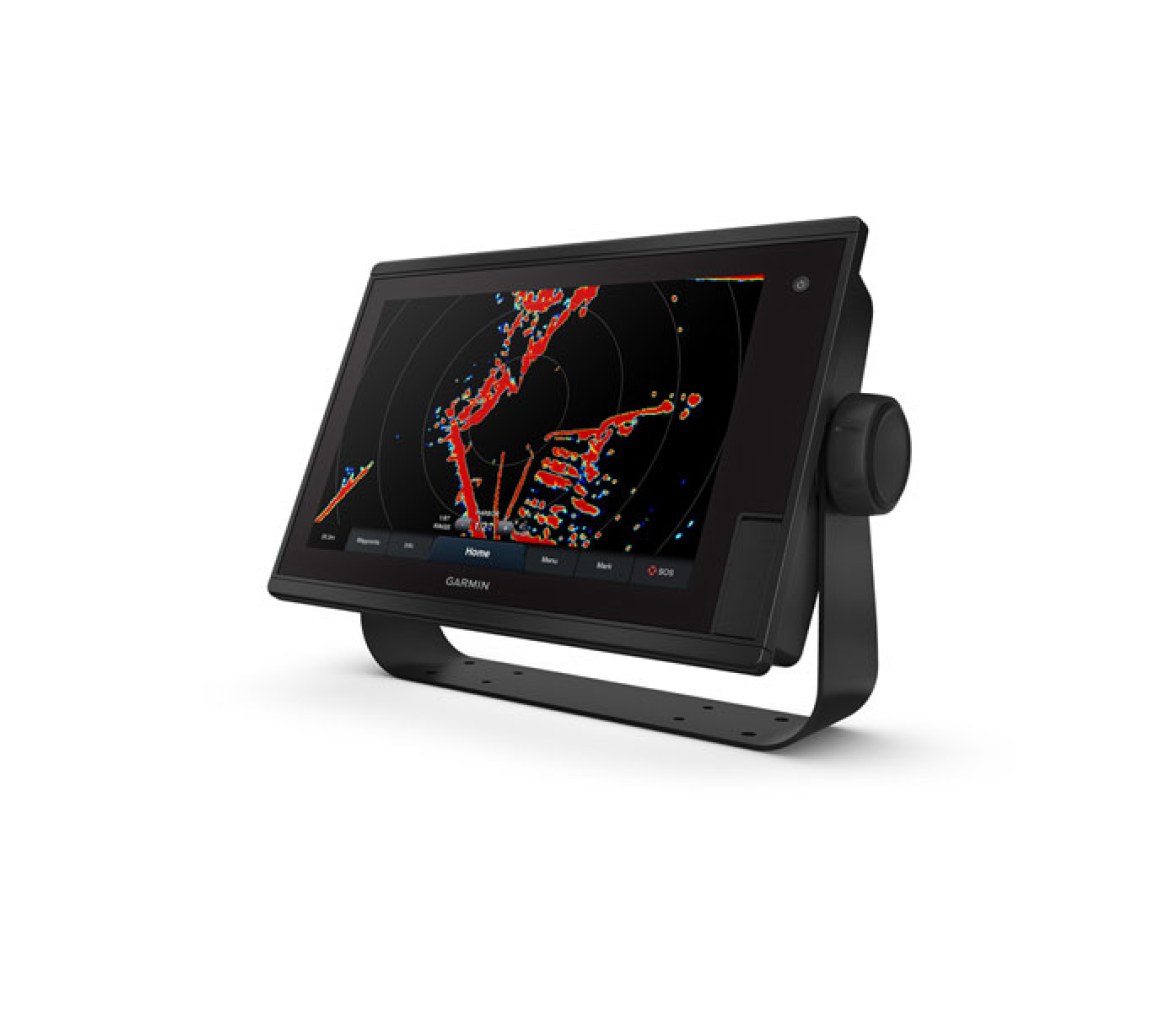

● RADAR OVERLAY SUPPORT: Yes

Includes

● GPSMAP plotter
● Power cable
● Adapter cable for 8-pin transducer to 12-pin probe
● Surface support with wheels
● Recessed mounting kit with gasket
● Protection cover
● Press covers of the trim piece
● Documentation

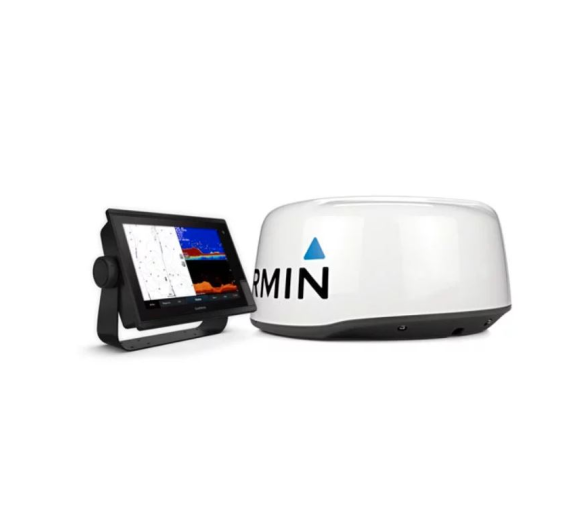

● GMR 18 HD + closed antenna radar
● Assembly component kit
● Power cable (15 m)
● Network cable (15 m)
● Installation instructions
● Mounting template
