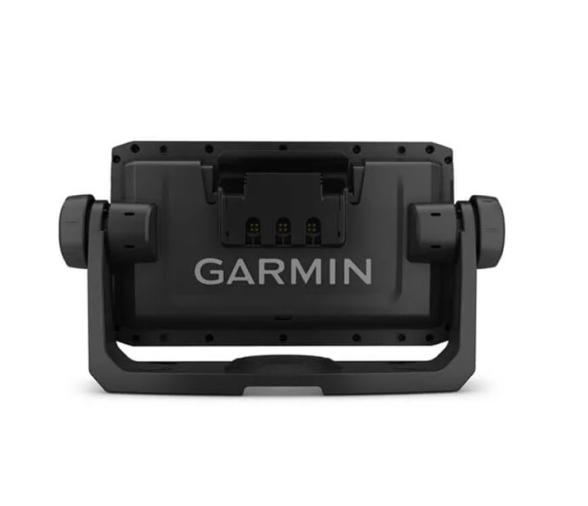

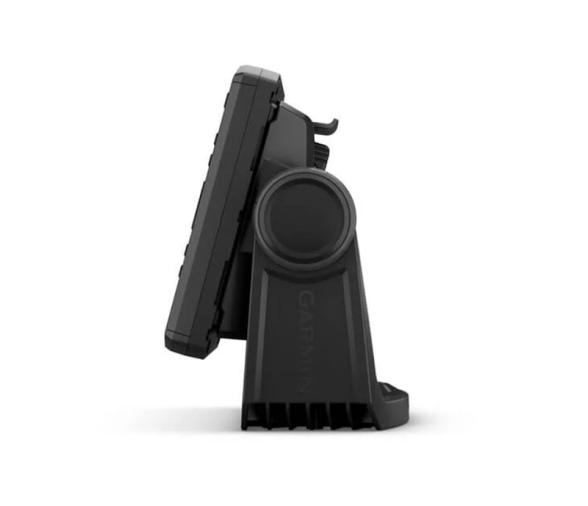

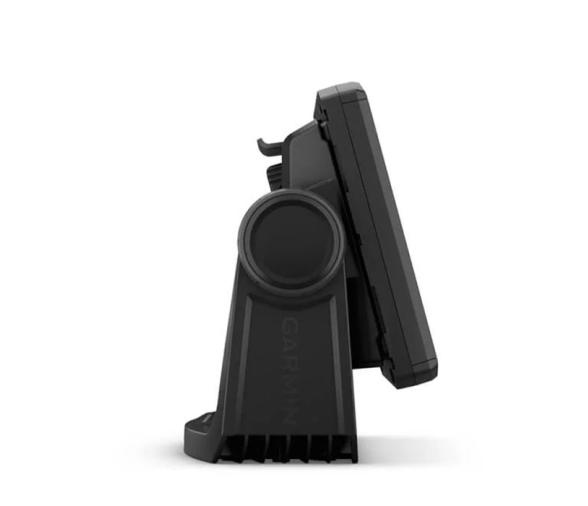

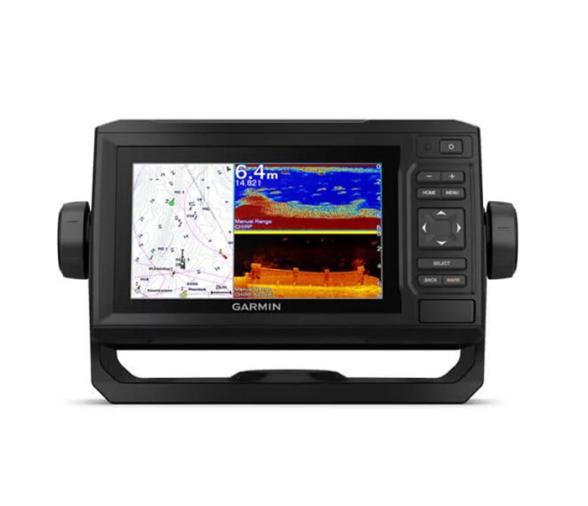

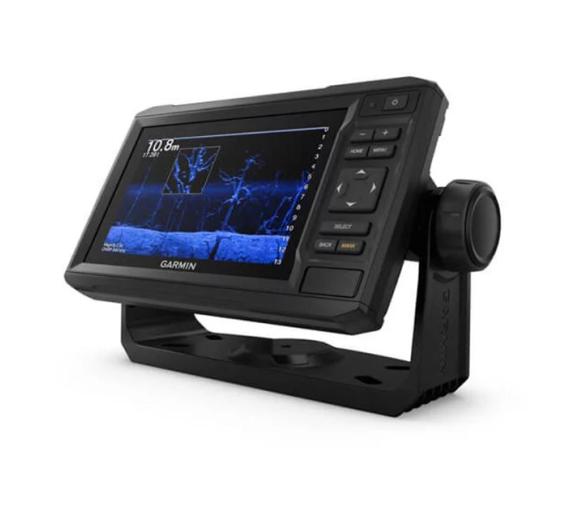

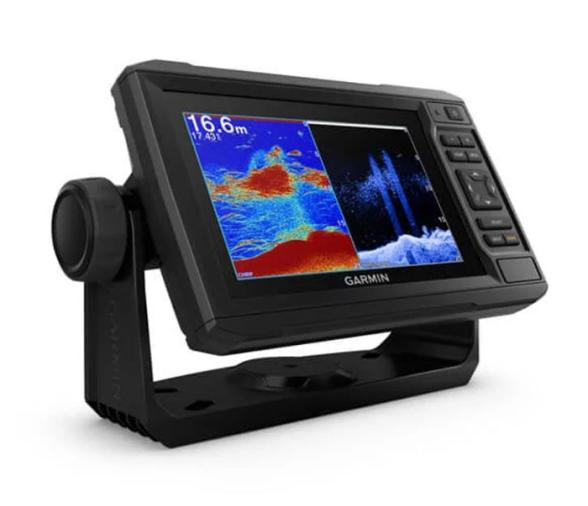

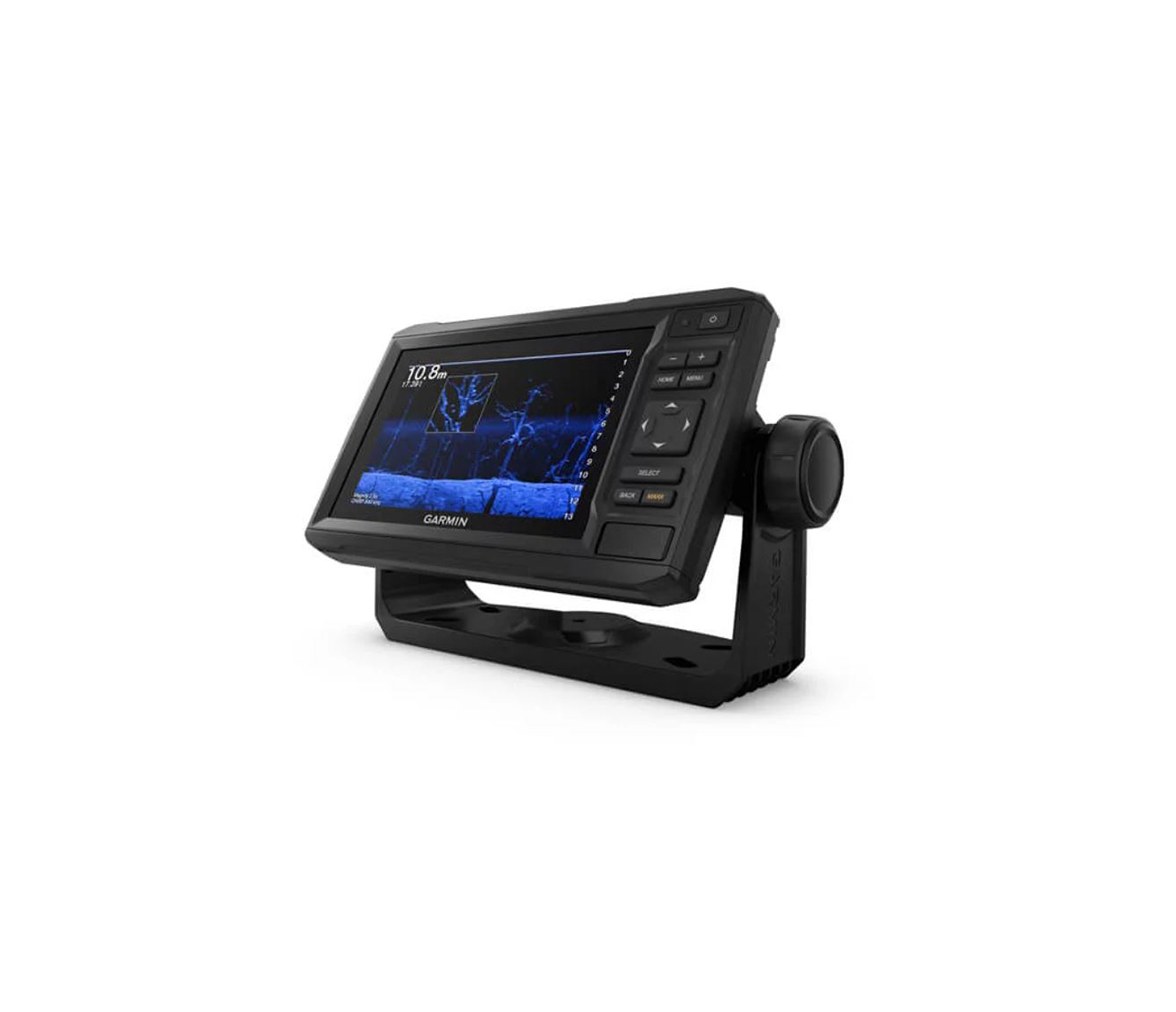

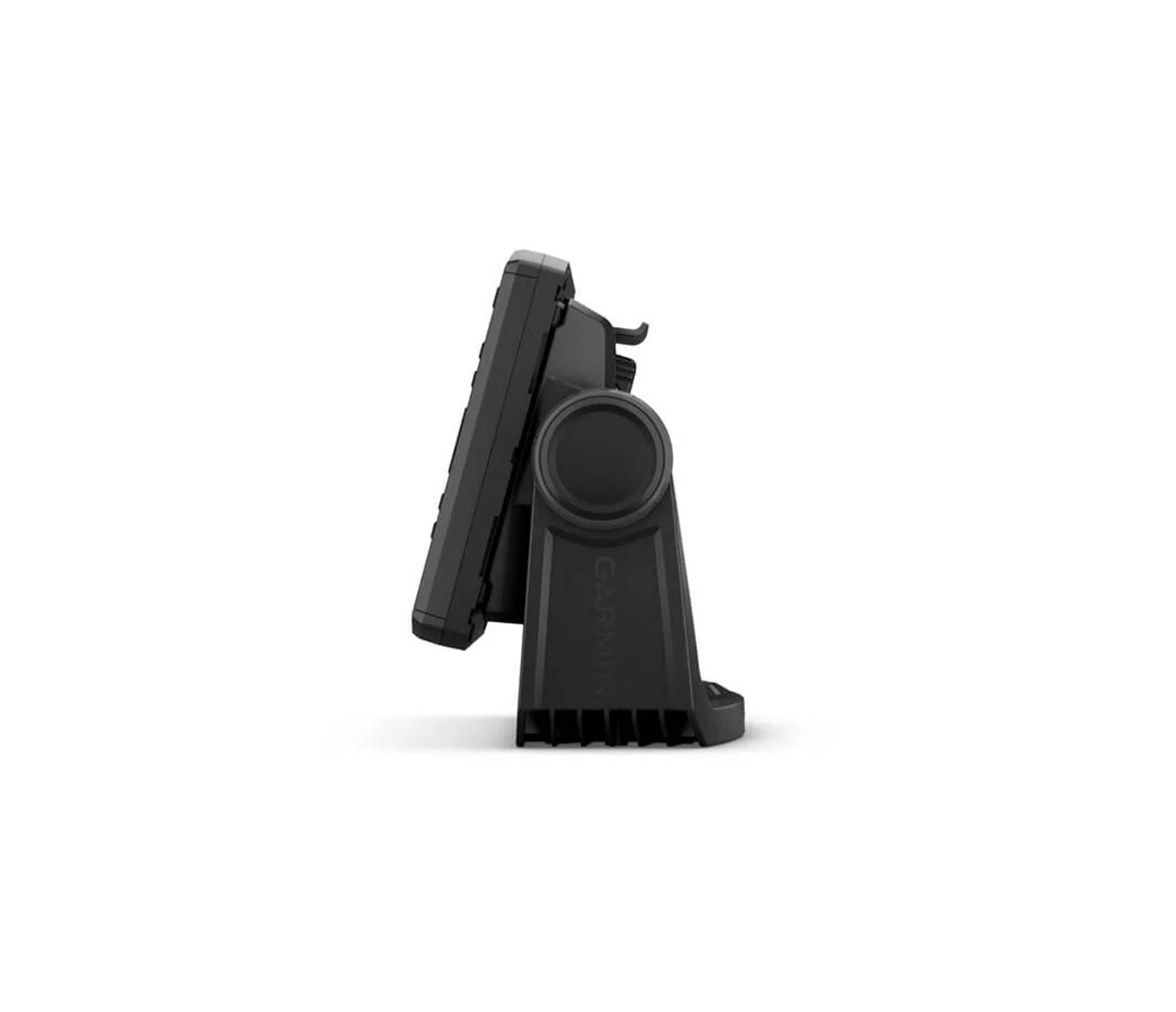

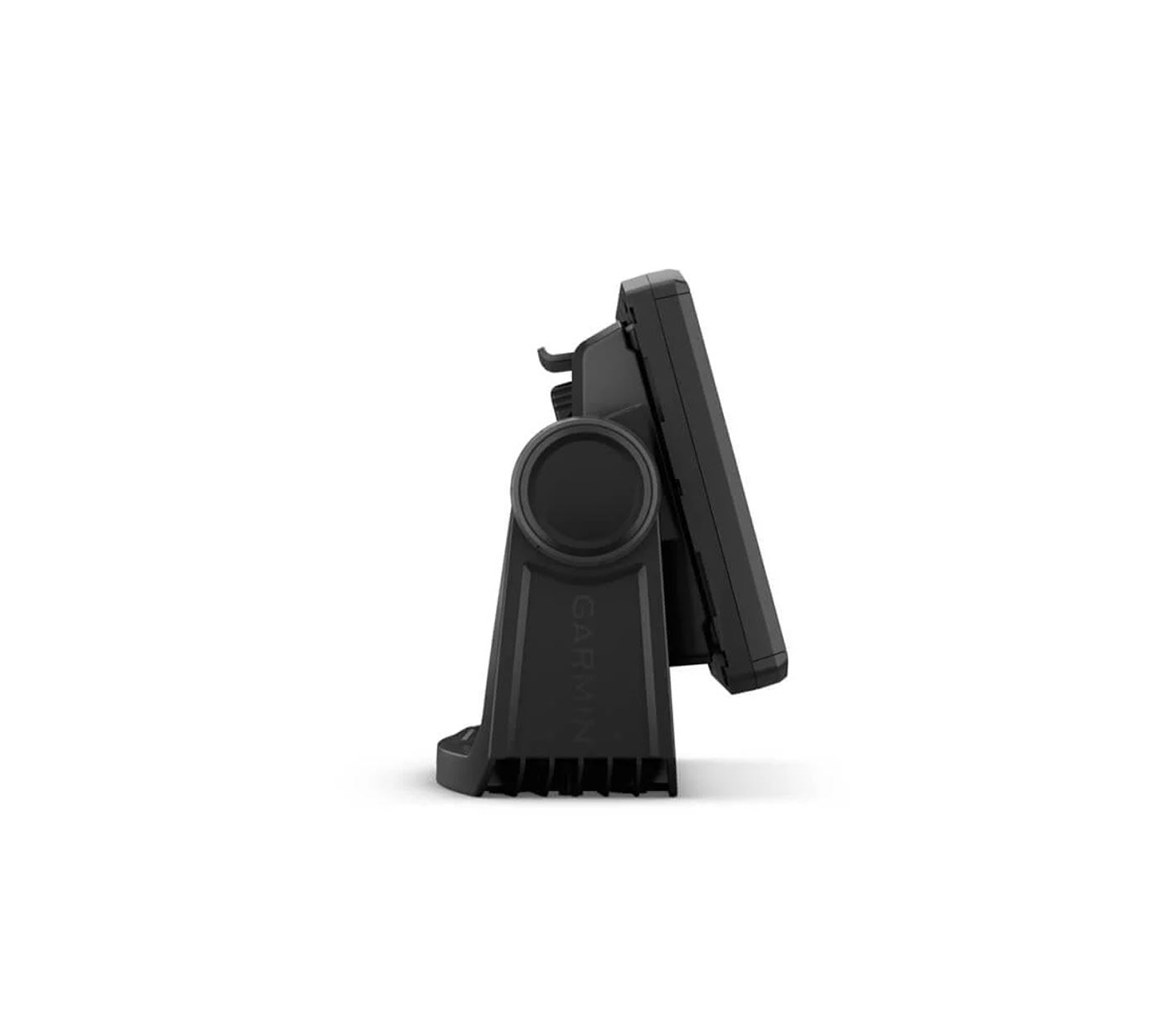

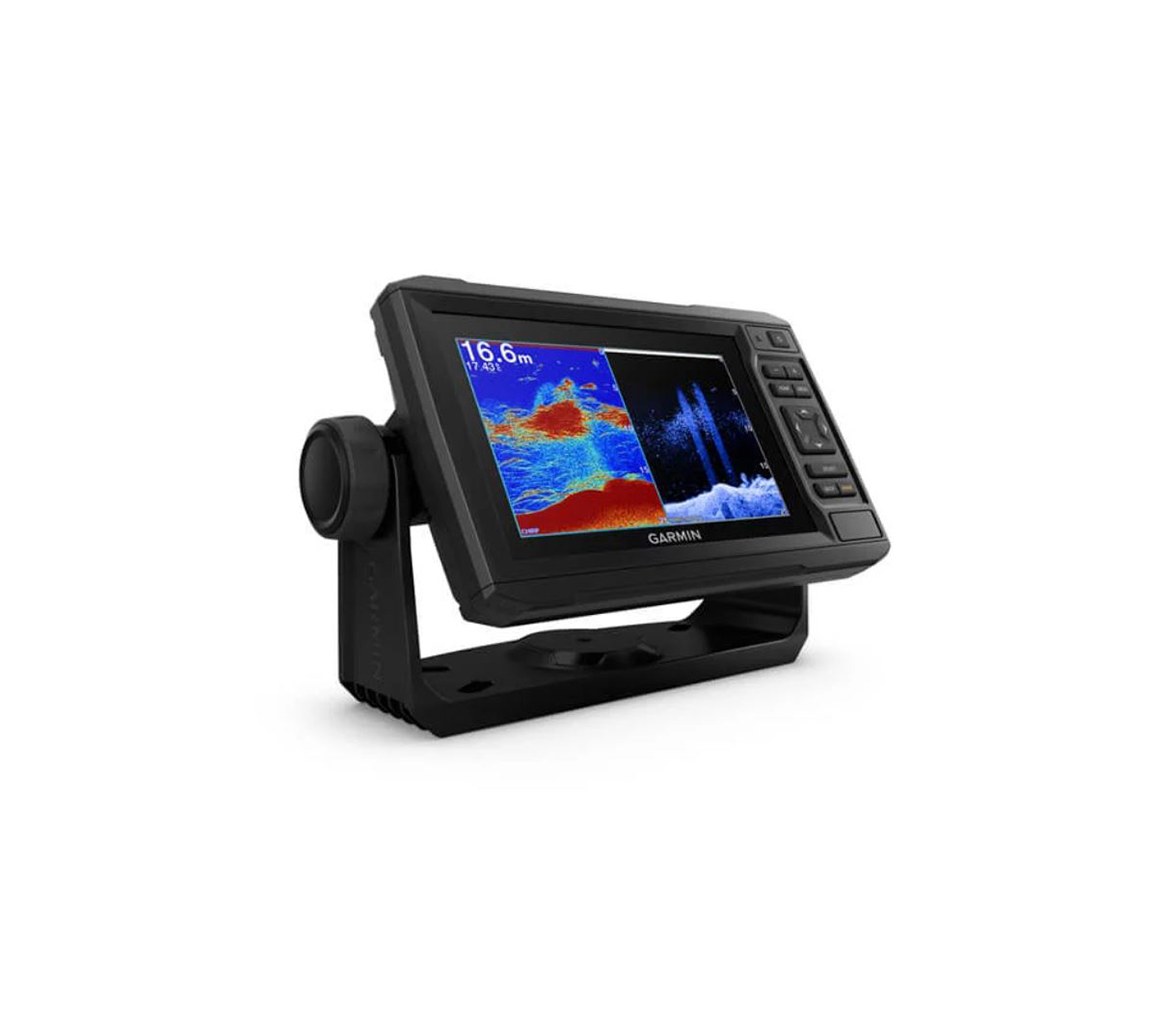

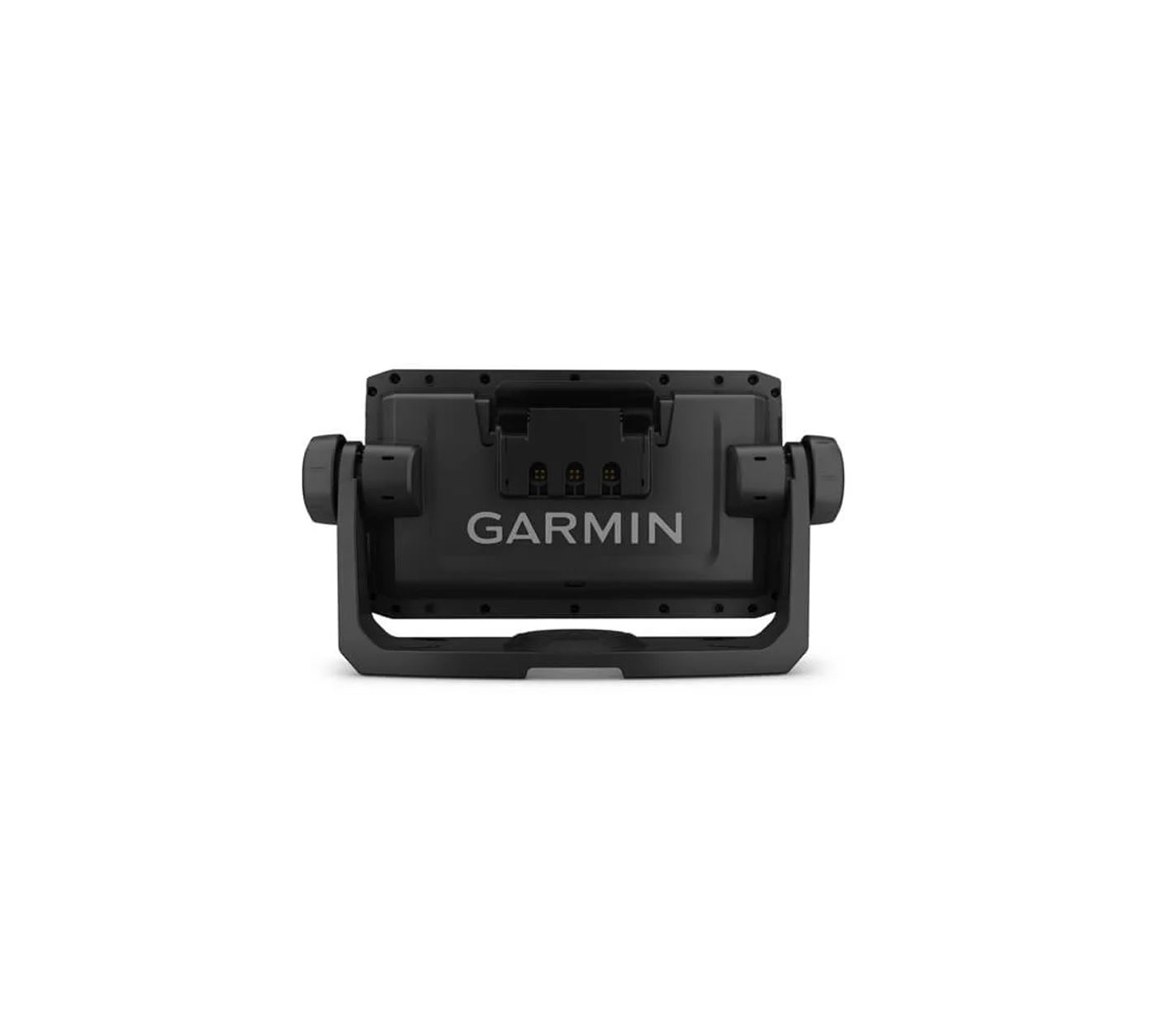

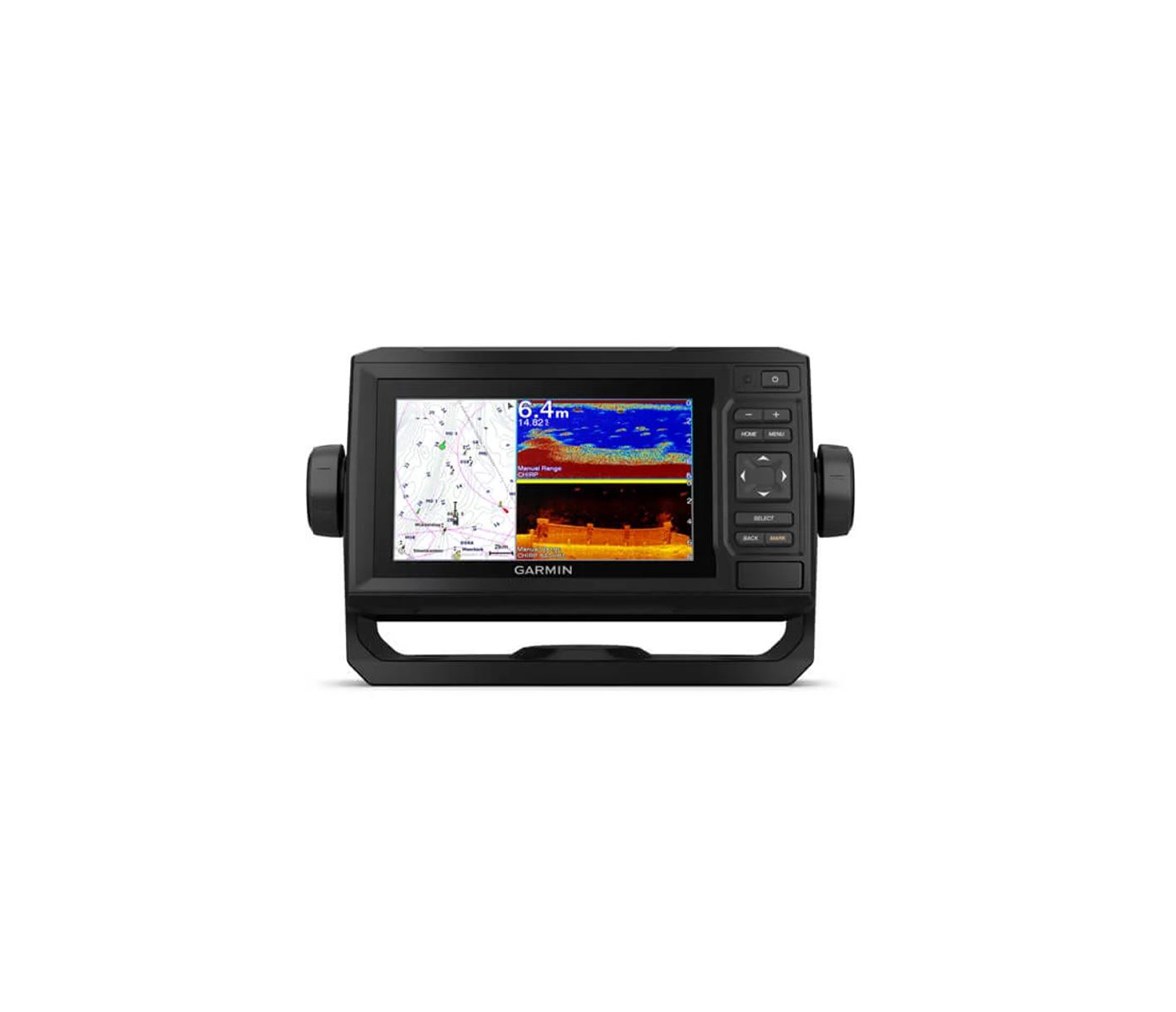

Garmin Plotter echoMap UHD 62cv Probe without Transducer

Ref.: 010-02329-00
● Plotter with 6 ”touch screen readable by sunlight has a quick installation surface mounting bra...
539,00€

Buy now and receive it between Wednesday 5 of February and Monday 10 of February.

* Except the products on request that depend on the receipt of the same.

445

● Plotter with 6 ”touch screen readable by sunlight has a quick installation surface mounting bracket.

OPTIONAL LETTERS AND MAPS

● Enjoy unmatched coverage and level of detail thanks to compatibility with the BlueChart® g3 Vision nautical charts, which feature integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS

● Create custom fishing maps on screen with 30 m contours. Save the data for yourself or share it with the QuickDraw ™ community in Garmin Connect ™.

NMEA 2000® AND NMEA 0183 NETWORKS

● Access autopilots, digital switching, weather forecast, FUSION-Link ™ audio system, multimedia content, VHF, AIS and much more on a single screen.

ACTIVECAPTAIN® APPLICATION

● Integrated Wi-Fi® connectivity, which allows linking with the complete free mobile application to access the OneChart ™ feature, smart notifications1, software updates, data from Garmin QuickDraw community and much more.



Specifications

Physical and performance characteristics

● UNIT DIMENSIONS (WIDTH / HIGH / DEPTH) 21.8 x 13.0 x 6.2 cm

● SCREEN SIZE (WIDTH / HIGH) 13.7 x 7.7 cm; 15.2 cm (6.2 ") diagonally

● DISPLAY RESOLUTION (WIDTH / HIGH) 480 x 800 pixels

● DISPLAY TYPE WVGA screen

● WEIGHT 0.7 kg

● IPX7 WATER RESISTANCE CLASSIFICATION

● POWER CONSUMPTION 12 W

● ANTENNA Internal or external through NMEA 2000

● MOUNTING OPTIONS On surface or recessed

● RECEIVER 5 Hz

● GARMIN MARINE NETWORK ™ PORTS None

● Type of UHD CLEARVÜ AND TRADITIONAL CHIRP probe

Maps and memory

● PRE-INSTALLED MAPS World base map

● ADMIT DATA CARDS 1 microSD ™ card; maximum size of 32 GB

● WAYPOINTS 5000

● ROUTES 100

● TRACKS 50,000 points; 50 saved tracks

Outdoor leisure functions

● TIDE PREDICTION: Yes

Plotter Functions

● COMPATIBLE WITH GARMIN PROBE: Yes

● ALLOWS AIS (TRACK THE POSITION OF THE TARGET BOATS): Yes

● AMITE DSC (SEND THE VHF POSITION DATA COMPATIBLE WITH DSC): Yes

● ACTIVECAPTAIN-YHTEENSOPIVA: Yes

● NAVIGATION FUNCTIONS: Yes

Specifications and probe functions

● COMPATIBLE WITH DOUBLE FREQUENCY PROBE: Yes

● COMPATIBLE WITH DOUBLE BEAM PROBE: Yes

● TRANSMISSION POWER 500 W (RMS) / 4000 W (peak to peak)

● CHIRP TECHNOLOGY Yes (Built-in)

● CLEARVÜ Yes, with CHIRP (integrated)

● SIDEVÜ no

● MAXIMUM DEPTH

700 meters at 77 kHz (in fresh water)
335 meters at 77 kHz (in salt water)
(The maximum depth depends on the type of bottom and other water conditions)
● LOCK ON THE BACKGROUND (SHOWS THE SIGNS THAT RETURN FROM THE FUND TO THE SURFACE): Yes

● GRAPHIC AND WATER TEMPERATURE RECORD: Yes

● PROBE RECORDING: Yes

● RETROCESS FUNCTION OF THE PROBE HISTORY: Yes

Connections

● COMPATIBLE WITH NMEA 2000® Yes

● TRANSDUCER PIN NUMBERS 4

● NMEA INPUT PORTS 0183 1

● NMEA OUTPUT PORTS 0183 1

● VIDEO INPUT PORTS None

● VIDEO OUTPUT PORTS - NONE None

● WIRELESS CONNECTIVITY Yes

box

● EchoMAP UHD 62cv with world base map

● Charger / data cable

● Tilt / swivel bracket with quick-release clamping bracket

● Flush mount bracket

● Protection cover

● Hardware

● Documentation
