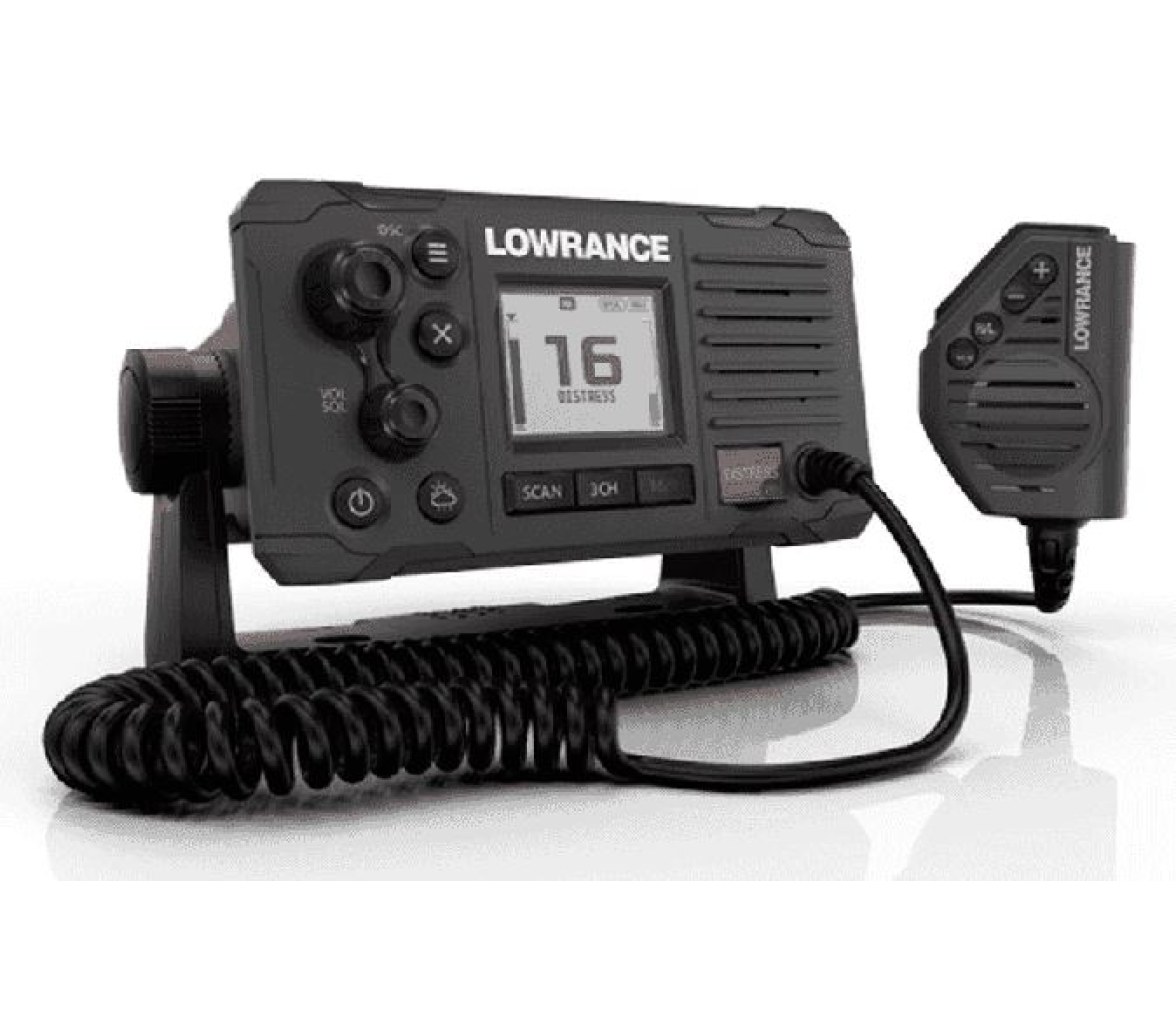

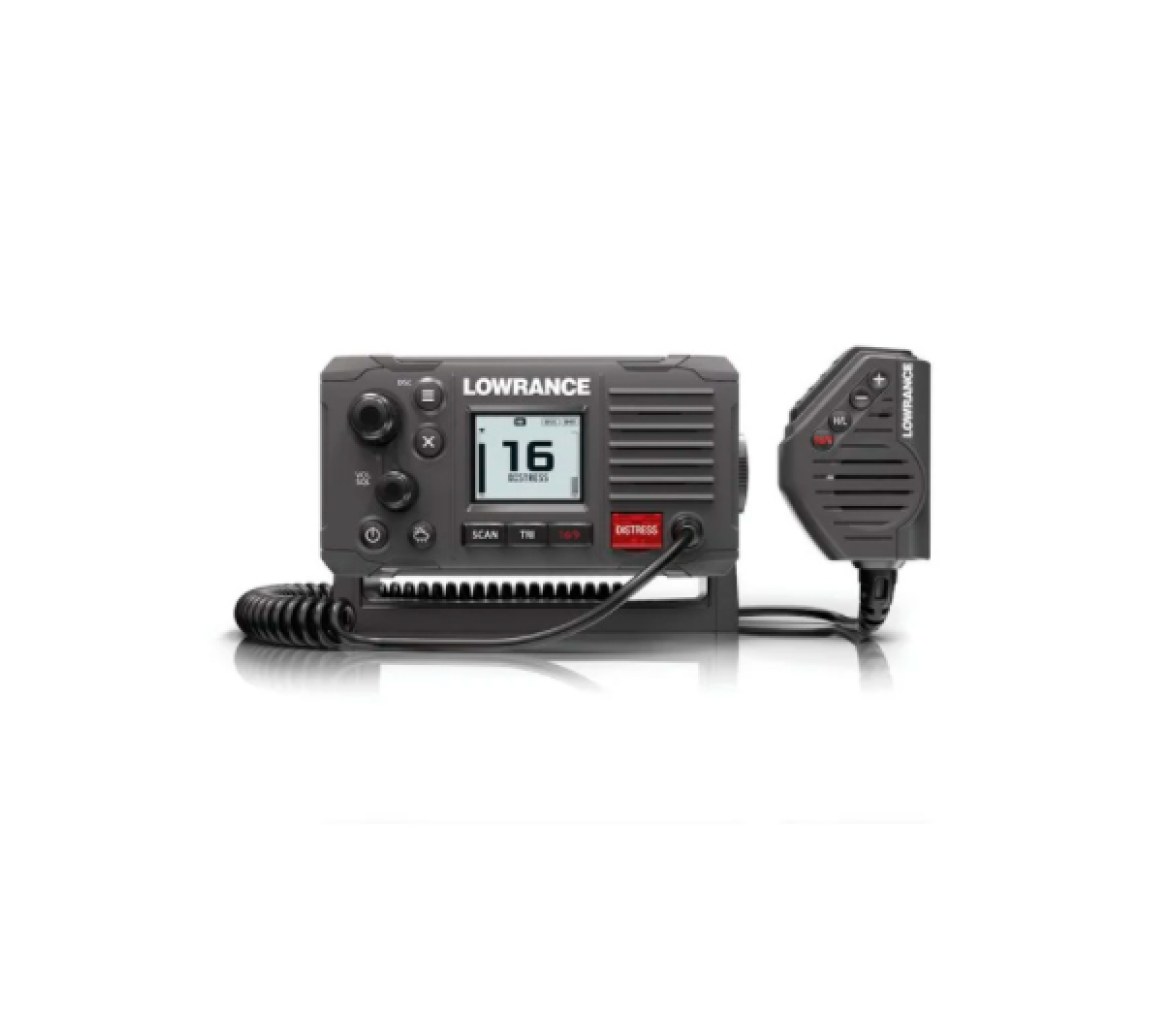

Lowrance Link-6S Marine DSC VHF Radio

Ref.: 000-14493-001
● Overview Replaces the current Link-5 entry level VHF NMEA0183 New front mountable mechanic...
226,00€

Buy now and receive it between Thursday 27 of June and Tuesday 2 of July.

* Except the products on request that depend on the receipt of the same.

187

Overview

  • Replaces the current Link-5 entry level VHF
  • NMEA0183
  • New front mountable mechanical design for easy installation
  • Available globally in white or grey



 Key Selling points

  • Easy front mount solution
  • Low profile to style match Lowrance MFD’s, 2 colour options
  • Clear white dot matrix LCD
  • Inverted LCD night mode for reduced light emission
  • Dimmable to 0.5 nits for night operation
  • Four button fist mic
  • Full inbuilt country specific channel banks no requirement for programming



 New features
 Start up wizard

  • Region & Country selection
  • Enter MMSI
  • Call sign
  • GPS source selection
  • Time offset



 Improved SCAN features

  • ALL SCAN
  • ALL CHANNELS + 16
  • MY CHANNELS
  • MY CHANNELS + 16



 Favourites shortcut

  • Customizable favourite functions
  • Defaults
  • Contrast
  • Sensitivity
  • VHF info



 Channel name

  • My Channels
  • Set Channels as favourite channels
  • Enter favourite channel mode by long pressing channel dial
  • Only favourite channels will be included in channel scrolling



 Night Mode

  • Invert the LCD display
  • Minimizes light emitted for night mode operation
  • Dimmable to 0.5 NITS
  • LED’s dim with backlight control



General Specifications

  • Frequency Range: Transmit 156.025~157.425 MHz
  • Frequency Range: Receive 156.050~163.275 MHz
  • Number Of Channels US / INT
  • Oscillate Mode PLL
  • Modulation FM(16KOG3E) DSC(16K0G2B)
  • Channel Spacing 25KHz
  • Frequency Stability ±5 PPM
  • Temperature range -15°C to +55°C (5°F to 131°F)
  • Normal Working Voltage +13.6 V DC
  • Minimum operating Voltage 10 V DC
  • Low battery detect Voltage 10.5 ± 0.5 V DC
  • Digital Selectivity Calling (DSC) Class D

Receiver

  • Intermediate Frequency : 1st 38.85/21.7 MHz
  • Intermediate Frequency : 2nd 450 KHz
  • Sensitivity : 12dB SINAD -6 dBuV(EMF)
  • Squelch Sensitivity: at tight 6 dBuV(EMF)
  • Spurious Response Rejection Ratio 70 dB
  • Adjacent Channel Selectivity 70 dB
  • Intermodulation Response 68 dB
  • S/N at 3KHz Dev. 40 dB
  • Audio Output Power At THD 10% 2.5 W
  • Audio Distortion 10 %
  • Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz dB
  • Current Drain : Max Audio Power 1.5 A
  • Current Drain : Stand-By 0.5 A
  • 2ND RX Sensitivity For 12dB SINAD 0 dBuV(EMF)
  • 2ND RX bit error ratio@-107dBm 10-2

Transmitter

  • Frequency error ±1.5KHz
  • RF Power Hi23W ± 2W :Lo 0.8W ± 0.2W
  • Maximum Deviation ± 5 KHz
  • S/N at 3KHz Dev. 40 dB
  • Modulation Distortion ±3KHz 10 %
  • Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz
  • Spurious/Harmonic Emissions: Hi/LO 0.25uW
  • Modulation Sensitivity 15 mV
  • Current Drain At 12V DC Hi Power 6A: Lo Power 1.5A
  • DSC TX deviation at 1.3K 2.6±0.26 KHz
  • DSC TX deviation at 2.1K 4.2±0.42KHz
  • ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
  • ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
