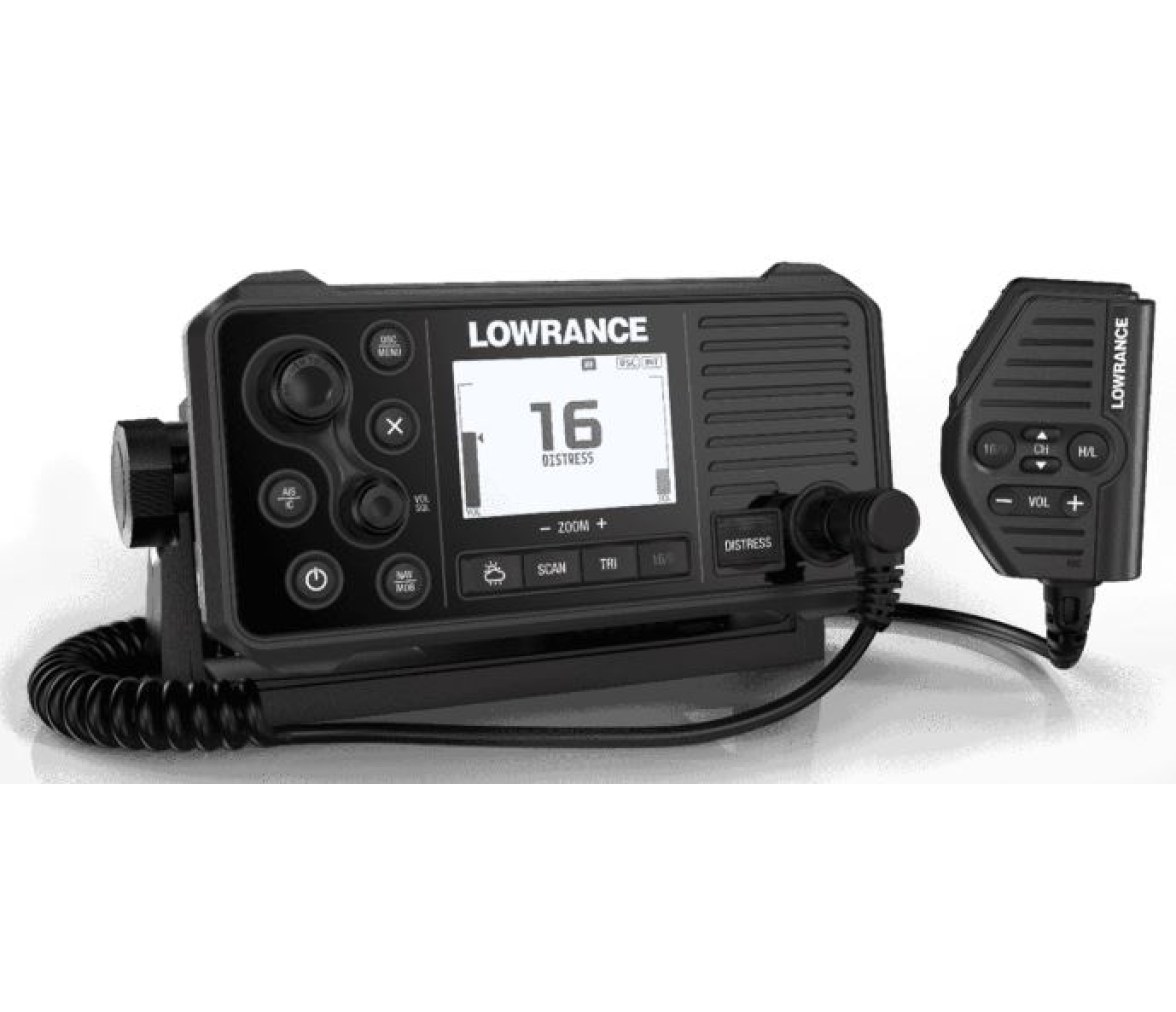

Lowrance LINK-9 marine VHF radio with DSC and AIS receive

Ref.: 000-14472-001
● Overview Lowrance Link-9 Replaces the current Link-8 VHF New front mountable design for eas...
antes: 534,65€
454,00€

Buy now and receive it between Friday 21 of February and Tuesday 25 of February.

* Except the products on request that depend on the receipt of the same.

This sale ends in: days h:m:s
0

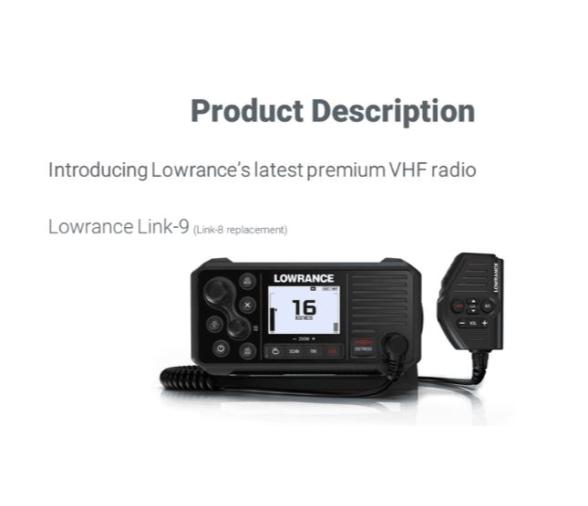

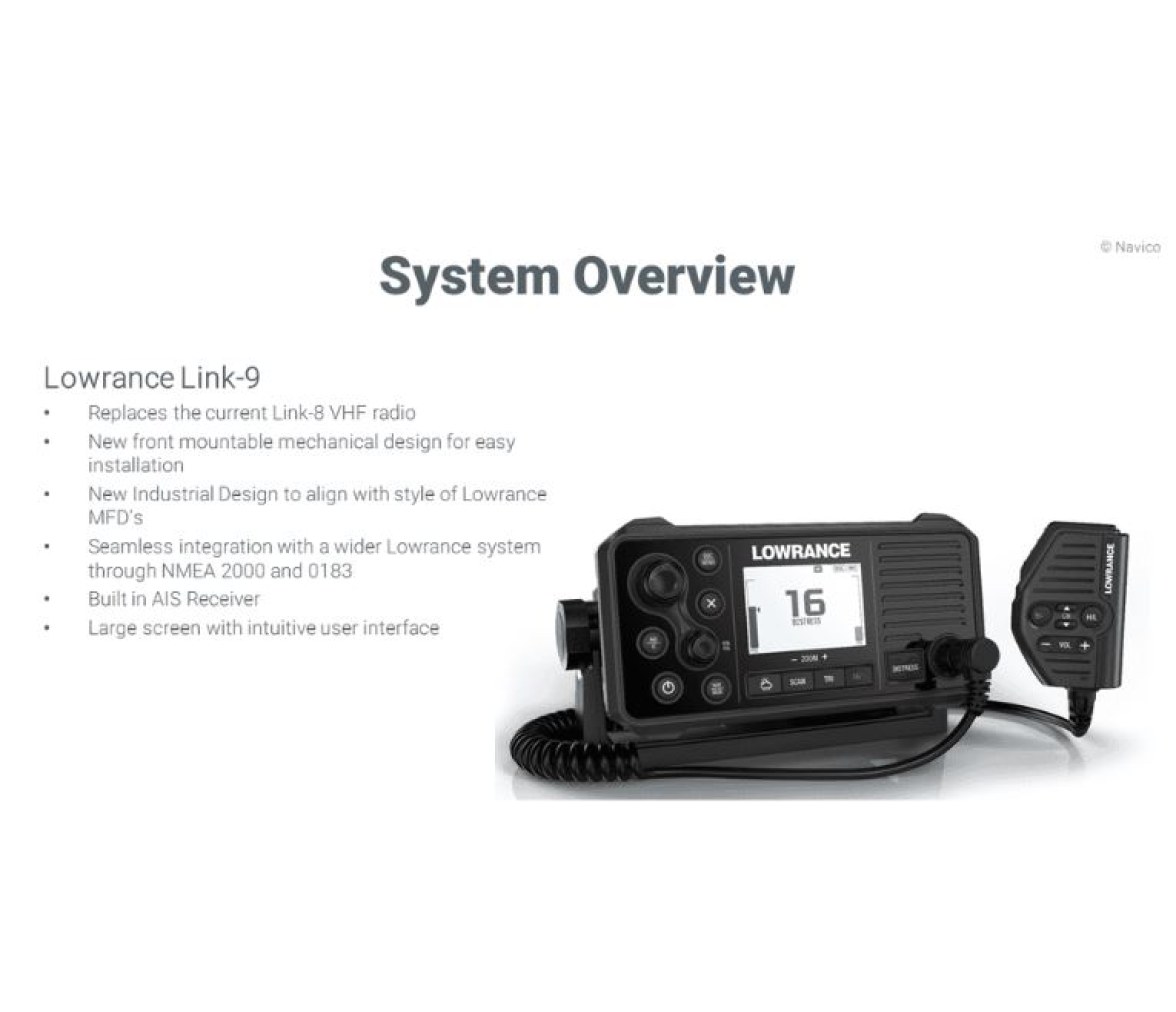

Overview

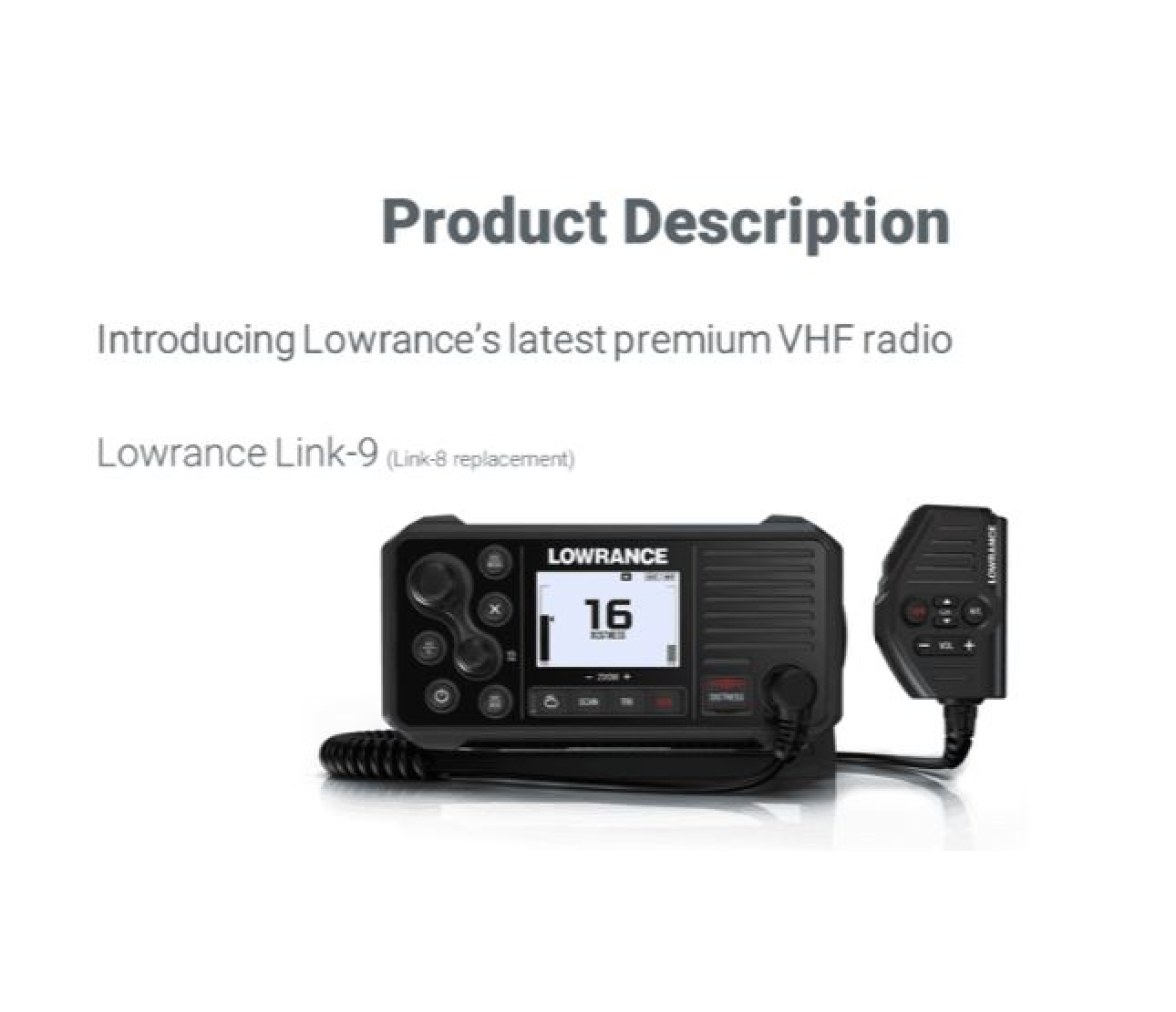

  • Lowrance Link-9 Replaces the current Link-8 VHF
  • New front mountable design for easy installation
  • New Industrial Design to align with style of Lowrance MFD’s

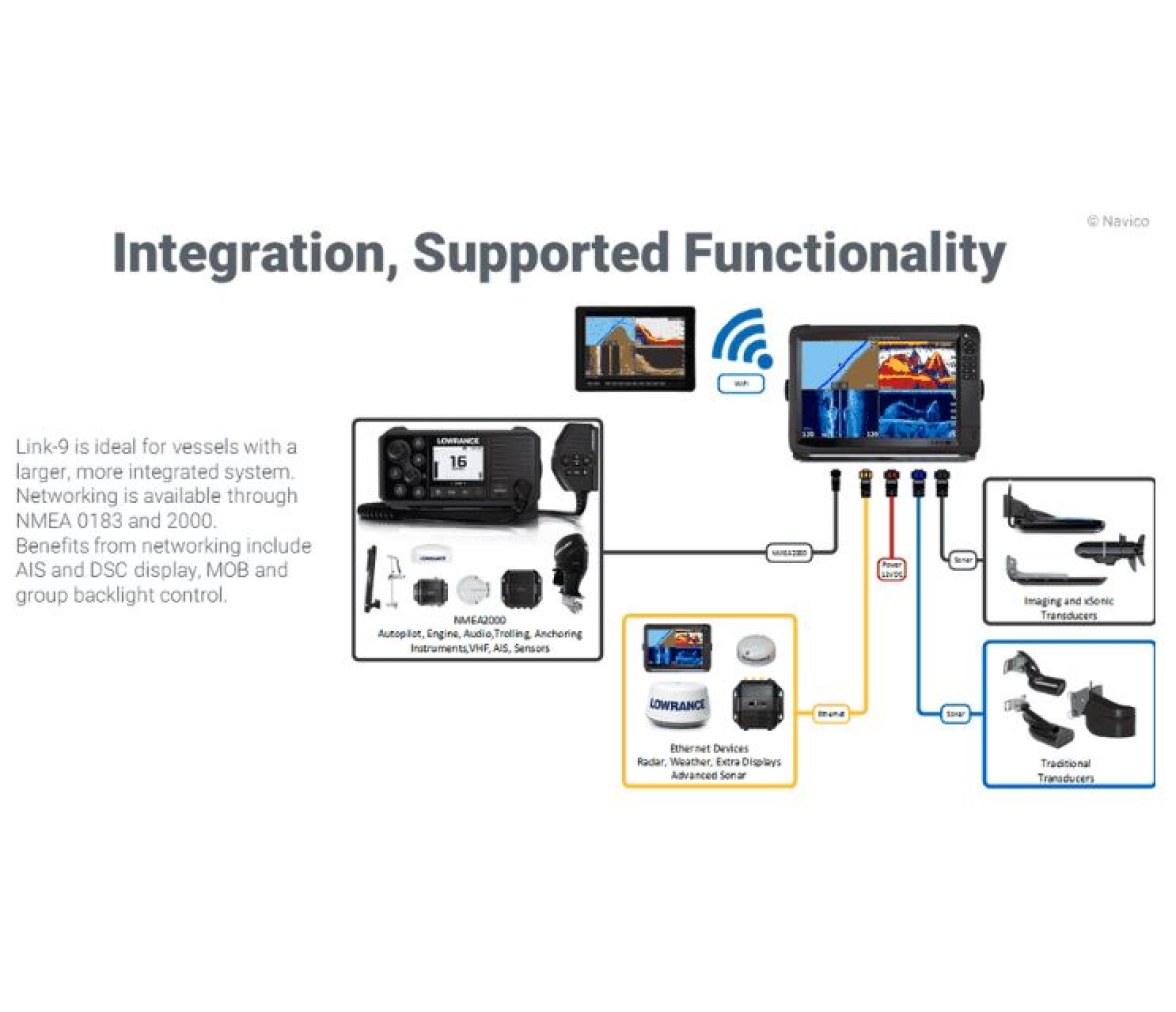

  • Seamless integration with a wider B&G system through NMEA 2000 and 0183
  • Built in AIS Receiver
  • Large screen with intuitive user interface

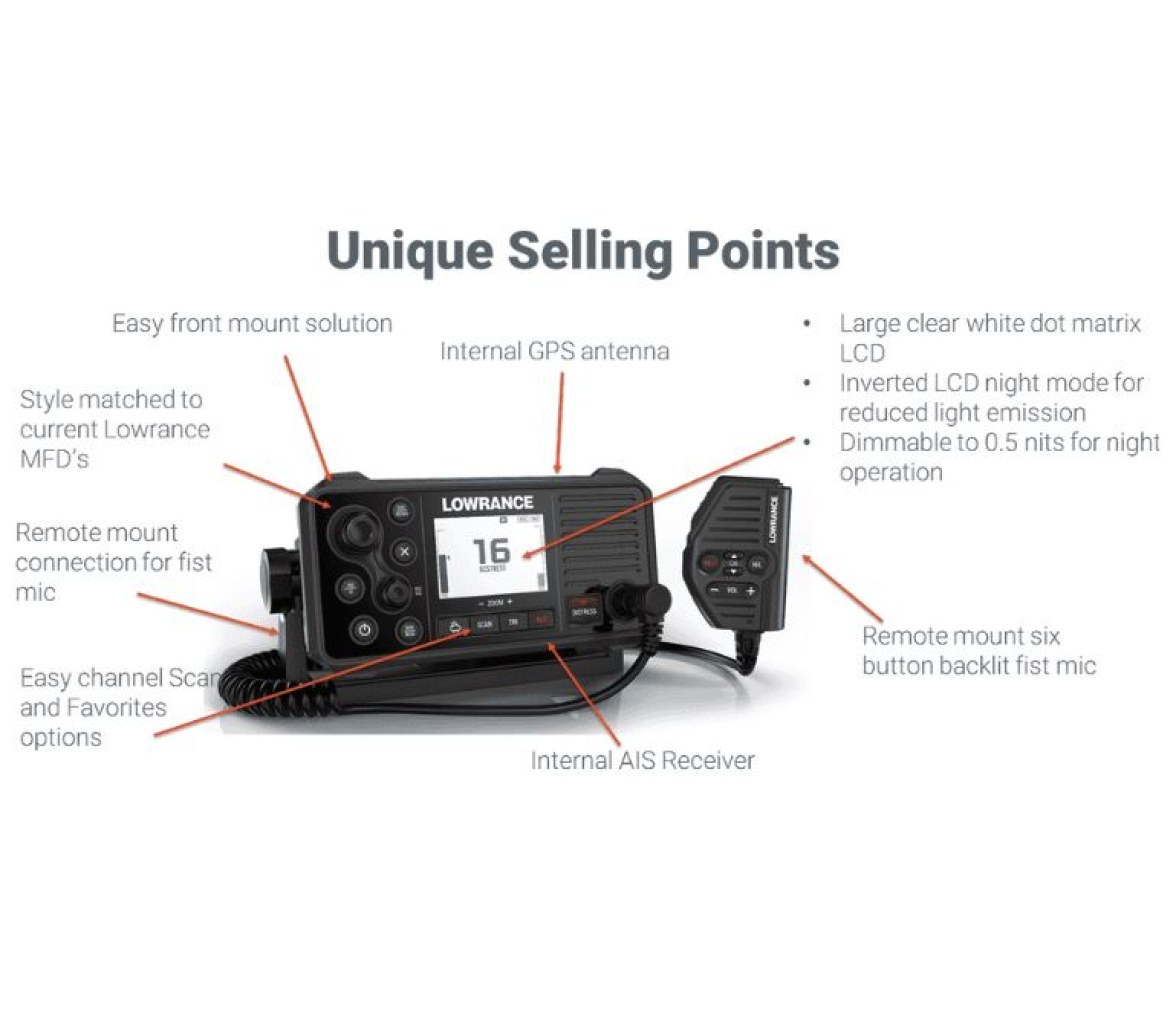

 Unique Selling Points
 GPS 4-Ways:​

  • With the integrated GPS receiver the Link-9 now has four ways to ensure you have a GPS fix in the event of an emergency.
  • A GPS antenna in the face of the radio means open air installations don’t need another antenna at all
  • An SMA connector on the rear case allows for connection to a GPS-500 antenna
  • NMEA 0183 allows you to get GPS from a chartplotter
  • NMEA 2000 means you don’t need another antenna if you already have one in your network



 Built in AIS​

  • A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways.
  • AIS information can be viewed on the Link-9’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.



 Remote Mountable Fist Mic

  • The Link-9’s removable fist mic can be connected to the front or rear of the radio, and optional extension cable allows the radio and mic to be mounted separately.
  • This offers a simple and cost-effective solution for any mounting location, with no cable clutter.
  • For example, the Link-9 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

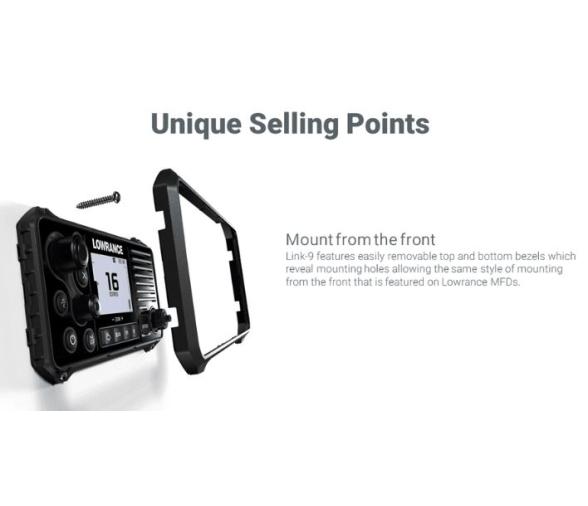

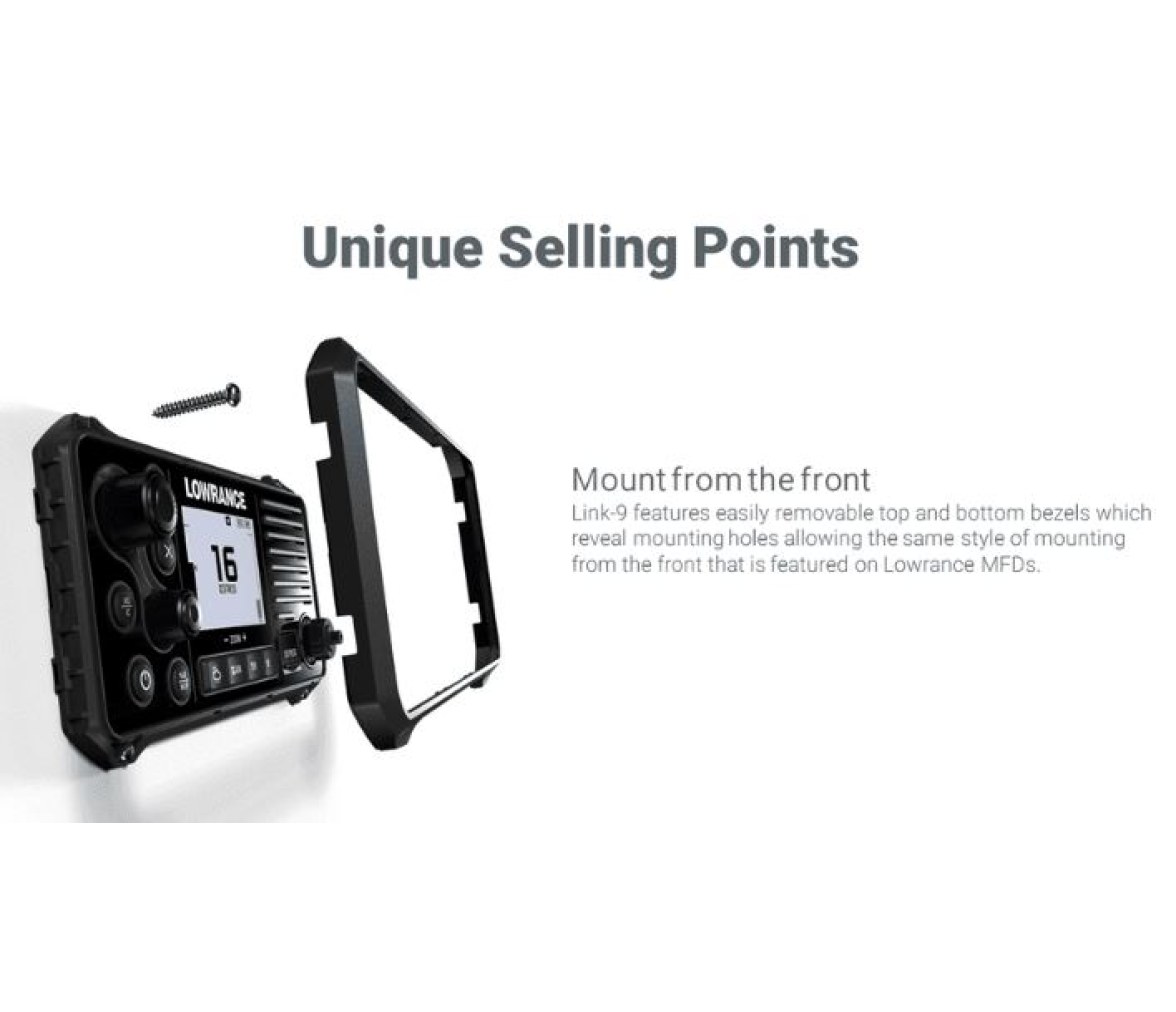

 Mount From The Front​

  • Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.



 Track Buddy​

Track buddy is a feature that automatically requests the position of another VHF radio. Simply enter the MMSI of the VHF into your contact list, then start tracking!

  • Track up to 5 buddies
  • Polls your contacts for their Lat/Long position automatically
  • Can be set to 1, 5, 15, 30 or 60 minute intervals
  • Displays the position on a compatible chart plotter
  • Great for keeping track of friends, family or vessels you need to know the position of that don’t have AIS



 Navigation Mode​

  • Invert the LCD display
  • Minimizes light emitted for night mode operation
  • Dimmable to 0.5 NITS
  • LED’s dim with backlight control



General Specifications

  • Temperature range -15 to +55°C (+5 to +131°F)
  • Waterproof IPX7
  • Normal Working Voltage +13.6 V DC
  • Minimum operating Voltage ≤10 V DC
  • Low battery detect Voltage 10.5 ± 0.5 V DC
  • Over Voltage Protection >15.8 ± 0.5 V DC
  • Hailer Audio Power Out 30 W
  • Current Drain RX Max Audio Power ≤1.5 A
  • Current Drain Stand-By RX ≤0.45 A
  • Current Drain At 12V DC : Hi Power TX ≤6 A
  • Current Drain At 12V DC : Lo Power TX ≤1.5 A
  • Frequency Range: Transmit 156.025~157.425 MHz
  • Frequency Range: Receive 156.050~163.275 MHz

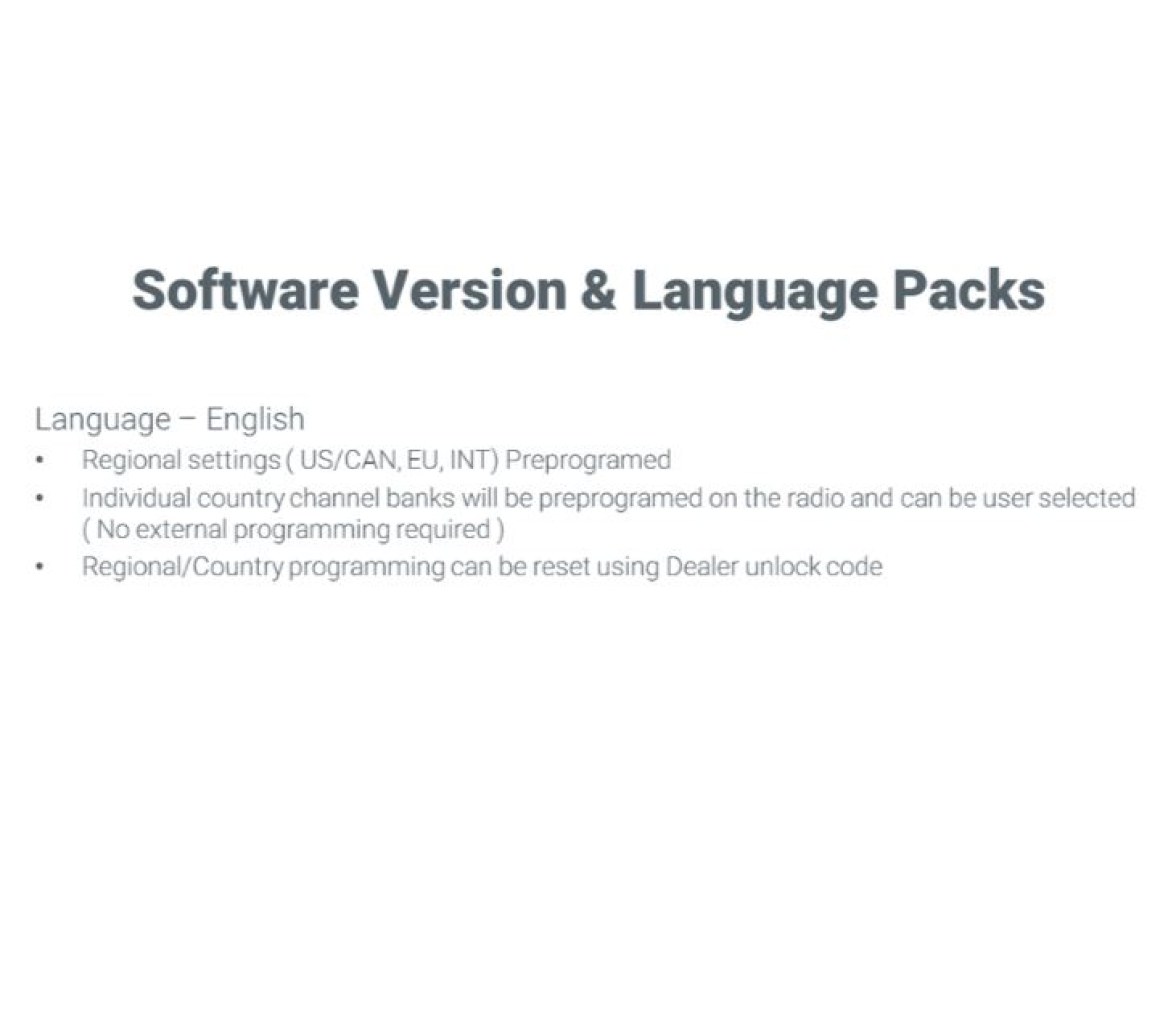

  • Channels INT / US / CAN / EU
  • Oscillate Mode PLL
  • Modulation FM(16KOG3E) DSC(16K0G2B)
  • Channel Spacing 25 KHz
  • Frequency Stability ±5 PPM
  • Digital Selectivity Calling (DSC) Class D
  • LCD Display FSTN 256x160 Pixels
  • AIS Max Targets 150

Receiver

  • Intermediate Frequency : 1st 38.85/21.7 MHz
  • Intermediate Frequency : 2nd 450 KHz
  • Sensitivity : 12dB SINAD ≤-6 dBuV(EMF)
  • Squelch Sensitivity: at tight ≤ 6 dBuV(EMF)
  • Spurious Response Rejection Ratio ≥70 dB
  • Adjacent Channel Selectivity ≥70 dB
  • Intermodulation Response ≥68 dB
  • S/N at 3KHz Dev. ≥40 dB
  • Audio Output Power At THD 10% ≥2.5 W
  • Audio Distortion ≤10 %
  • Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz
  • Current Drain Max Audio Power ≤1.5 A
  • Current Drain Stand-By ≤0.45 A
  • 2ND RX Sensitivity For 12dB SINAD ≤ 0 dBuV(EMF)
  • 2ND RX bit error ratio@-107dBm ≤ 10-2

Transmitter

  • Frequency error ≤±1.5KHz KHz
  • RF Power : Hi 23 ± 2 W
  • RF Power : Lo 0.8 ± 0.2 W
  • Maximum Deviation ≤± 5 KHz
  • S/N at 3KHz Dev. ≥40 dB
  • Modulation Distortion ±3KHz ≤10 %
  • Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz dB
  • Spurious/Harmonic Emissions: Hi/LO ≤0.25 uW
  • Modulation Sensitivity ≤15 mV
  • DSC TX deviation at 1.3K 2.6±0.26 KHz
  • DSC TX deviation at 2.1K 4.2±0.42 KHz
  • ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
  • ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
