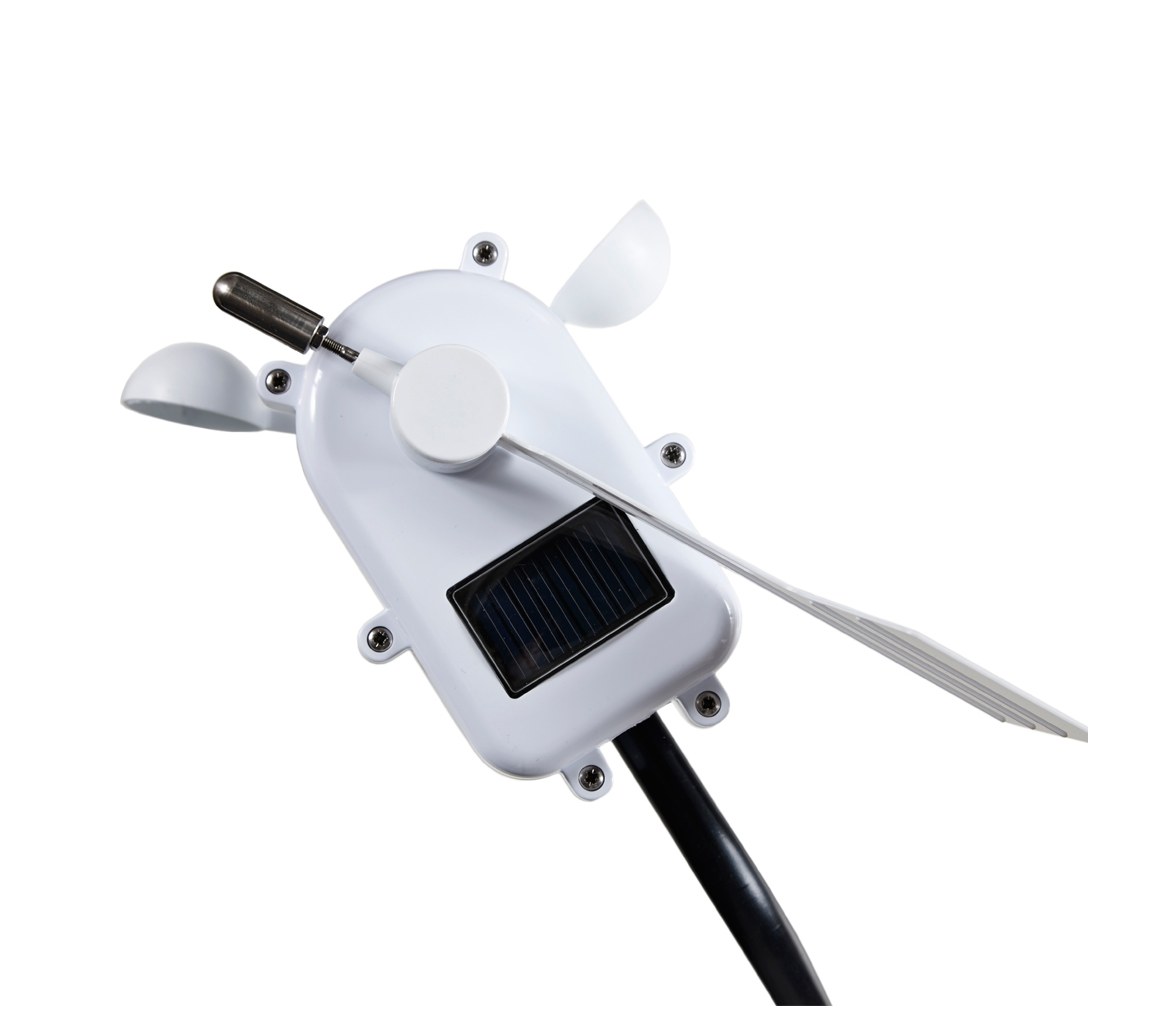

● The Clipper wireless wind is supplied with a wireless masthead transmitter, a base unit and a Clipper Wind display unit. The wireless masthead transmitter is powered by an internal battery which is charged from ambient light using a small solar panel. A few dull days will not affect performance. When fully charged, it is capable of two thousand hours of full operation in total darkness. The masthead transmitter sends data wirelessly to the base unit, which is powered by the vessel’s 12 Volt supply, the base unit receives wind speed and direction data from the masthead transmitter and sends it to the Clipper Wind display or any other compatible NMEA display unit.

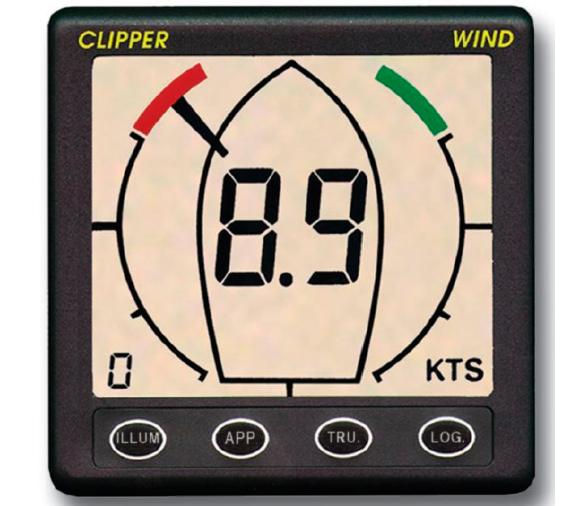

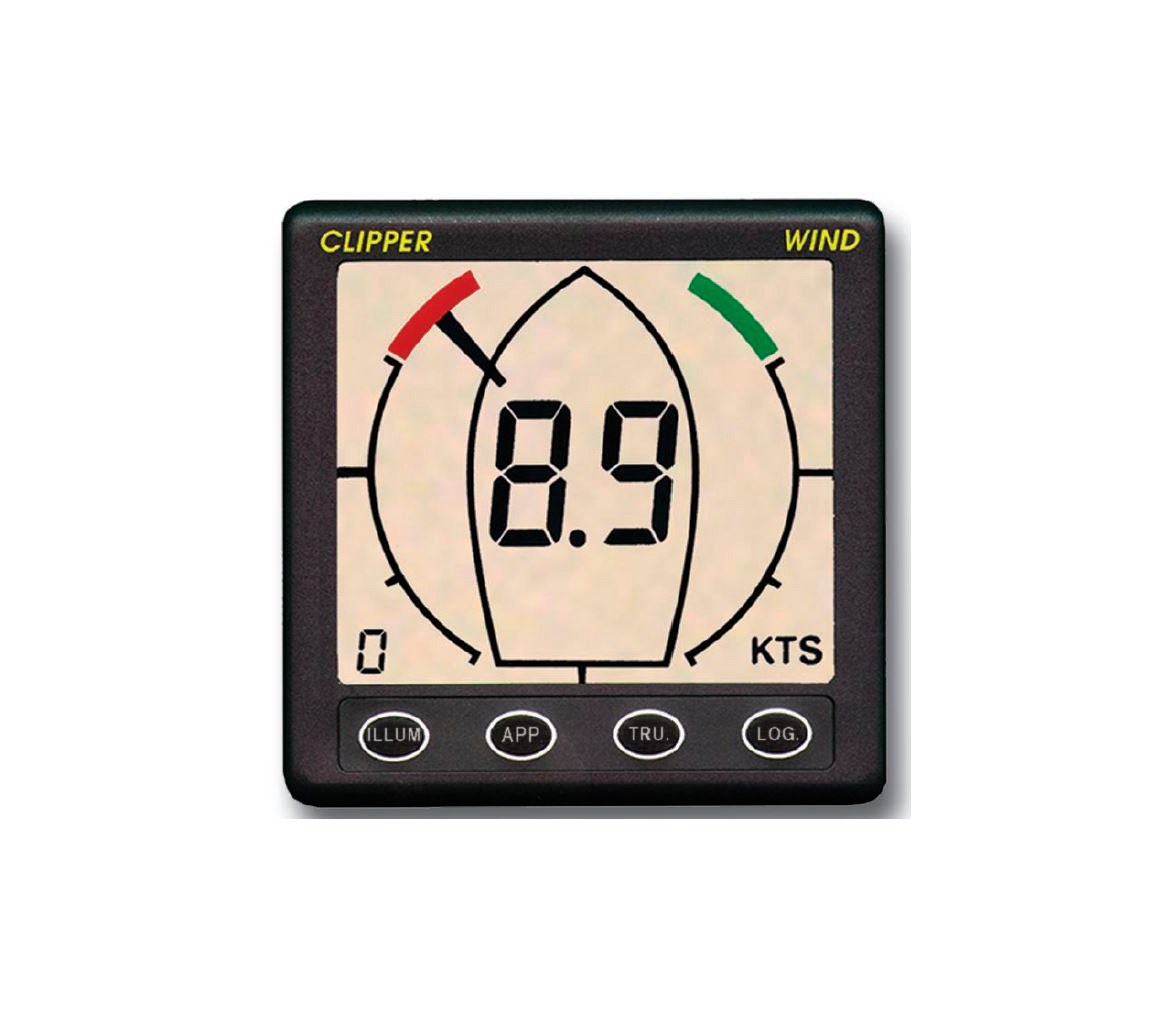

● The Clipper Wind display is in the industry standard 110mm square case. Exceptionally large and clear display with 60 segments for full 360 degree direction indication.
● Wireless wind speed and diretion data to any compatible NMEA display.
● Easy installation with mast in place - no wires to run down.
● Simple masthead alignment through base unit
● Light mast unit weight: 190 gr
● Sleep time.: +15000 horas
● Operating time.: + 2000 horas
● Charging time.: < 150 hous of bright daylight
● Fully charged with no further daylight.
● Wireless masthead transmitter.
● NMEA 0183 4800 baud
● NMEA data sentence MWV.
● Supply voltage nominal 12V DC
● Supply current 17mA
● Wind speed and direction NMEA data sentence MWV to any compatible NMEA devi
The Clipper True Wind Display shows apparent wind speed and direction and, when connected to a log or GPS, it can also show true wind speed and direction.
● Supply voltage nominal 12V
● Supply current 10 mA + (10 mA for back light illumination Max)
● NMEA input sentence for Wind-MWV
● NMEA boat speed input either VHW from log or RMC from GPS for True wind speed and direction.
● Back light.: 9 levels
● Point style.: 2
● Display wind speed: 0 to 99 kts
● Display wind angle: 0 to 360 degrees reprensented by 60 segments
● Display case size.: 110 x 110 mm.
