Aprobaciones
Cumplimiento: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
Piloto Automático
• Maniobras / Patrones de Giro: Giro en U, Giro en espiral, Giro en C, Zig-zag, Giro cuadrado, S perezosa, Seguimiento de contorno de profundidad
• Modos de Dirección: Auto, Nav., No Drift, Seguimiento, No seguimiento, Patrones de giro, Standby, *Viento, *Viento NAV. (*Tipo de barco configurado a Velero)
• Nota: Requiere botón STBY o controlador con botón STBY para la puesta en marcha
Conectividad
• Oraciones NMEA 0183 soportadas: Entrada: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Nota: Las oraciones AIS no se transfieren hacia o desde NMEA 2000). Salida: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
• Bluetooth: Interno
• Ethernet: 3 puertos de 100 Mbits/s, RJ-45 (adaptable a 5 pines amarillos usando cable adaptador 000-11246-001)
• N2K PGNs: Solo recepción: 59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report Part A, 129810 AIS Class B “CS” Static Data Report Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage. Transmit and Receive: 61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect Configuration
Solo transmisión:
65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
• NMEA 0183: 2x NMEA0183 (IEC61162-1) . 2x NMEA0183-HS (IEC61162-2)
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• Conectividad con PC: HDMI Video desde un PC
• Video: 2x video compuesto (BNC). 1x entrada de video en alta definición (1080p, HDCP 1.4, HDMI-A). 1x salida de video en alta definición (1080p, sin HDCP, HDMI-A)
• WiFi: Interno 802.11b/g/n

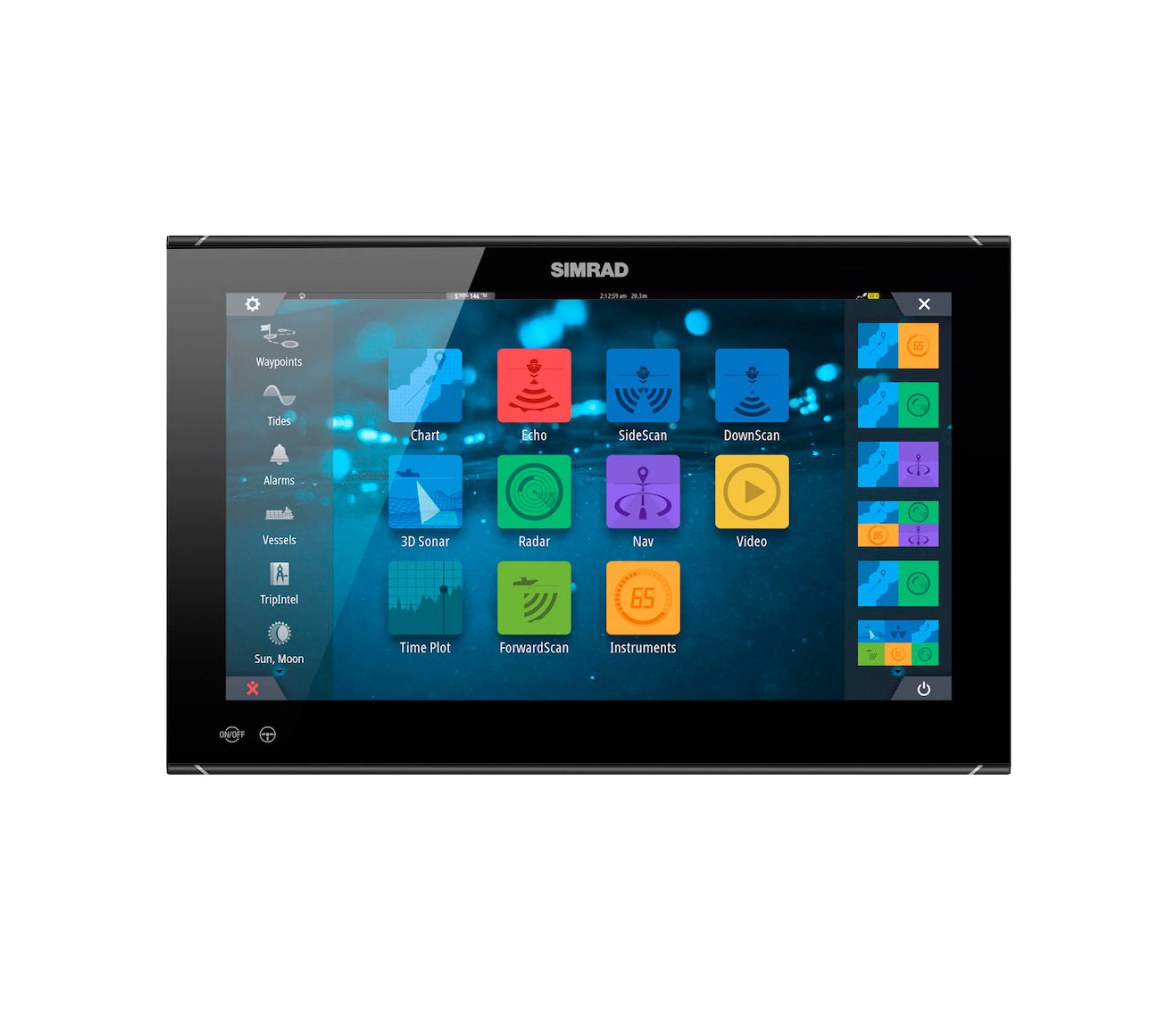

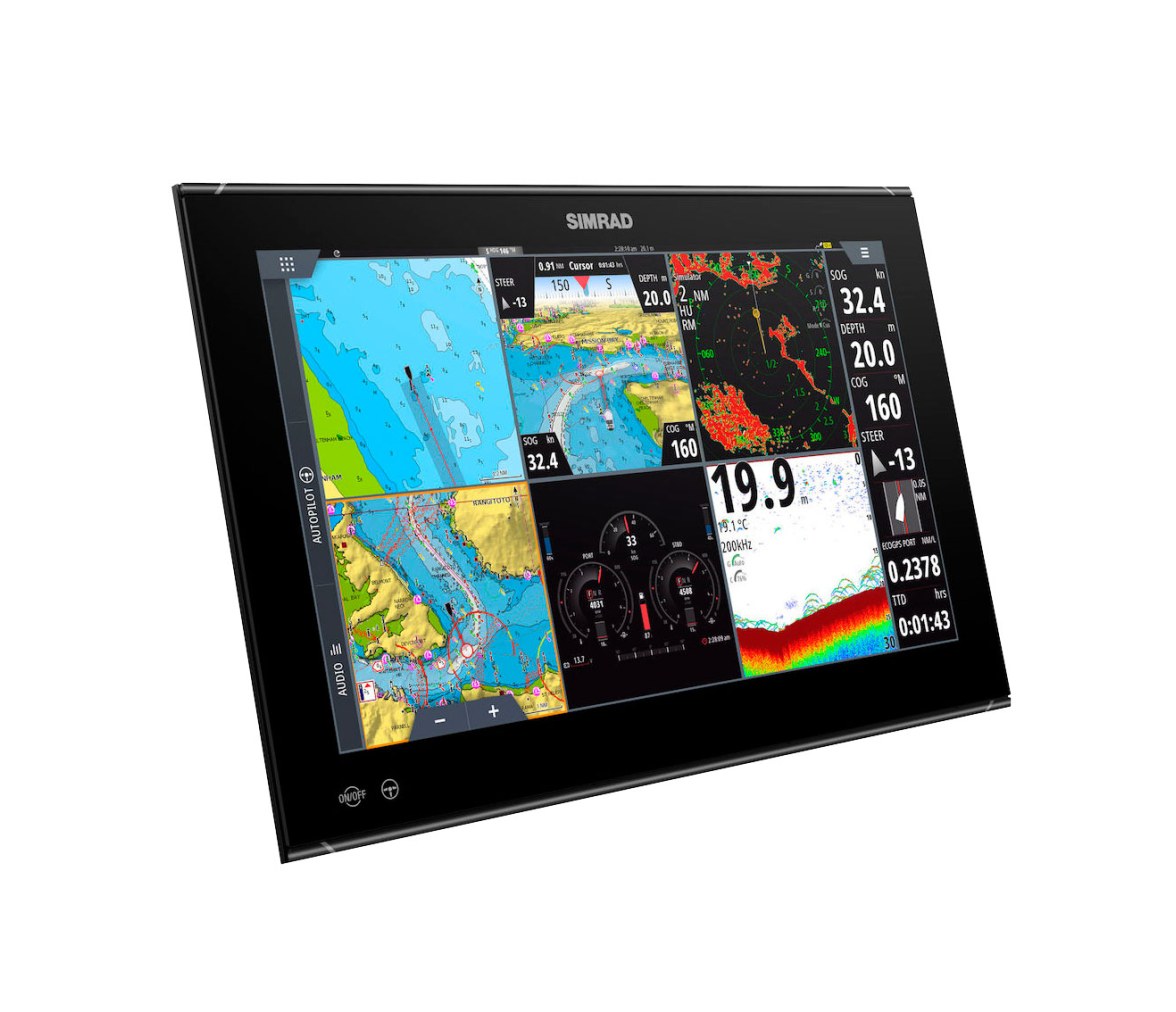

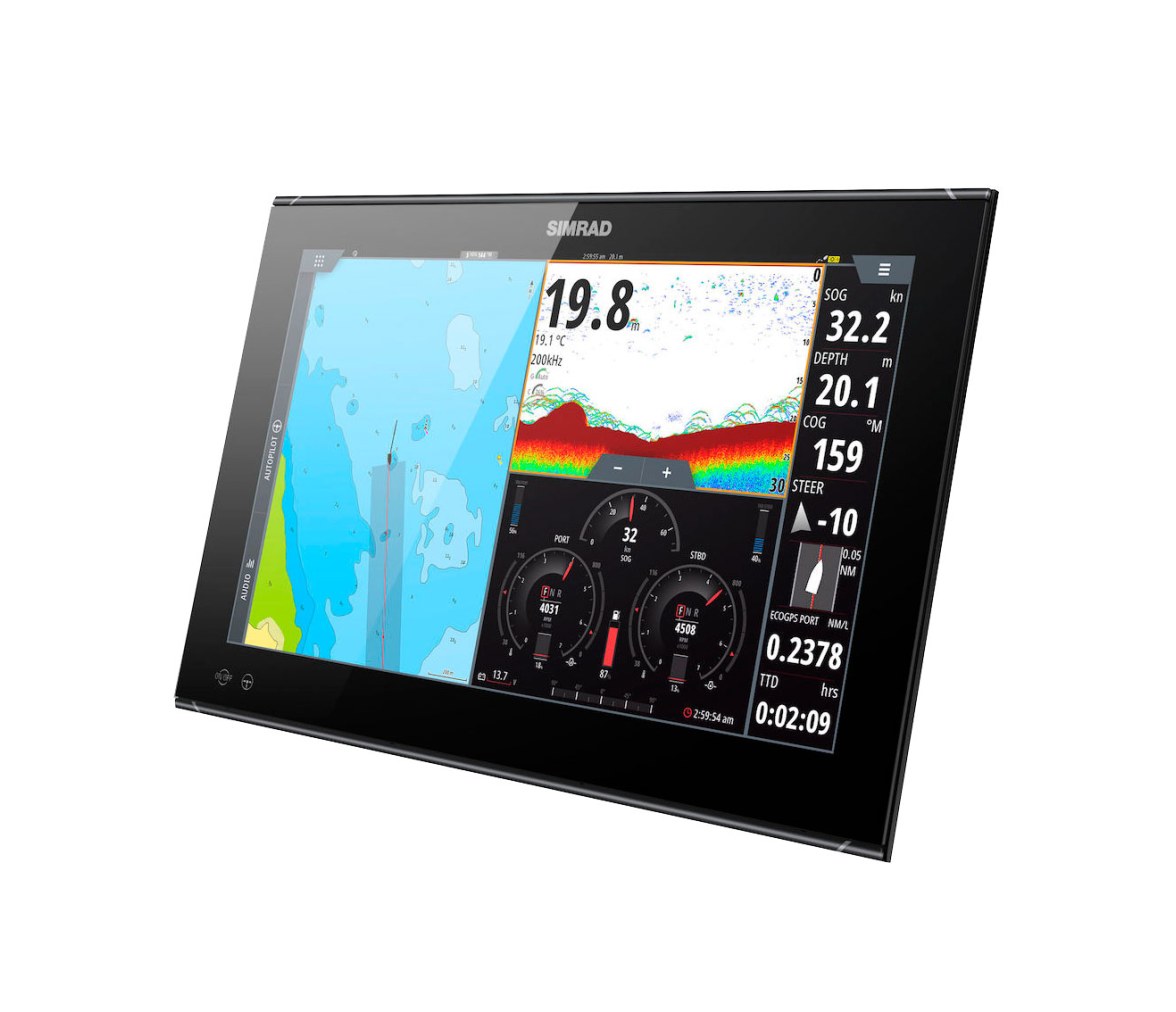

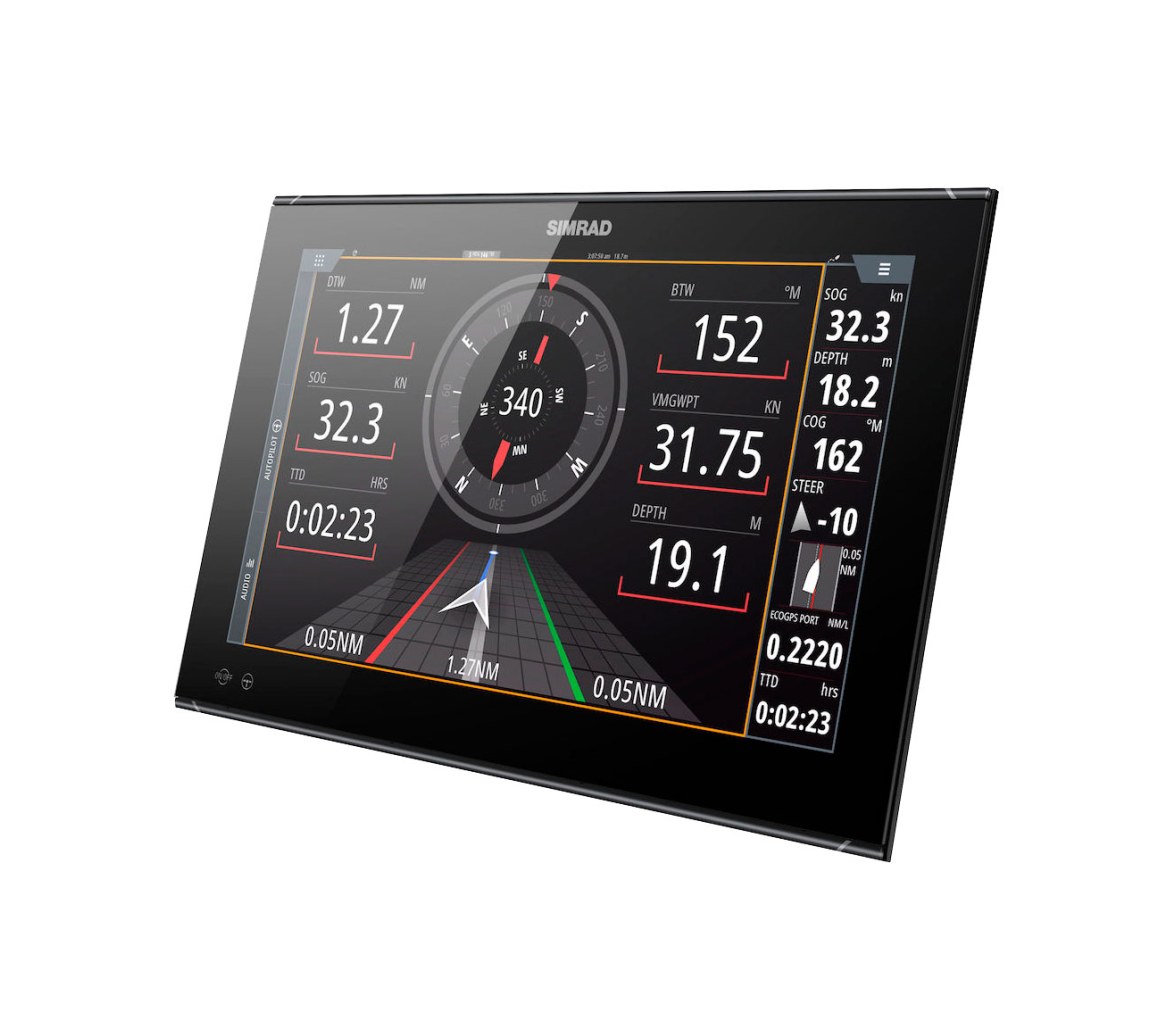

Pantalla
• Color de retroiluminación: Blanco
• Resolución: 1920 × 1080
• Brillo de pantalla: 1200 nits
• Tamaño y tipo: AHVA 18,5” TFT ópticamente unido
• Ángulos de visión: 80° arriba/abajo, 80° izquierda/derecha
Eléctrico
• Consumo máximo de energía: 50 W ± 4 W
• Fusible recomendado: 7 A @ 12 V DC
• Voltaje de alimentación: 10 – 32 V DC
Entorno
• Rango de temperatura de operación: -15°C a +55°C (5°F a 131°F)
• Choque y vibración: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1
• Rango de temperatura de almacenamiento: -20°C a +60°C (4°F a 140°F)
• Clasificación de impermeabilidad: IPX6 en el frente (la parte trasera no es impermeable)
GPS
• Corrección: N/A
• Canales del receptor GPS: N/A
• Precisión de posición: N/A
• Tiempo para la primera fijación: N/A
• Tasa de actualización: N/A
MFD
• AIS: Recibir datos AIS a través de NMEA 2000 o NMEA 0183 (IAS no se transfiere a N2K)
• Piloto automático: Auto, Nav., No Drift, Seguimiento, No seguimiento, Patrones de giro, Standby, *Viento, *Viento NAV. (*Tipo de barco configurado a Velero)
• Cartografía incluida: Mapa base mundial
• Cartografía soportada: Insight, Navionics (Gold, NAV+ Platinum+), C-MAP (MAX N, MAX N+), NV Digital (Mapas rasterizados US)
• Conmutación digital: BEP C-Zone, Naviop
• Almacenamiento externo: 1 ranura Micro SD, o usar lector de tarjetas USB Dashmount MI10 con 2 ranuras Micro SD, máximo 32GB cada una. >32 GB formatear a NTFS
• GPS: Se requiere GPS externo
• Almacenamiento interno: 16 GB
• Multimedia: vía SonicHub2, Fusion Link, *Sirius, **JL Audio (*solo EE. UU., **AUST. y NZ solamente)
• Radar (incl. compatibilidad): Halo, Broadband, HD Radars
• Sonar (incl. compatibilidad): Se requiere módulo externo de eco-sonda o conexión a MFD con eco-sonda incorporada que pueda compartir sonar a través de Ethernet
• Clima: SiriusXM vía WM-3 (solo EE. UU.), GRIB
• Waypoints, Rutas, Tracks: 6000 waypoints, 500 rutas con máximo 100 puntos por ruta, 50 tracks con hasta 12,000 puntos de track
• Distancia segura de la brújula - Métrico, Imperial: 50 cm (19.7")
Físico
• Dimensiones (A × A × P): 478,1 × 305 × 83 mm (18.82 × 12.01 × 3.27“)
• Dimensiones con soporte: 509,9 × 348 × 214,6 mm (20.08 × 13.7 × 8.45“)
• Tipo de montaje: Montaje en panel o soporte (usar soporte opcional resistente 000-13547-001)
• Peso: 4,8 kg (10,5 lbs.)
Otros
• Periodo de garantía: 2 años
• Interfaz: Pantalla táctil, controlador OP40 o OP50 vía NMEA 2000
• Idiomas: Paquete de idiomas estándar: Inglés (US), Inglés (UK), Danés, Alemán, Español, Finlandés, Francés, Griego, Islandés, Italiano, Holandés, Noruego, Portugués, Sueco, Paquete de idiomas asiático: Inglés (US), Japonés, Coreano, Tailandés, Chino, Paquete de idiomas Europa del Este: Inglés (US), Inglés (UK), Búlgaro, Alemán, Español, Francés, Hebreo, Croata, Húngaro, Italiano, Lituano, Letón, Polaco, Eslovaco, Turco, Paquete de idiomas Rusia/Ucrania: Inglés (US), Inglés (UK), Alemán, Español, Francés, Italiano, Ruso, Ucraniano, Paquete de idiomas Medio Oriente: Inglés (US), Inglés (UK), Árabe, Alemán, Español, Farsi, Francés, Italiano
