Electronics>Radars and AIS>

B&G Radar Halo24

15%
This sale ends in:
6 days 17h: 57m: 52s
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
B&G Radar Halo24
Ref.: 000-14538-001
0/5 | 0 reviews | Give your opinion

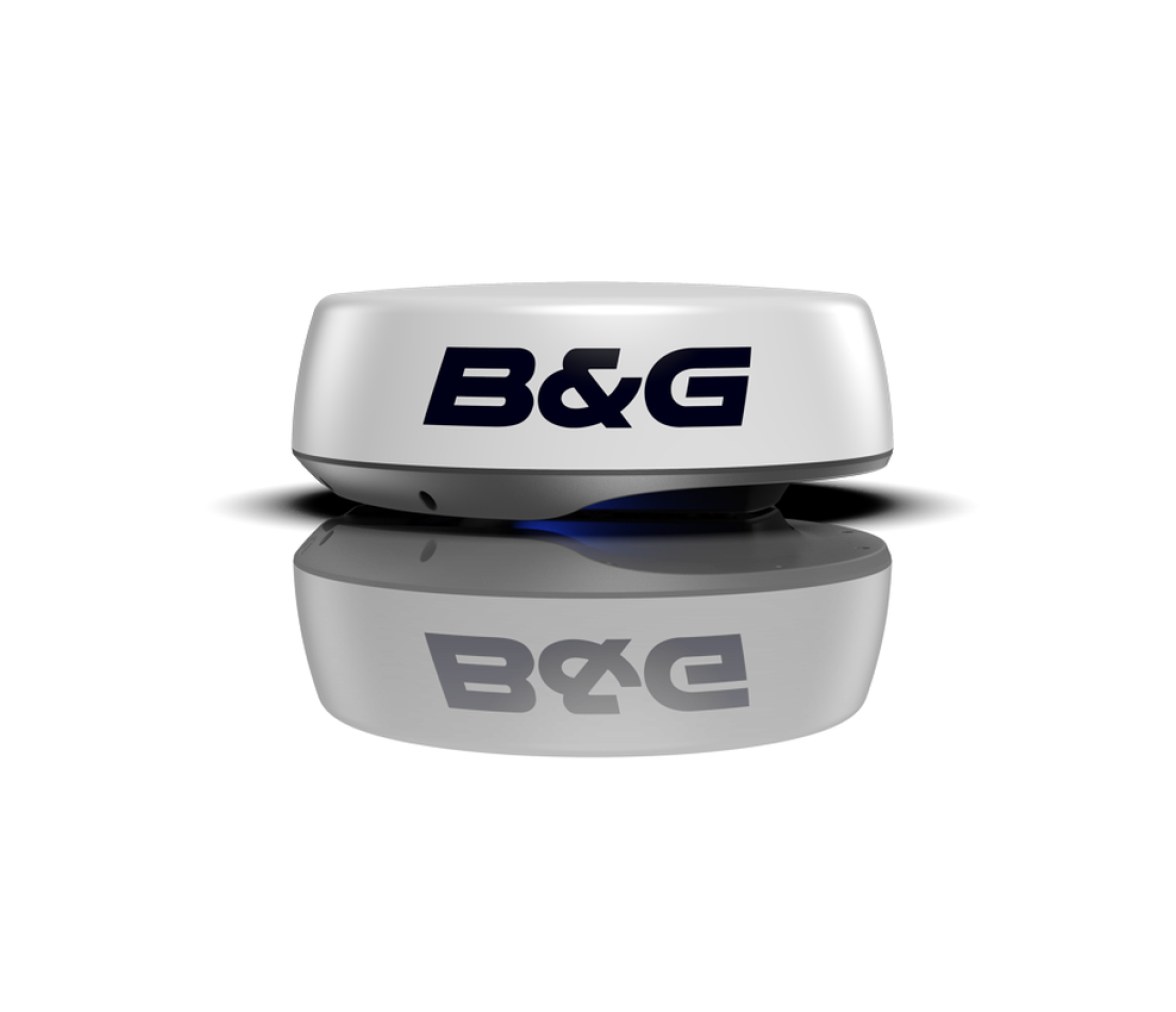

Radar B & G Halo24 is perfect for a wide range of small motor boats. The B & G HALO24 identifies hazards in an instant thanks to VelocityTrack ™ Doppler technology and offers short and long range coverage simultaneously, up to ...Read more »
3.267,00€
2.776,95€
TAX Incl.
Delivery in 7-10 días days. Buy now and receive it between Thursday 9 of December and Monday 13 of December.

* Except the products on request that depend on the receipt of the same.(+ info.)

This article has FREE SHIPPING
Any questions about this article? Here we solve your doubts
The best price, guaranteed! Have you seen it cheaper? Inform us

Radar B & G Halo24 is perfect for a wide range of small motor boats. The B & G HALO24 identifies hazards in an instant thanks to VelocityTrack ™ Doppler technology and offers short and long range coverage simultaneously, up to 48 nautical miles, integrated into a 24 "(61 cm) compact dome antenna. The Halo 24 radar offers a full 360 degrees per second sweep thanks to its 60 rpm rotation, for the first time on the market, in ranges of up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, which is the best guarantee to avoid collisions. The B & G HALO24 radar instantly leaves the standby mode of low power, offering that high speed radar coverage exactly where and when you need it. Even if your HALO24 radar is completely off, it starts in a matter of seconds, not minutes like traditional pulse radars. Whether you sail through crowded waterways or compete with poor visibility, the HALO24 radar immediately resolves the confusion to give you a clear and up-to-date idea of ​​your environment.

GENERAL DESCRIPTION

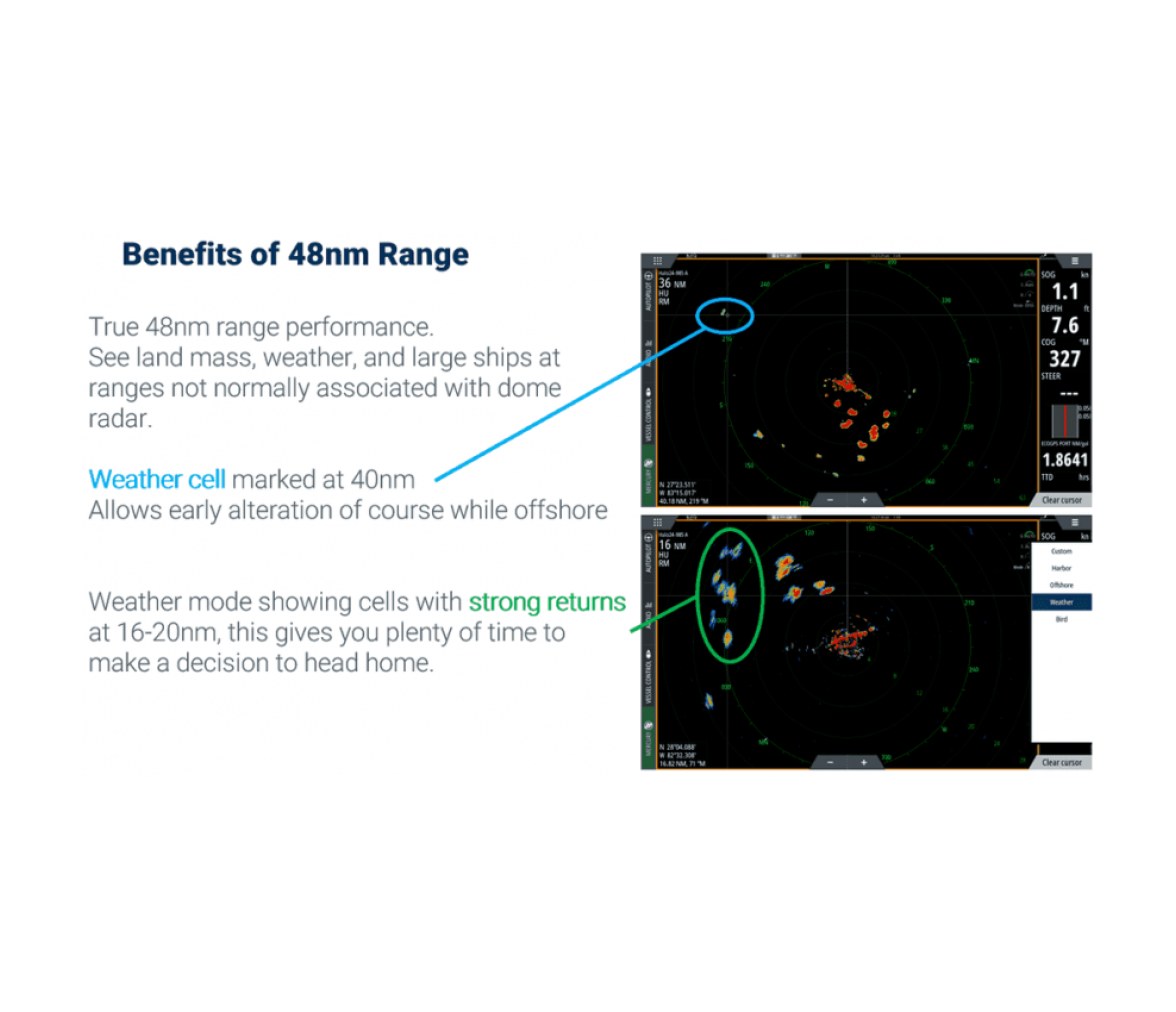

● 48 nm range from a 61 cm (24 in) dome type antenna
● Advanced pulse compression technology with beam focus

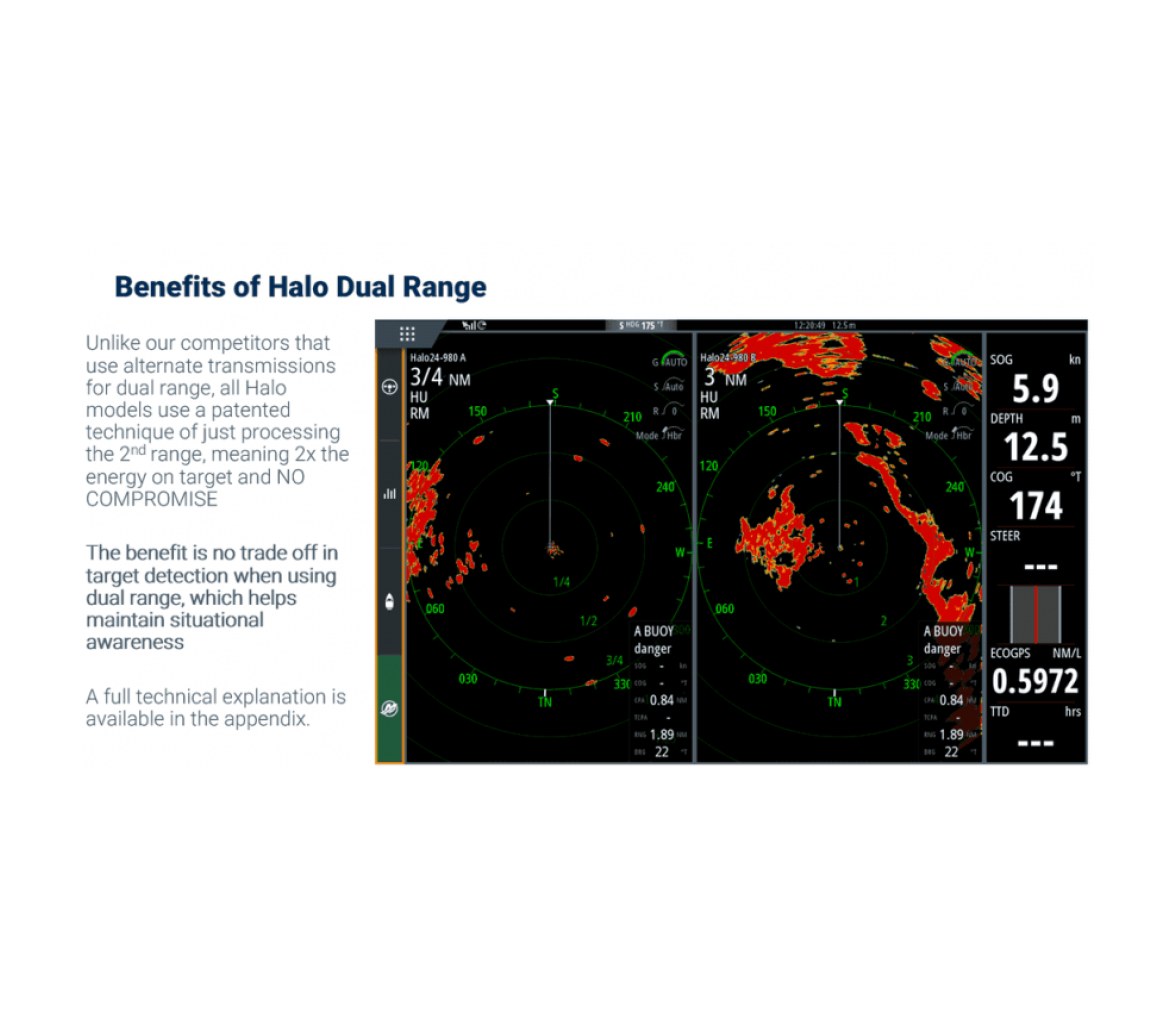

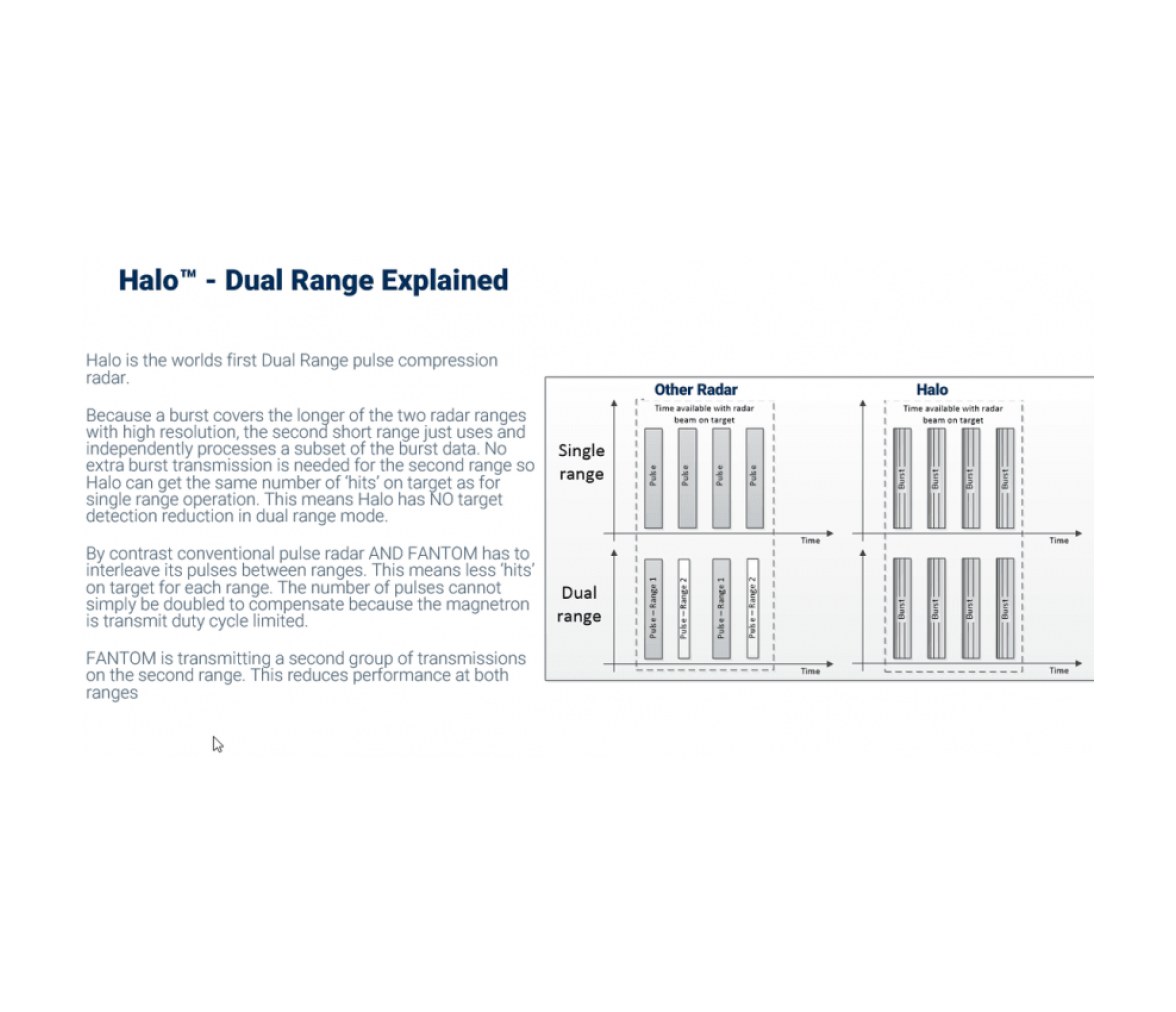

● Simultaneous operation in two ranges thanks to the Dual Range function that allows to see both near and far

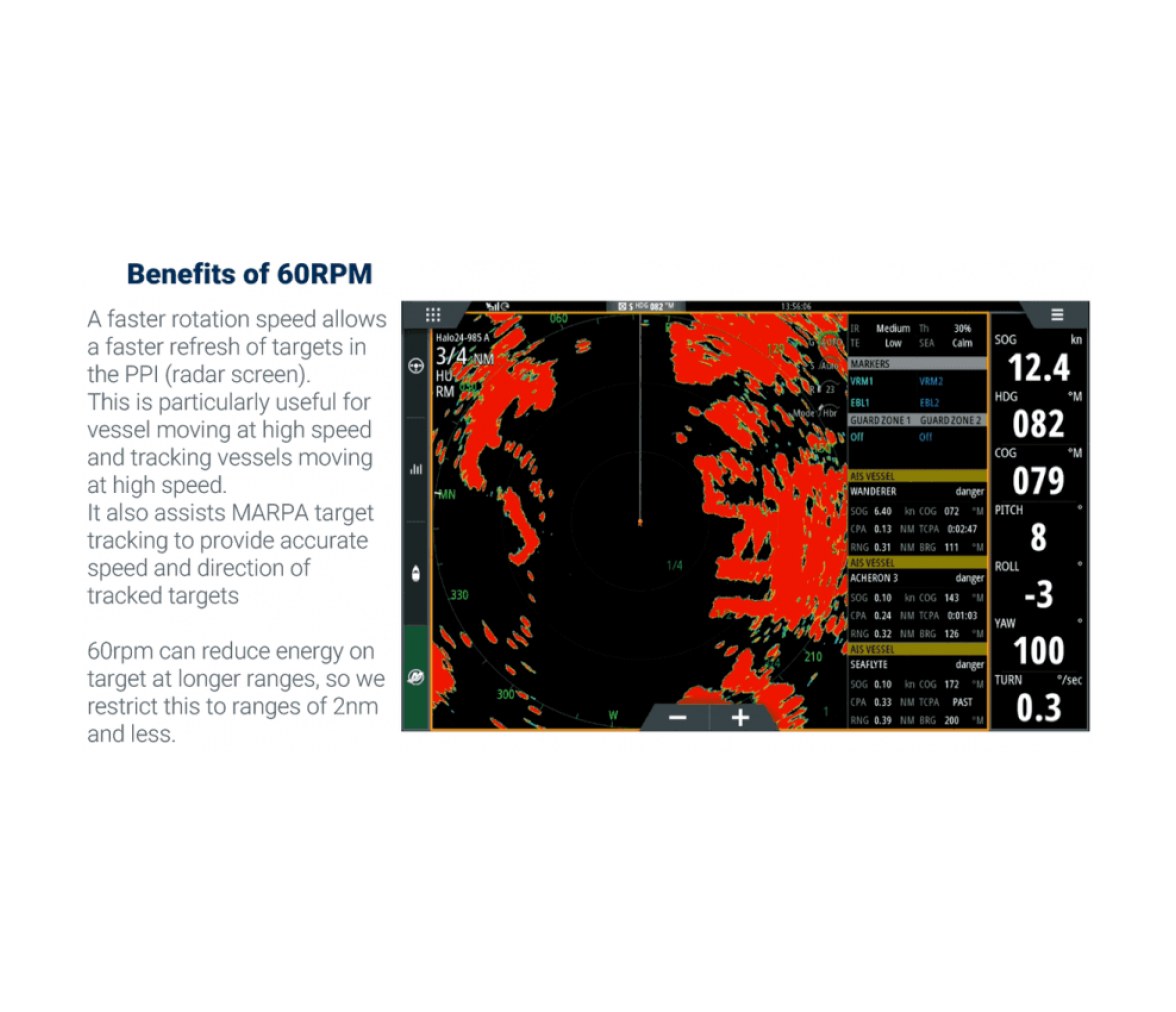

● Ultra-fast operation at 60 rpm in ranges up to 1.5 nm
● VelocityTrack ™ Doppler technology to avoid collisions
● Easy operation thanks to the different modes for port, high seas, climate and birds
● MARPA target tracking (up to 10 targets, 20 with Dual Range)
● Ready instantly from standby mode

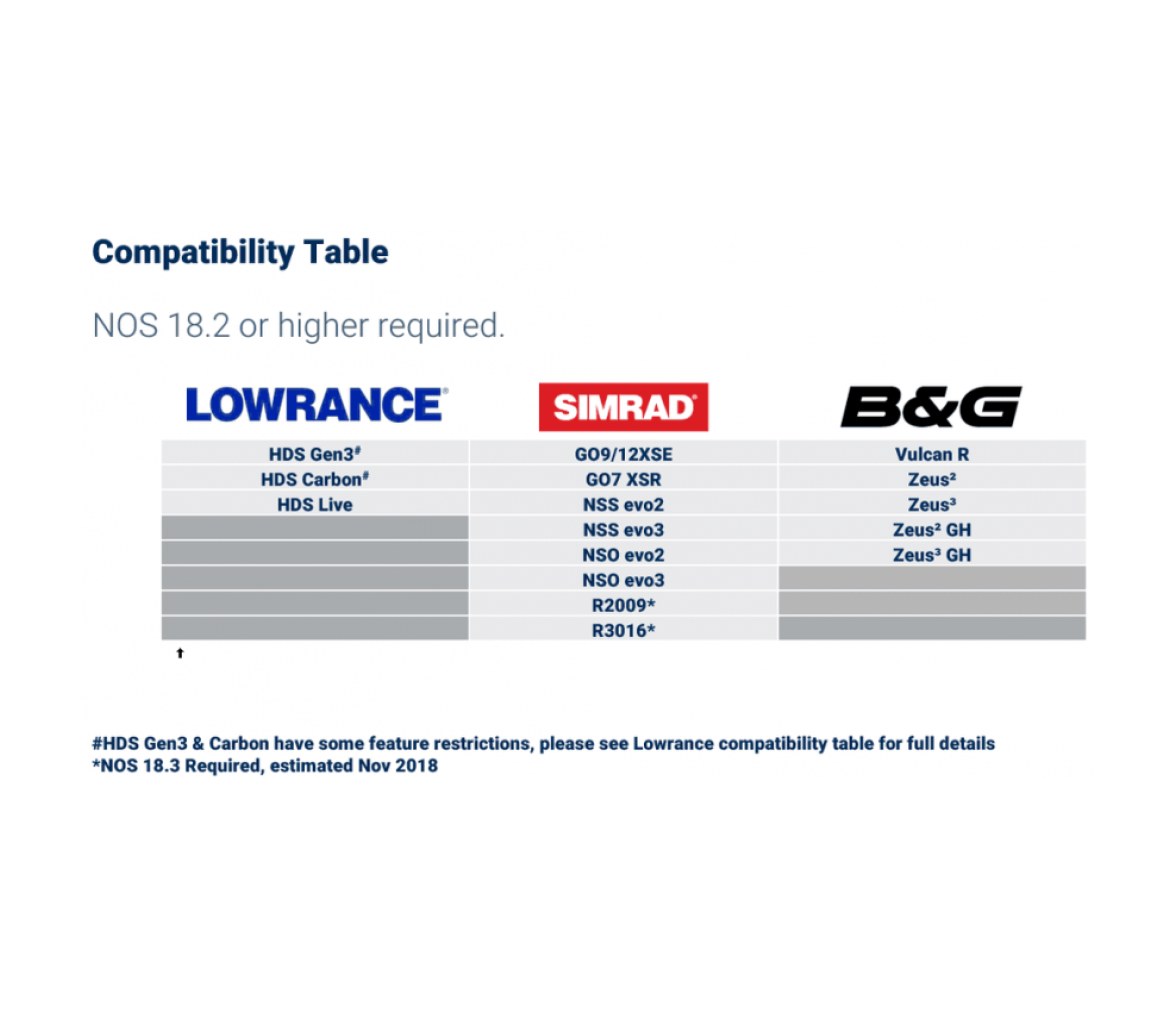

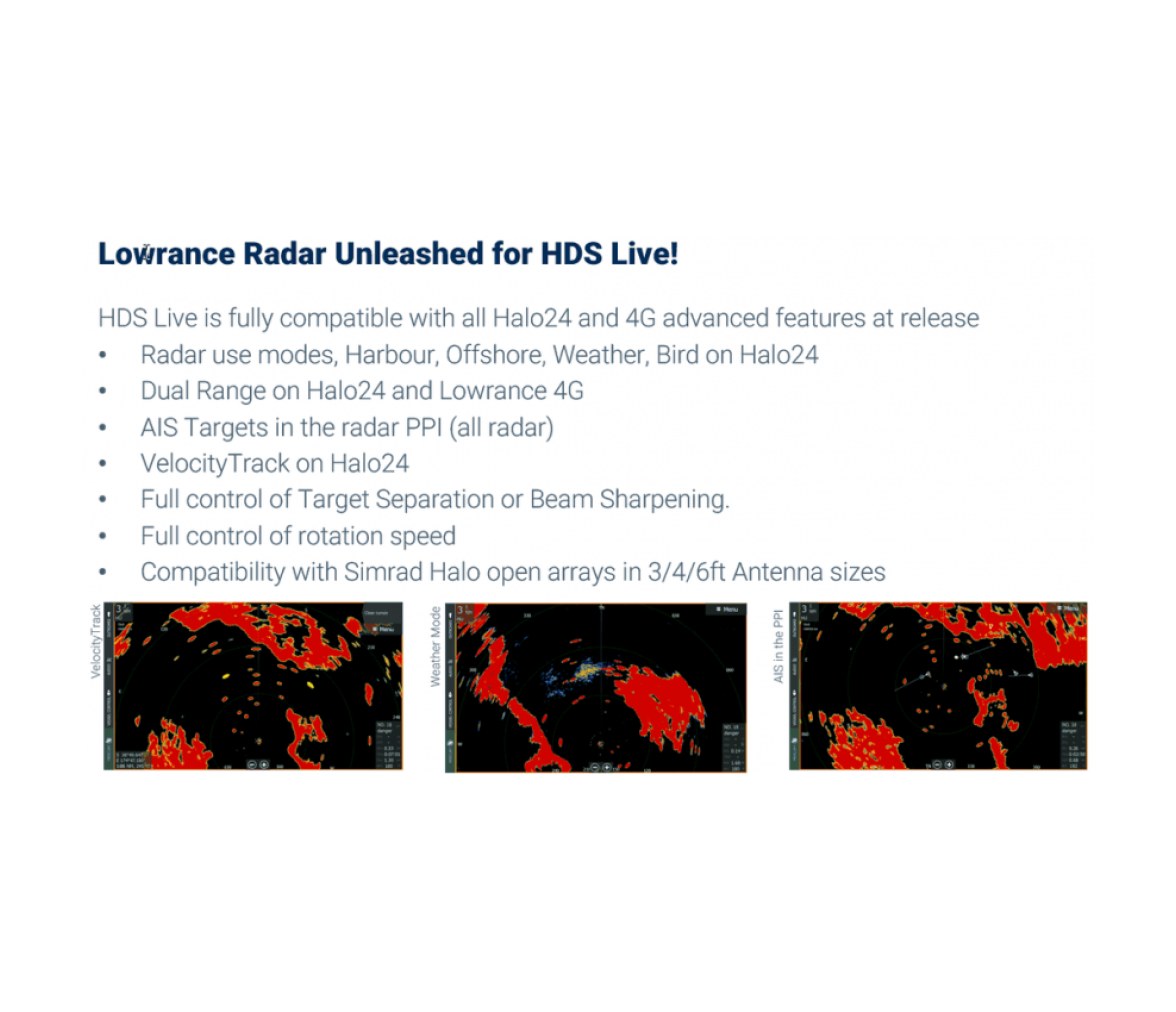

● Compatible with: HDS Gen3 *, HDS Carbon *, HDS Live, GO9 / 12XSE, GO7 XSR, NSS evo2, NSS evo3, NSO evo2, NSO evo3, R2009 *, R3016 *, Vulcan R, Zeus2, Zeus3, Zeus2 GH, Zeus3 GH. * Not compatible with the functions Dual
● Range, Control of the speed of rotation, Halo Open Array and True Motion Trails.

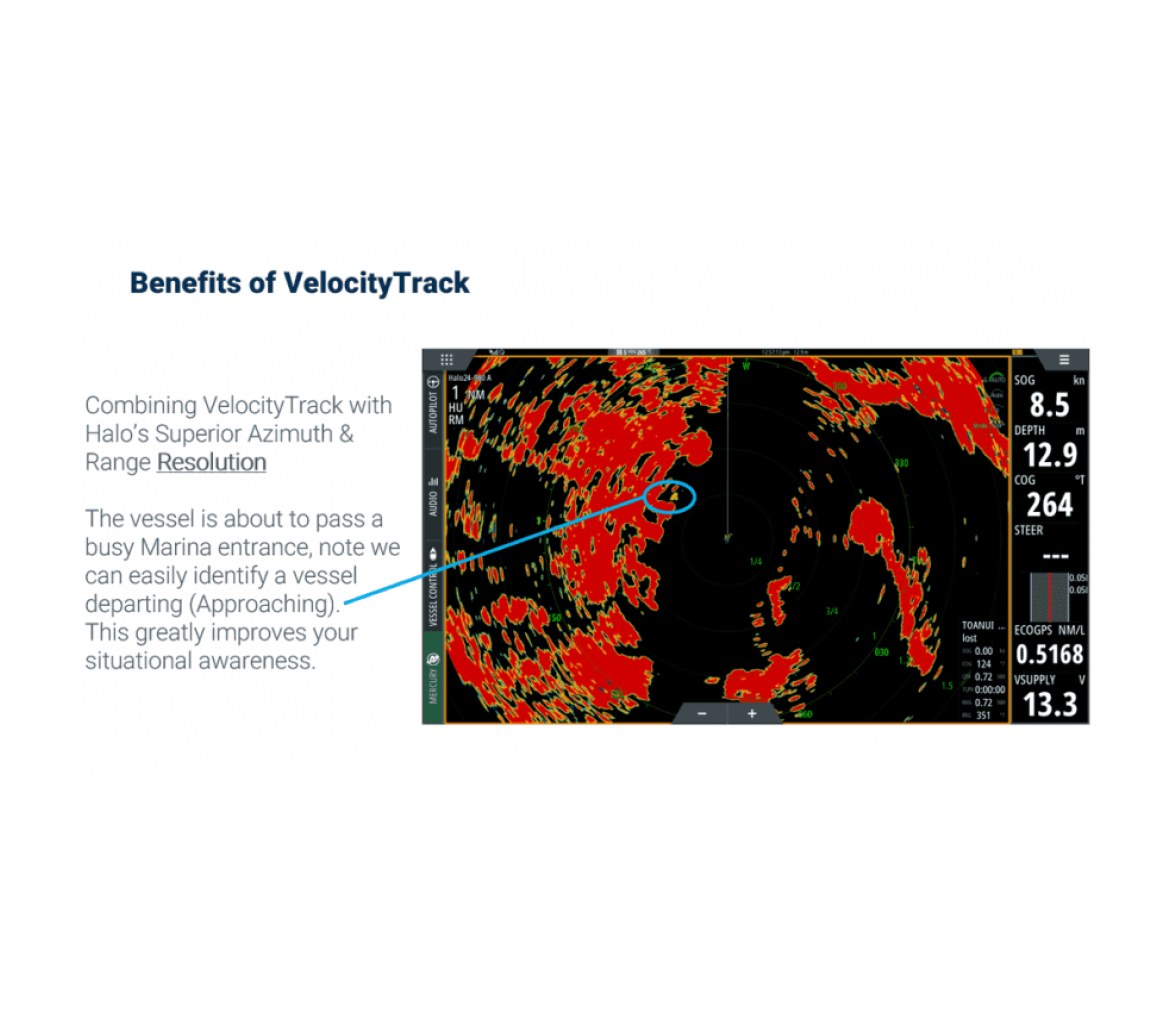

● Integrated VelocityTrack ™ Doppler Technology: VelocityTrack ™ technology provides instant visual information on the direction of travel of the targets so you know at all times if they are moving away or moving closer.
● Simple color coding highlights potential hazards, improving your situational awareness and also reducing the risk of collision. The HALO24 radar automatically checks each and every target within the specified range, so it is not necessary to manually select the individual targets and there is no limit on the number of targets that can be seen on the screen at the same time.

SPECIFICATIONS

● Operating temperature: -25 ° to + 55 ° C (-13 ° to + 130 ° F)
● Relative humidity: + 35 ° C (95 ° F), 95% RH
● Waterproof: IPX6
● Maximum relative wind speed: 51 m / sec (100 knots)
● Completed: CE, FCC (ID: RAY3G4G), IC: 4697A-3G4G, IEC60945: 2002
● Power consumption (with 10m cable) Operation: 14.5 to 27W to 13.8 V - 3.9 W (typical) to 13.8 V DC ~ 170 mA
● DC input (at the end of the radar cable): 9 V to 31.2 V DC (12/24 V systems)
● Reverse polarity protection: Yes
● Minimum starting voltage: 10.75 V DC
● Transmitter source (preheat time): Without magnetron - Instant On

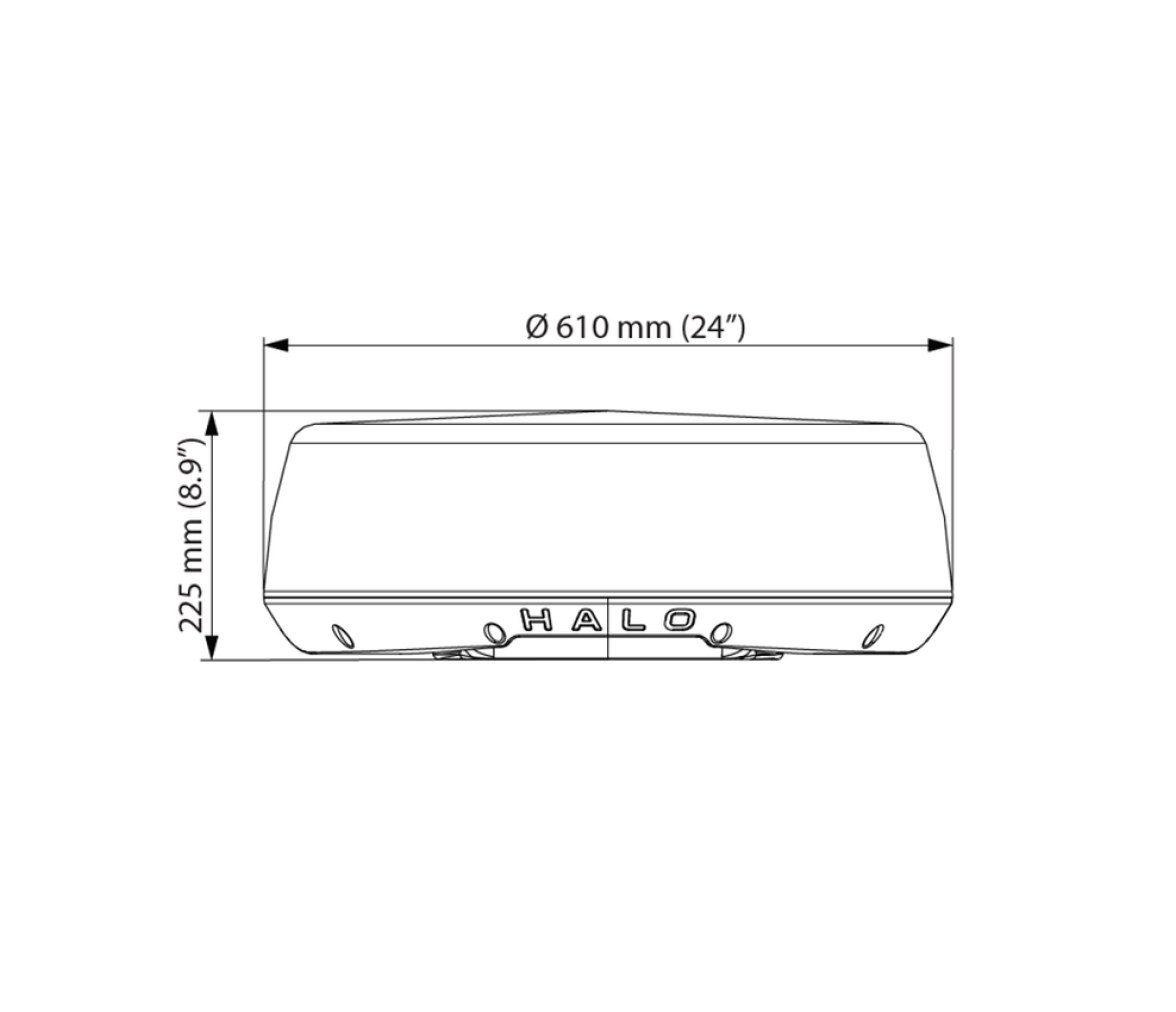

● External dimensions: Ø Diameter 610 mm (24 "), Height 225 mm (8.9")
● Scanner weight (without cable): 6.75kg (14.9 lbs)
● Radar ranges: 100 m (328 feet) to 48nm with 18 range settings, (nm / sm / km)
● Rotation (mode dependent): 20 - 60 rpm (mode dependent and MFD)
● Transmitter frequency Band X - 9.4 to 9.5 GHz
● Transmitter source (warm-up time): No Magnetron - all solid state. Instant On ™
● Polarization plane: Horizontal polarization
● Transmitter peak power output: 25W
● Minimum range: 6 m (19.7 feet)
● Repeat frequency of sweep: 700-2400 Hz (depends on the mode)
● Pulse length: 0.04 - 64 usec
● Sweep bandwidth: 48 MHz max
● Horizontal beam width (Tx and Rx antenna): 3.9 ° nominal (-3 dB wide)
● Target separation control: OFF: 3.9 ° +/- 10% (-3 dB nominal width), LOW: ~ 3.4 ° +/- 10% (-3 dB nominal width), MED: ~ 2.5 ° +/- 10 % (-3 dB nominal width), HIGH: ~ 2.0 ° +/- 10% (-3 dB nominal width)
● Vertical beam width (Tx and Rx antenna): 22 ° (-3B nominal width)
● Side lobe level (Tx and Rx antenna): Below -18 dB (within ± 10 °); Below -24 dB (out of ± 10 °)
● Noise figure: Less than 5 dB nominal

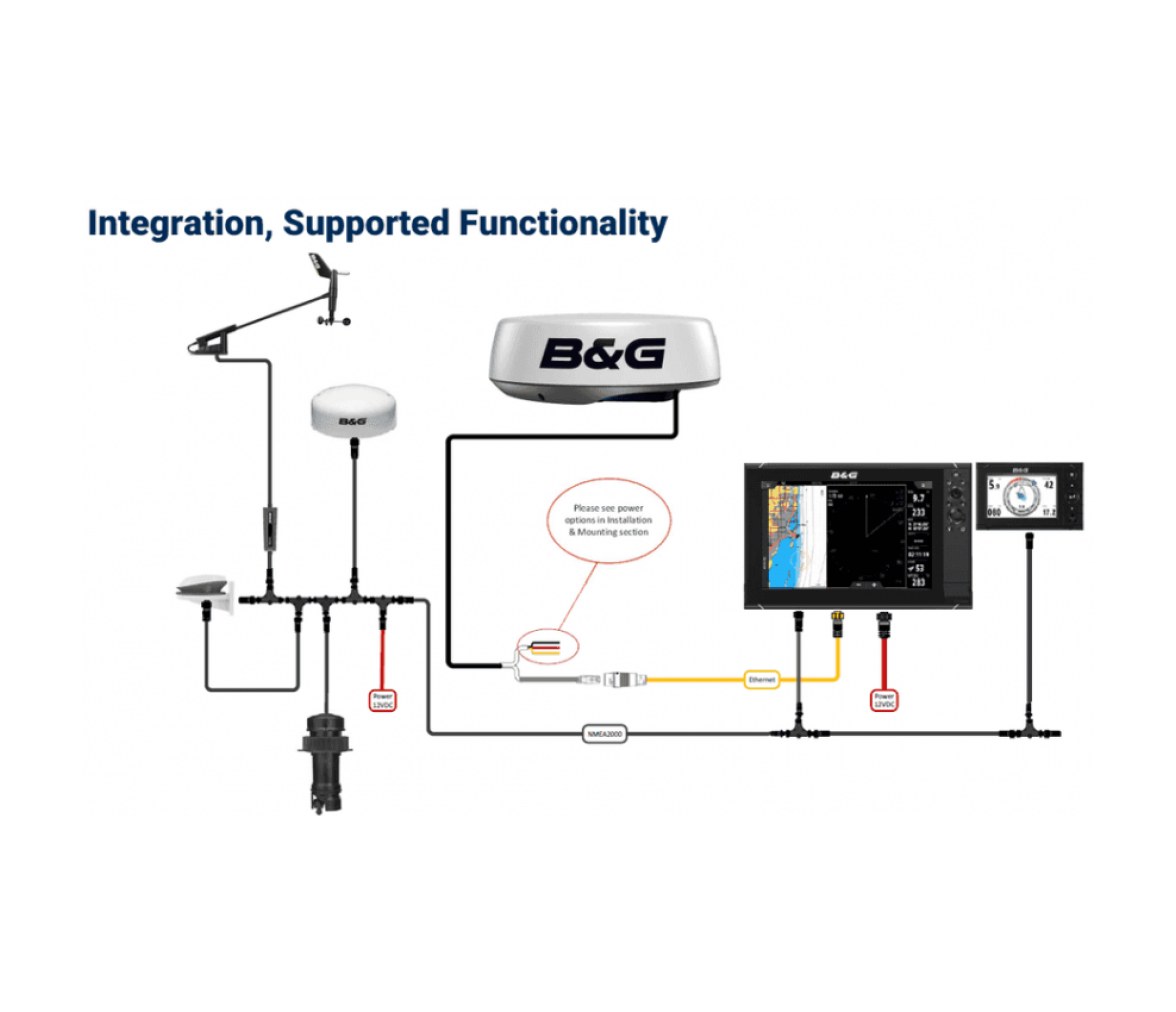

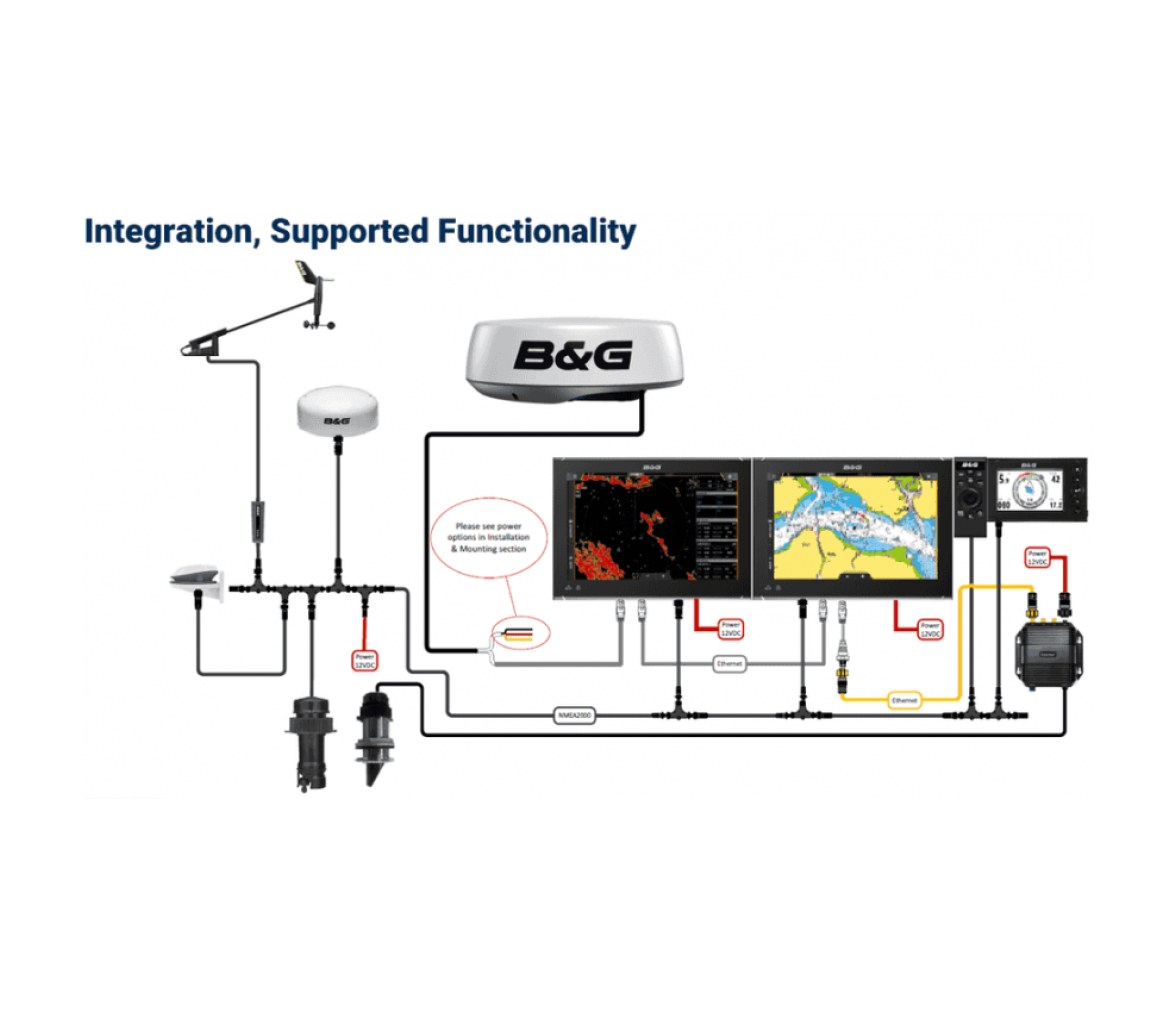

● Protocol: Ethernet 100 Base T
● Maximum length of interconnecting cable 30 m (98.5 ft) - available as an option, use NEP-2 for longer cable runs



Radar B&G Halo24 incluye: Cable 20 metros longitud, cable adaptador Ethernet para Halo Dome, RJ45 a 5 pines macho de 1,5 metros, Conector Estanco protector cable adaptador Ethernet, Documentación y plantilla de montaje.
