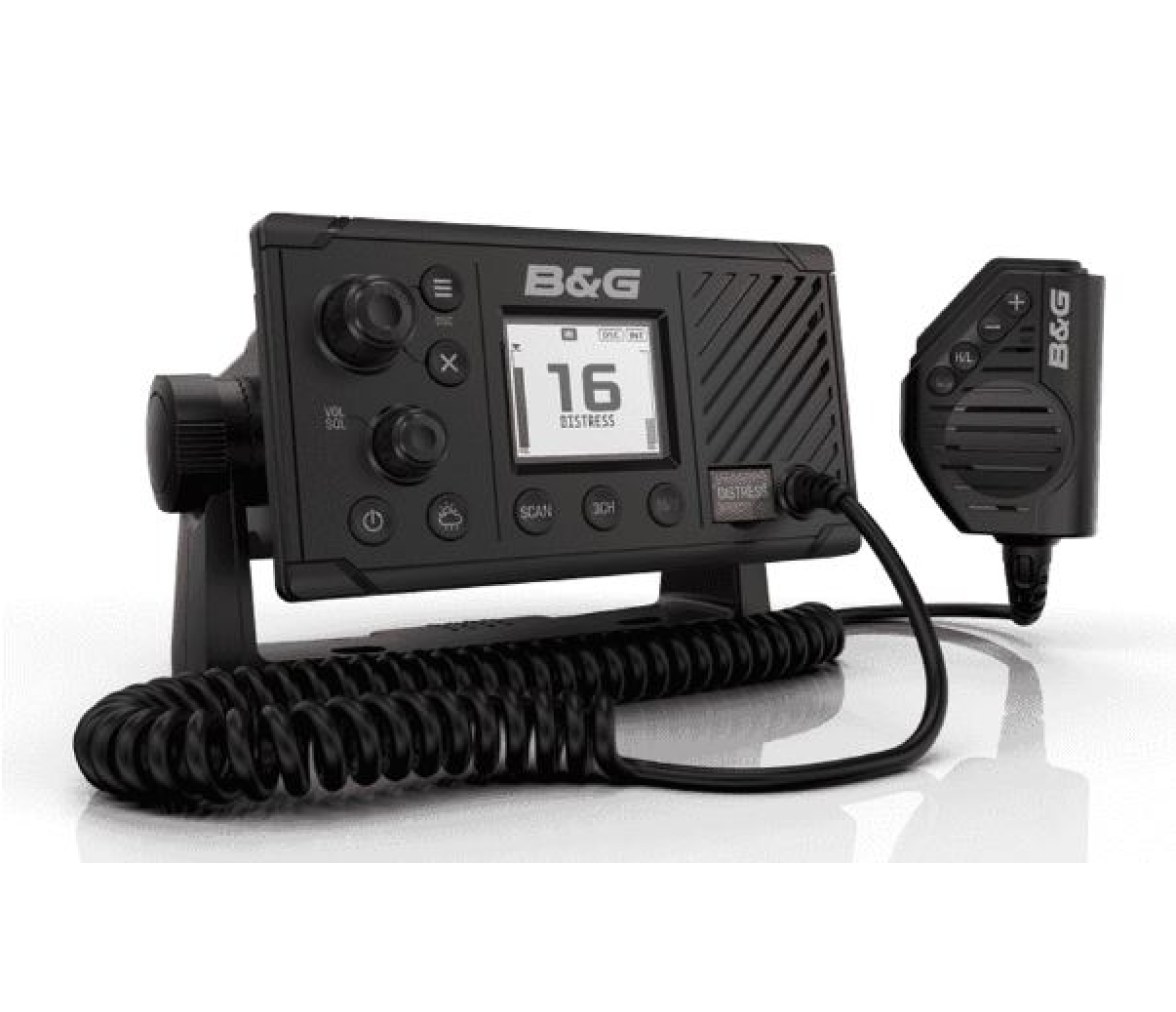

B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
B&G V20S DSC VHF Radio
Ref.: 000-14492-001
0/5 | 0 reviews | Give your opinion

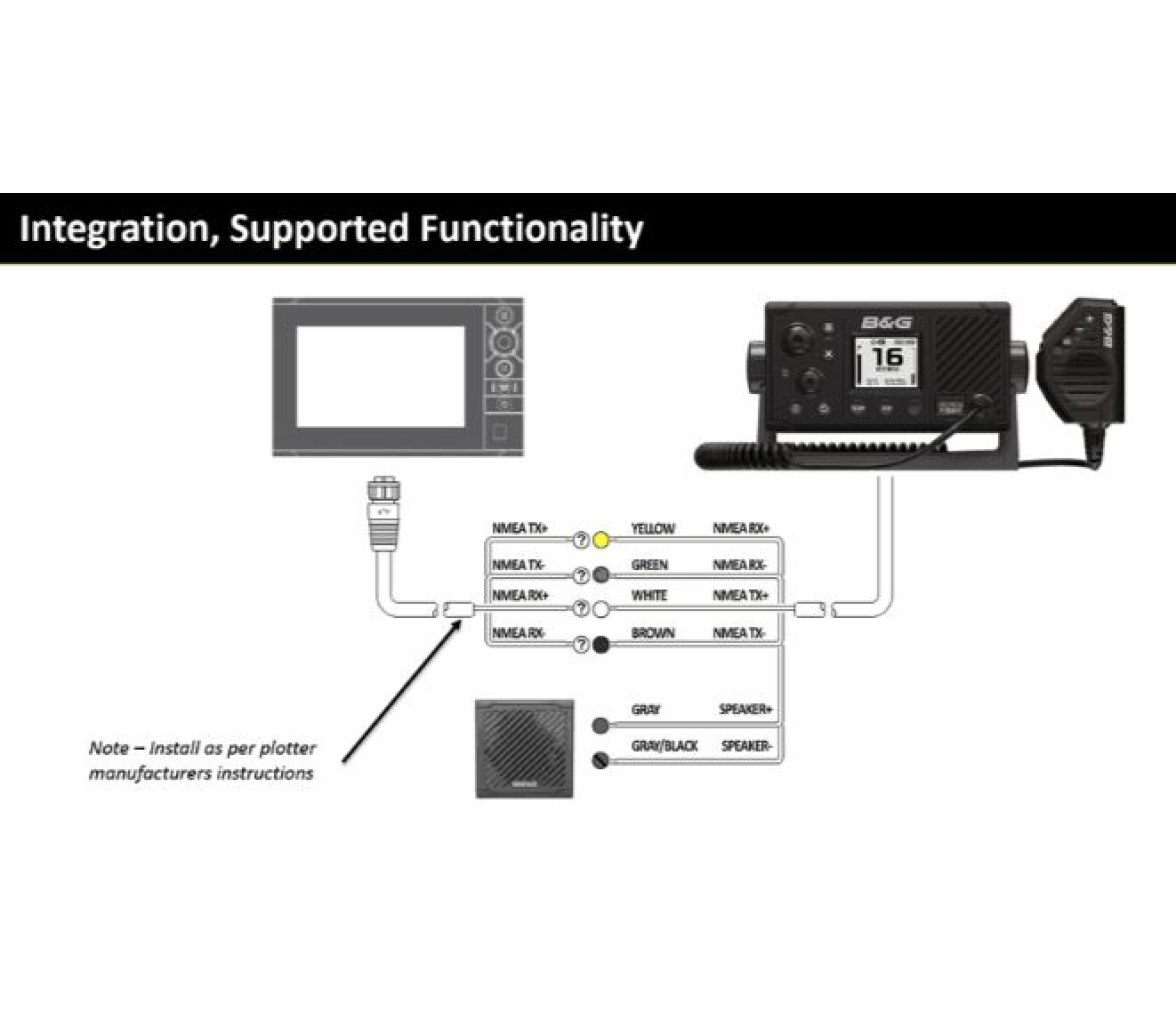

B&G V20S fixed mount class D DSC VHF radio: Entry level VHF radio with NMEA2000 connectivity for GPS position, backlight control and night mode grouping with B&G MFD’s. Built in GPS. Conforms to new 2018 EU Standards.   SPECIFI...Read more »
404,14€
343,55€
TAX Incl.
Delivery in 7-10 días days. Buy now and receive it between Thursday 9 of December and Monday 13 of December.

* Except the products on request that depend on the receipt of the same.(+ info.)

This article has FREE SHIPPING
Any questions about this article? Here we solve your doubts
The best price, guaranteed! Have you seen it cheaper? Inform us

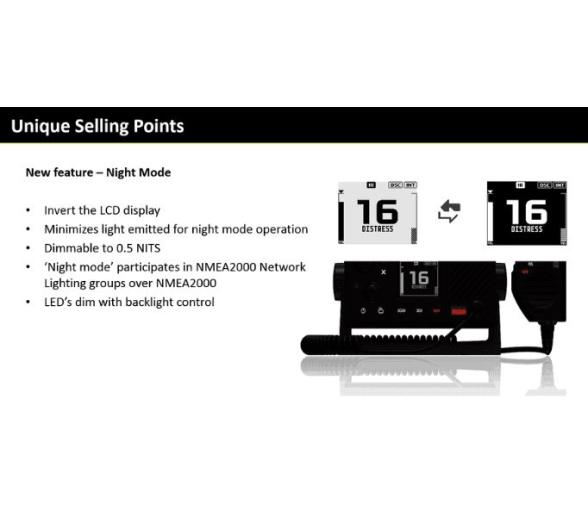

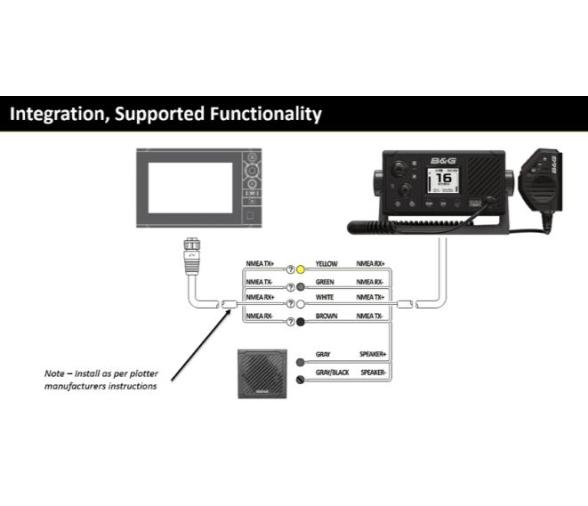

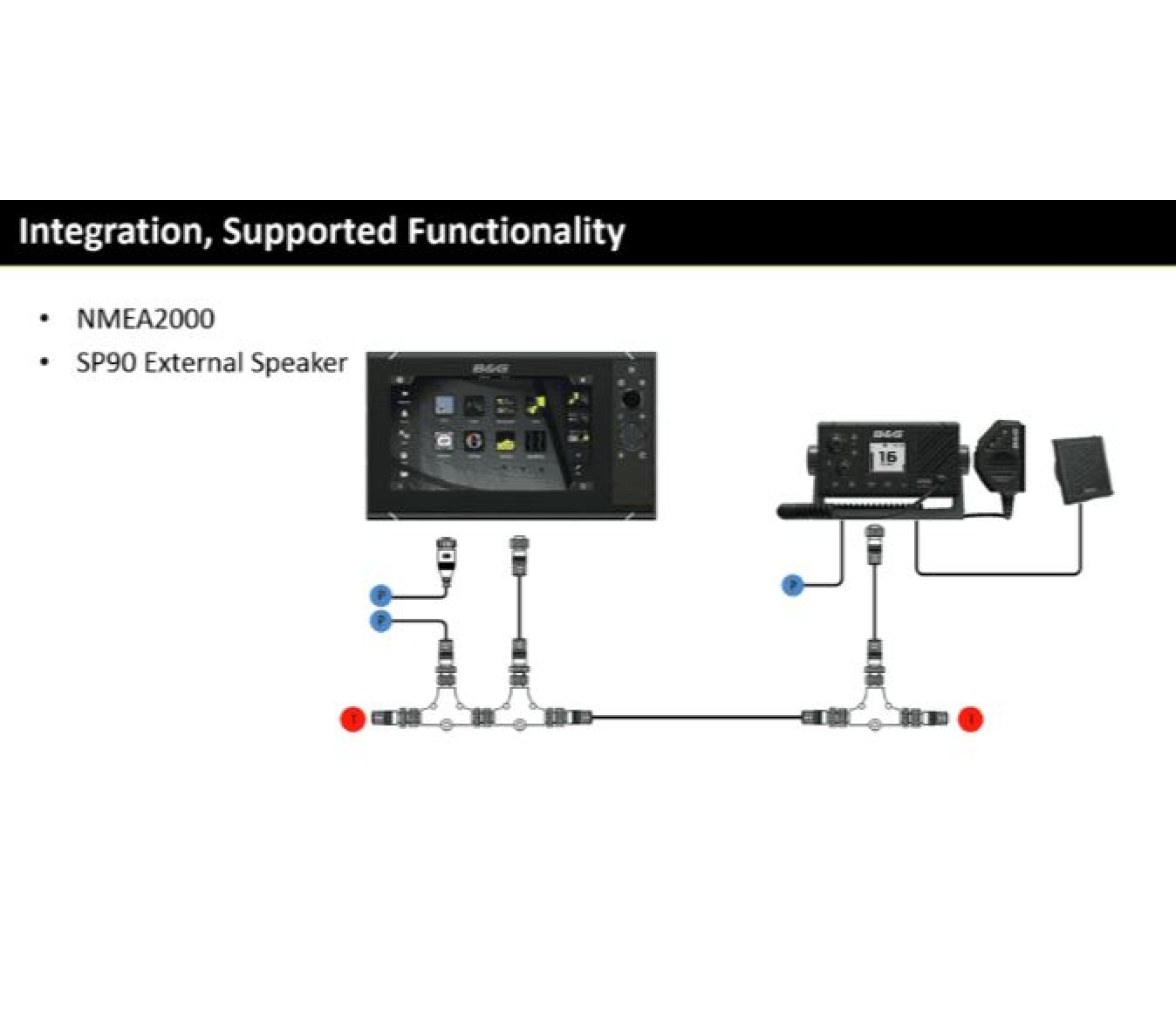

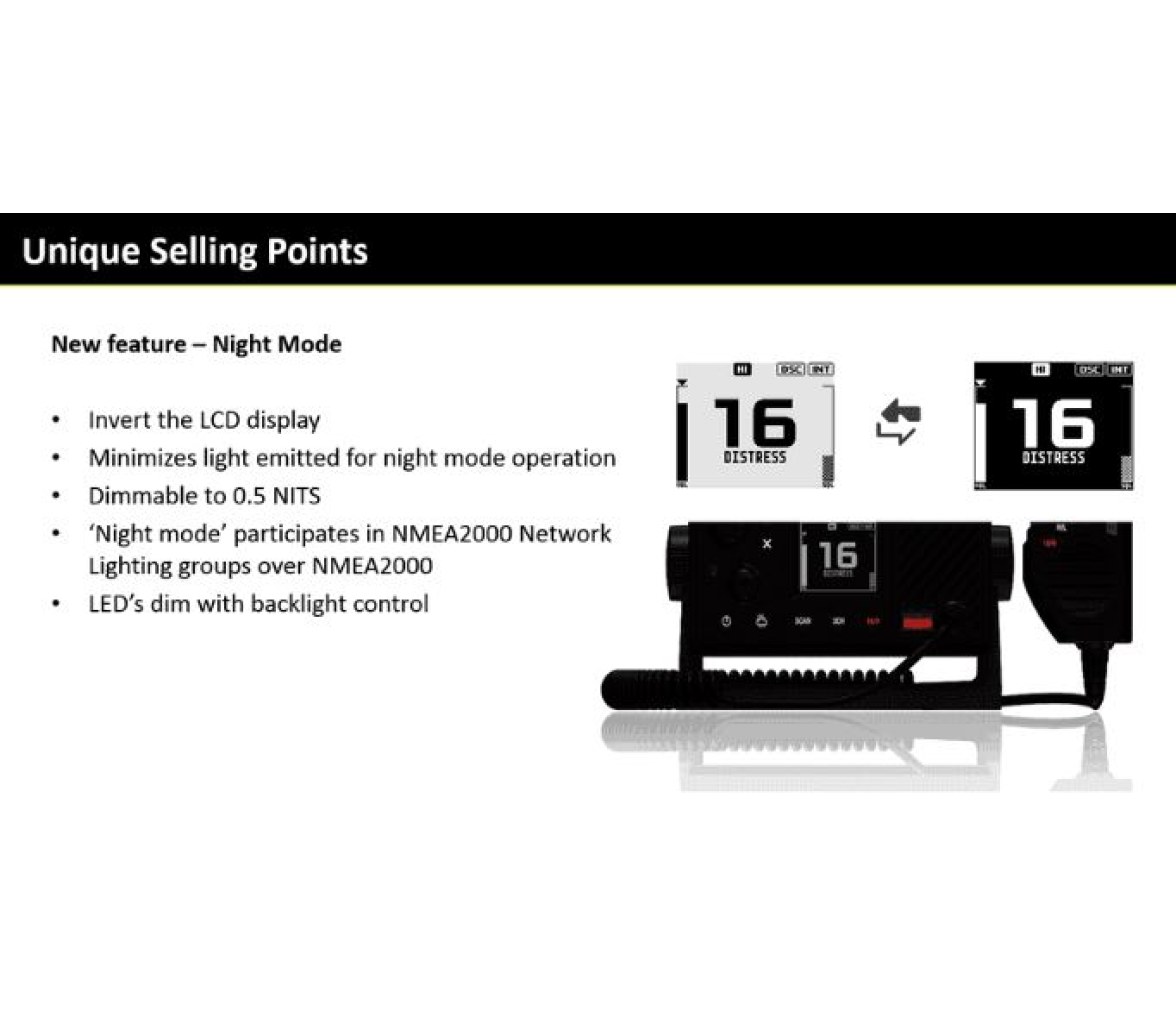

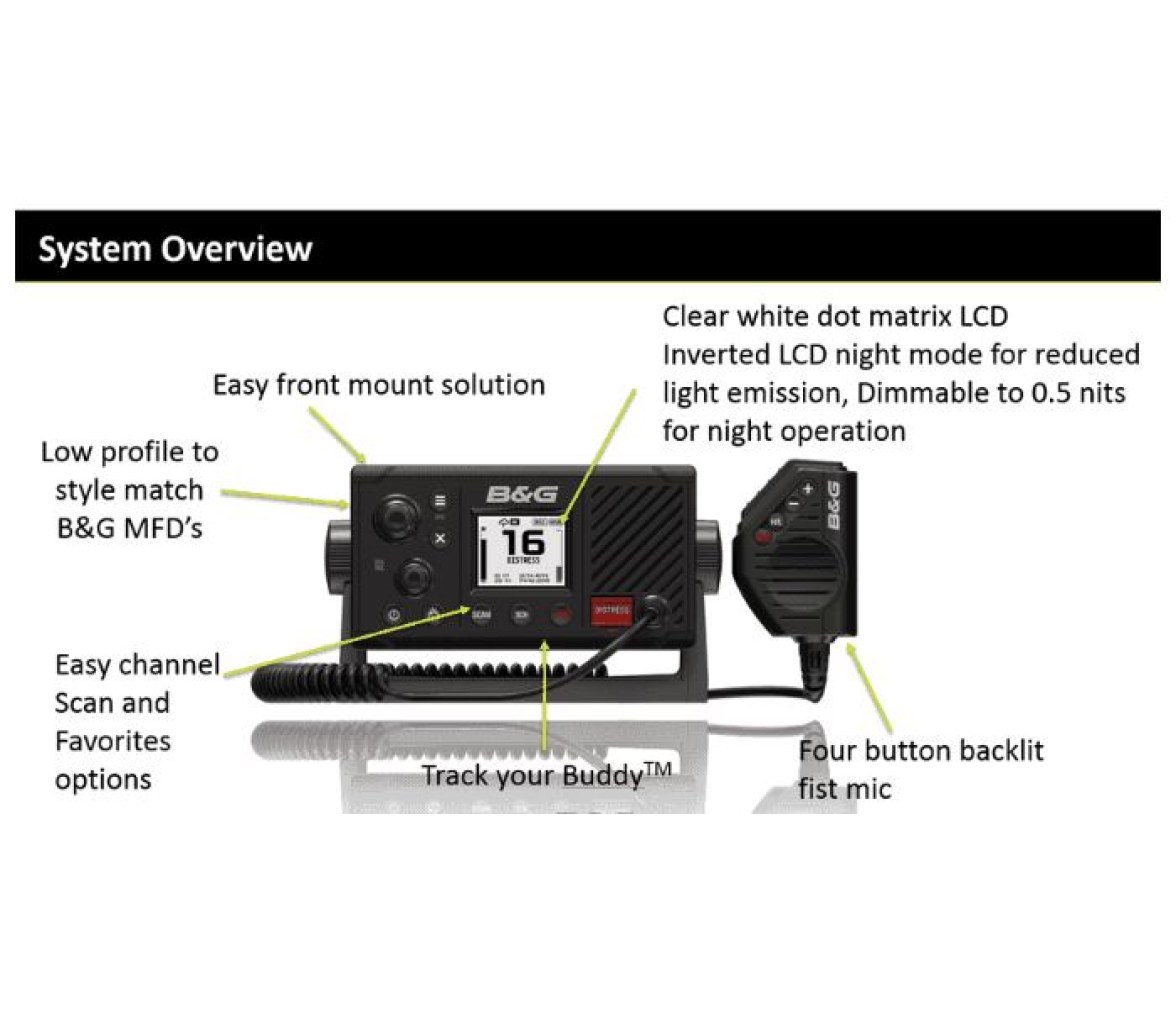

B&G V20S fixed mount class D DSC VHF radio: Entry level VHF radio with NMEA2000 connectivity for GPS position, backlight control and night mode grouping with B&G MFD’s. Built in GPS. Conforms to new 2018 EU Standards.


SPECIFICATIONS
 Frequency Range: Transmit 156.025~157.425 MHz
 Frequency Range: Receive 156.050~163.275 MHz
 Number Of Channels US / INT
 Oscillate Mode PLL
 Modulation FM(16KOG3E) DSC(16K0G2B)
 Channel Spacing 25KHz
 Frequency Stability ±5 PPM
 Temperature range_-15°C to +55°C (5°F to 131°F)
 Normal Working Voltage +13.6 V DC
 Minimum operating Voltage =10 V DC
 Low battery detect Voltage 10.5 ± 0.5 V DC
 Digital Selectivity Calling (DSC) Class D
 Intermediate Frequency : 1st 38.85/21.7 MHz
 Intermediate Frequency : 2nd 450 KHz
 Sensitivity : 12dB SINAD =-6 dBuV(EMF)
 Squelch Sensitivity: at tight = 6 dBuV(EMF)
 Spurious Response Rejection Ratio =70 dB
 Adjacent Channel Selectivity =70 dB
 Intermodulation Response =68 dB
 S/N at 3KHz Dev. =40 dB
 Audio Output Power At THD 10% =2.5 W
 Audio Distortion =10 %
 Audio Response +1 to -3dB of 6dB/octave from 300hz to 3kHz dB
 Current Drain : Max Audio Power =1.5 A
 Current Drain : Stand-By =0.5 A
 2ND RX Sensitivity For 12dB SINAD = 0 dBuV(EMF)
 2ND RX bit error ratio@-107dBm = 10-2
 Frequency error =±1.5KHz
 RF Power Hi23W ± 2W :Lo 0.8W ± 0.2W
 Maximum Deviation =± 5 KHz
 S/N at 3KHz Dev. =40 dB
 Modulation Distortion ±3KHz =10 %
 Audio Response at 1KHz Dev. +1 to -3dB of 6dB/octave from 300hz to 3KHz
 Spurious/Harmonic Emissions: Hi/LO =0.25uW
 Modulation Sensitivity =15 mV
 Current Drain At 12V DC Hi Power =6A: Lo Power =1.5A
 DSC TX deviation at 1.3K 2.6±0.26 KHz
 DSC TX deviation at 2.1K 4.2±0.42KHz
 ATIS TX deviation at 1.3 KHz 1.3±0.13 KHz
 ATIS TX deviation at 2.1 KHz 2.1±0.21 KHz
