B&G WS310 Wind Sensor Pack

15%
This sale ends in:
7 days 3h: 1m: 4s
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
B&G WS310 Wind Sensor Pack
Ref.: 000-14382-001
0/5 | 0 reviews | Give your opinion

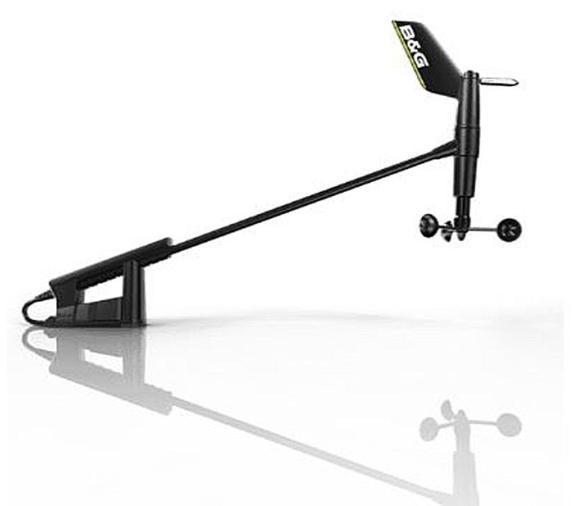

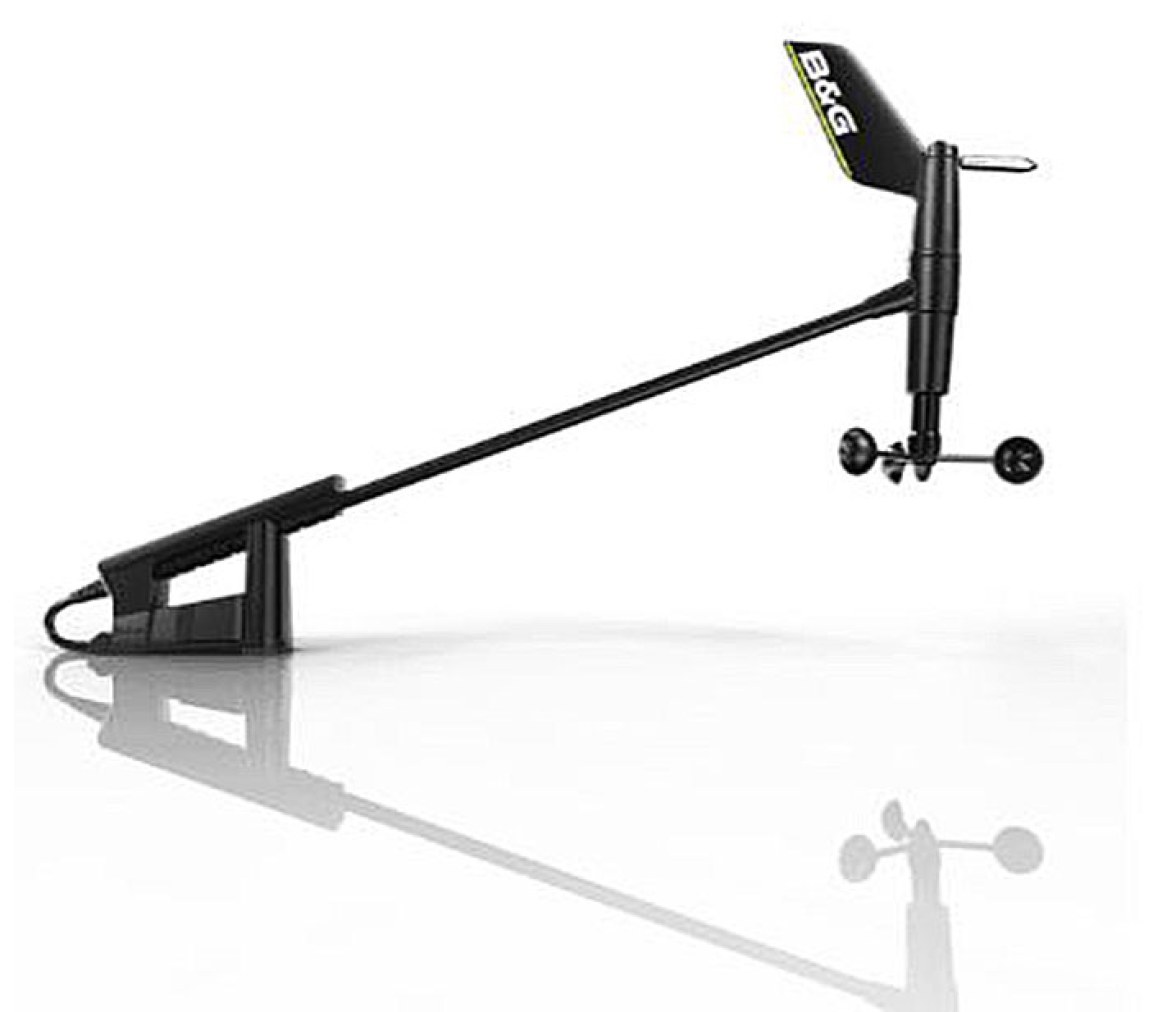

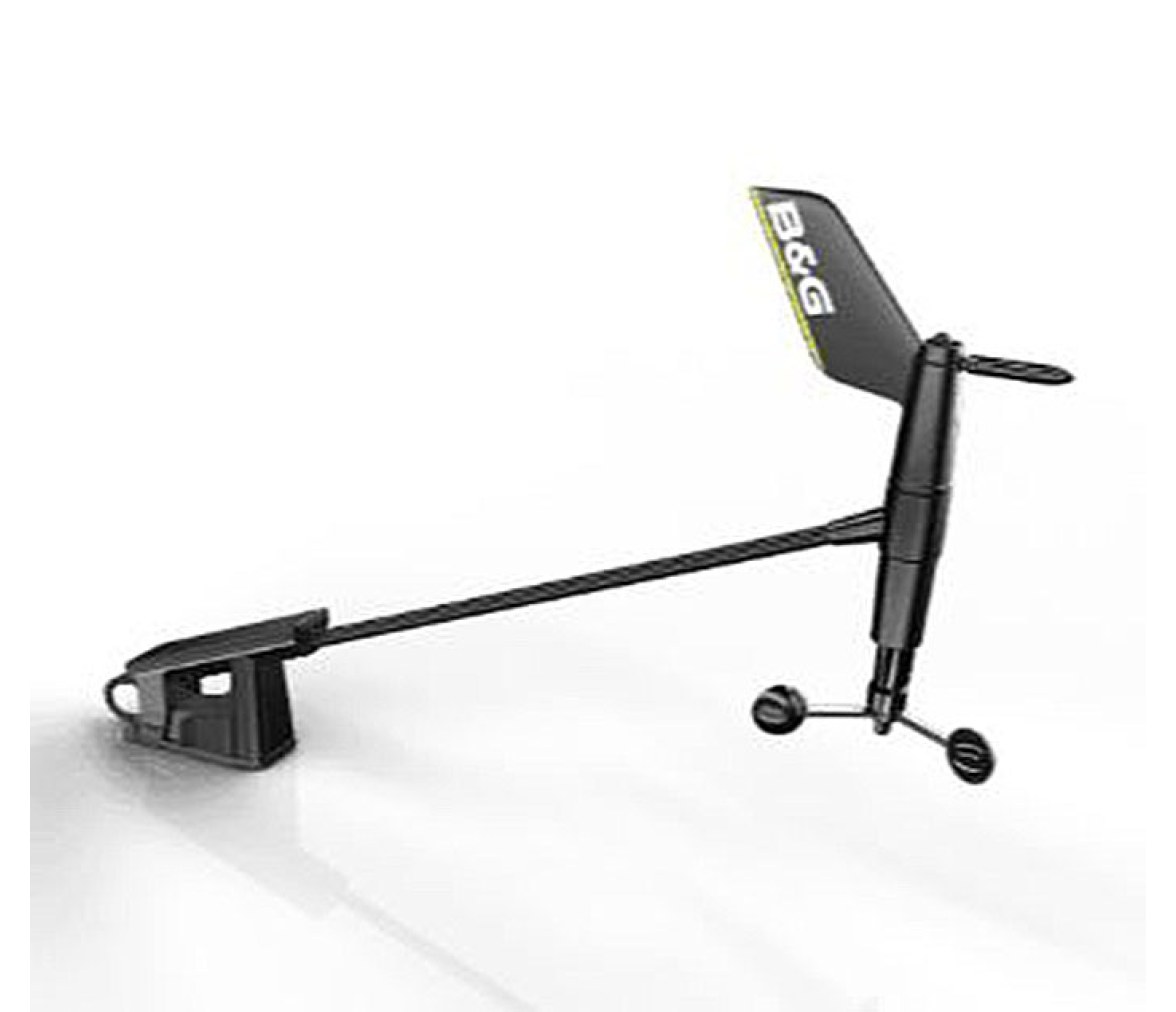

Wind Sensor B & G WS310 designed to provide high precision. The wind arm B & G WS310 allows us a wide connectivity with direct output NMEA0183 or connection through the interface to a NMEA 2000 network. (The interface is sold s...Read more »
664,29€
564,65€
TAX Incl.
No stock.

Wind Sensor B & G WS310 designed to provide high precision. The wind arm B & G WS310 allows us a wide connectivity with direct output NMEA0183 or connection through the interface to a NMEA 2000 network. (The interface is sold separately or in pack with the WS310 wind arm.) See the options. The new range of high precision B & G WS300 wind sensors is the evolution of their previous models and they have been developed to provide high accuracy wind data in all conditions and at all sailing points. The B & G WS300 series has been compared with multiple sensors and more than 500 individual wind tunnel tests have been carried out. (Accuracy of angle <1 degree - Accuracy of speed <0.2kt or 5%)

● High precision: to improve the performance of the instrumentation or navigation with automatic pilot. The high performance aerodynamic design is the result of more than 500 individual wind tunnel tests.

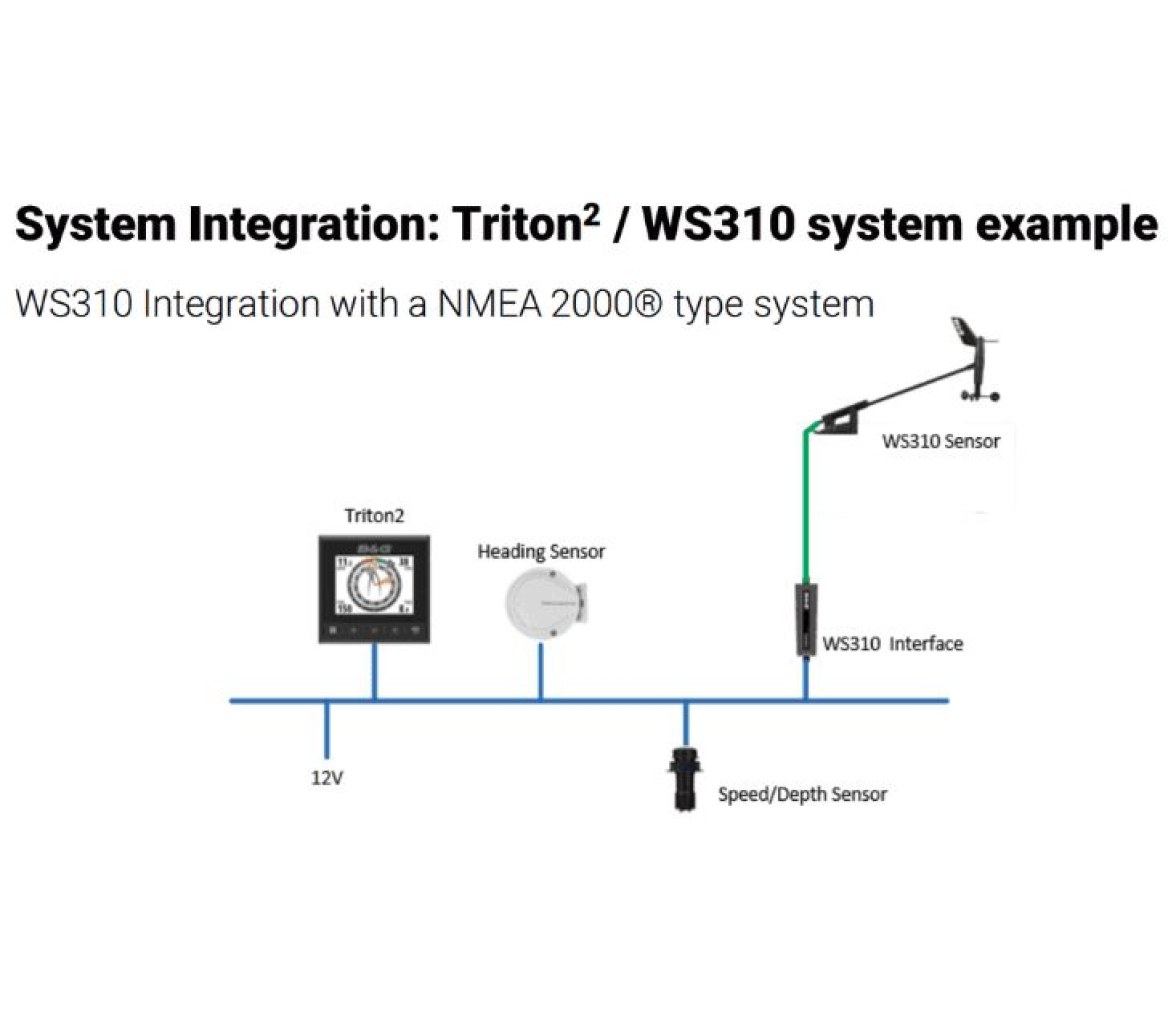

● Wide compatibility: direct NMEA0183 output or connection through the interface to an NMEA2000 network.

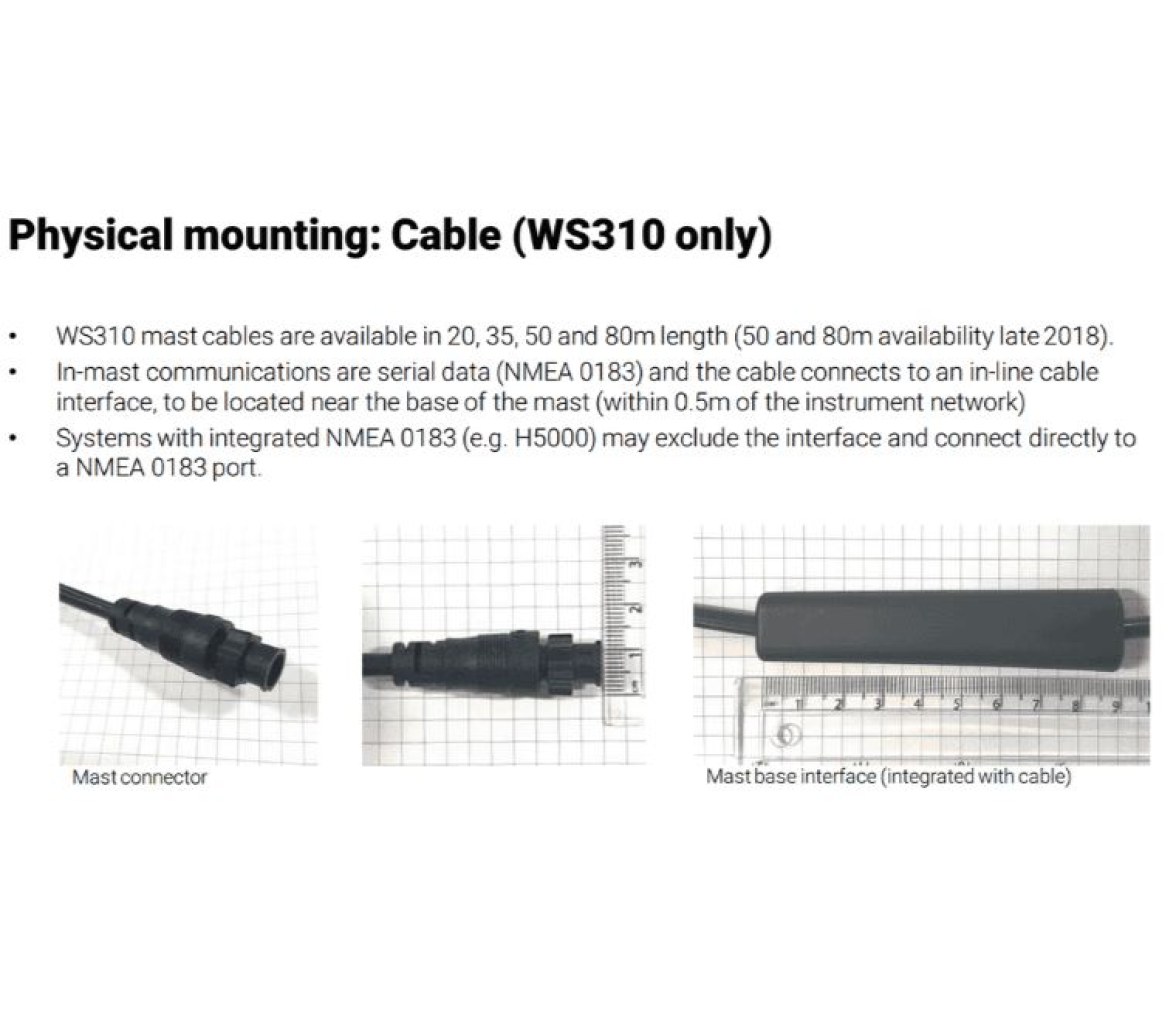

● Direct installation. Single cable with sections of up to 80 meters in length (see options)

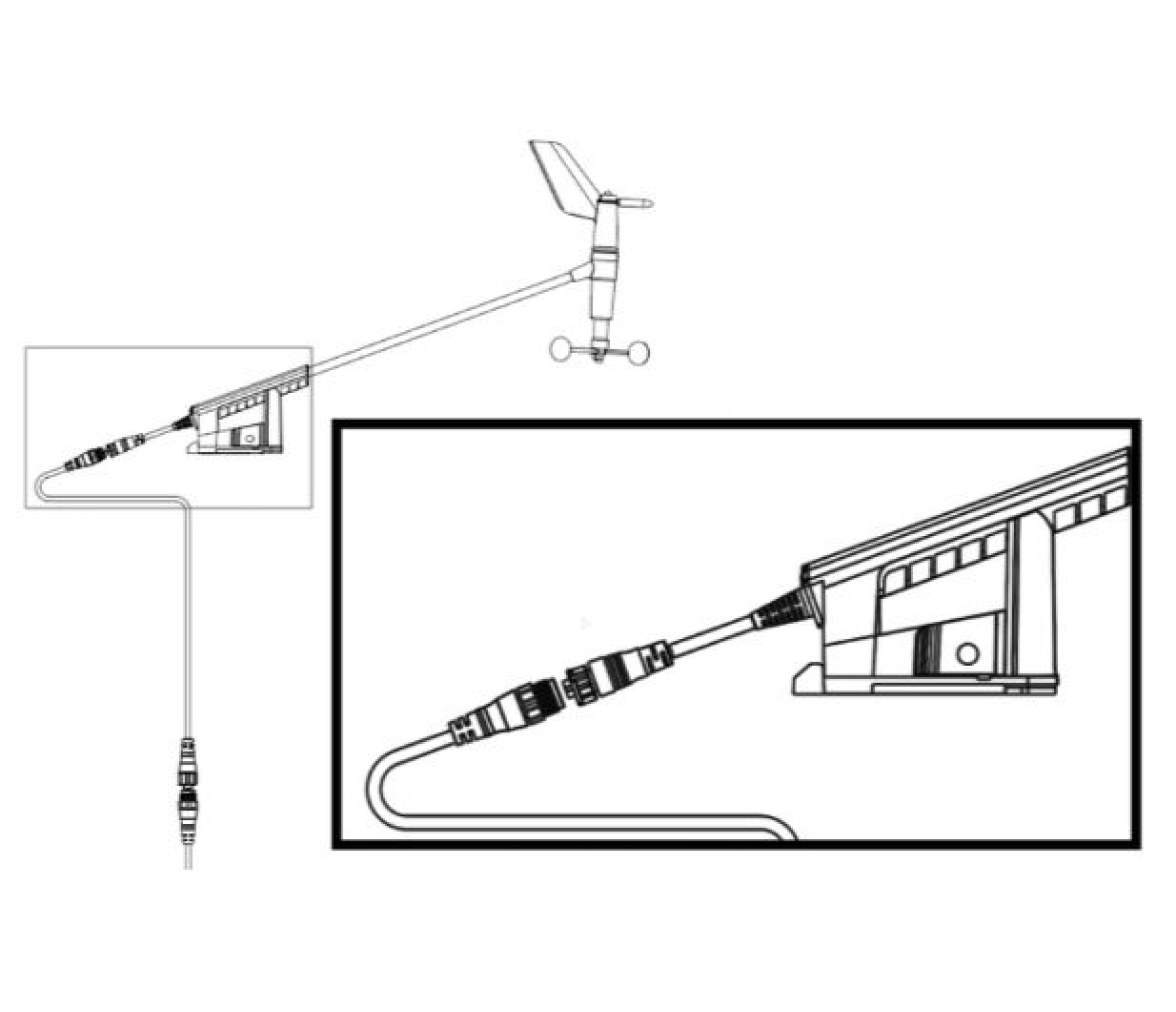

● Same installation and anchors as previous models of B & G 508 and 608.

TECHNICAL SPECIFICATIONS B & G WS310

● Wind range: 0,5-90 knots
● Accuracy in wind speed: +/- 0.2 knots (from 2-80 knots)
● Accuracy in the wind angle: +/- 0.5 degrees
● Cable options: 20,35,50 or 80 meters of cable (depending on your chosen options)
● Voltage: 12V
● Consumption: 15mA @ 12V / <0.2 W
● Sensor dimensions: 500 x 330 x 50 MM
● Weight: 0.3 Kg (Only the sensor without cable)
● Working temperature -15ºC to + 55ºC
● Water resistant: IPX6 (spray) IPX7 (Immersion)
● Bluetooth: No
● Wireless: No
● Nmea2000: With the interface option

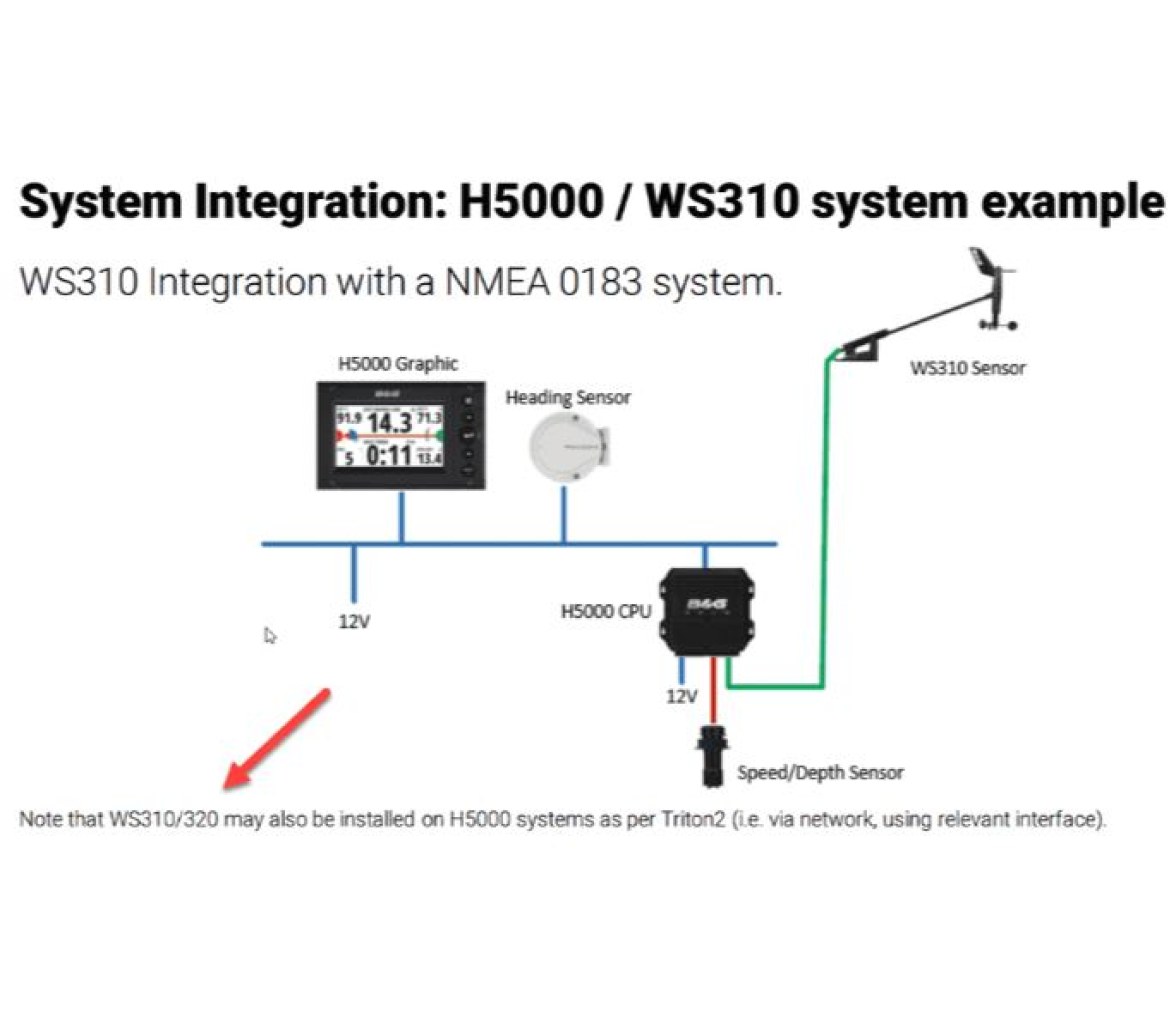

● NMEA0183: sensor output to the interface: MWV, R @ 10Hz (For the direct connection interface NMEA 0183 it can be excluded in some cases)

SPECIFICATIONS OF THE WIRELESS INTERFACE FOR B & G WS310

(Optional):

● Built-in 0.5 meter cable
● Power: 12 volts through the network.
● Consumption: 15mA @ 12V / <0.2 W
● Dimensions: 90 x 20 x 10mm
● Weight with the included cable: 0.1Kg
● Water resistant: IPX7
● Working temperature -15ºC to + 55ºC
● Bluetooth: No
● Wireless: No
● Nmea2000: 1 x Micro-C Port, 1 LEN
● NMEA0183: NMEA Input 0183 MWV, R (For the exclusive use of the WS310 wind arm)

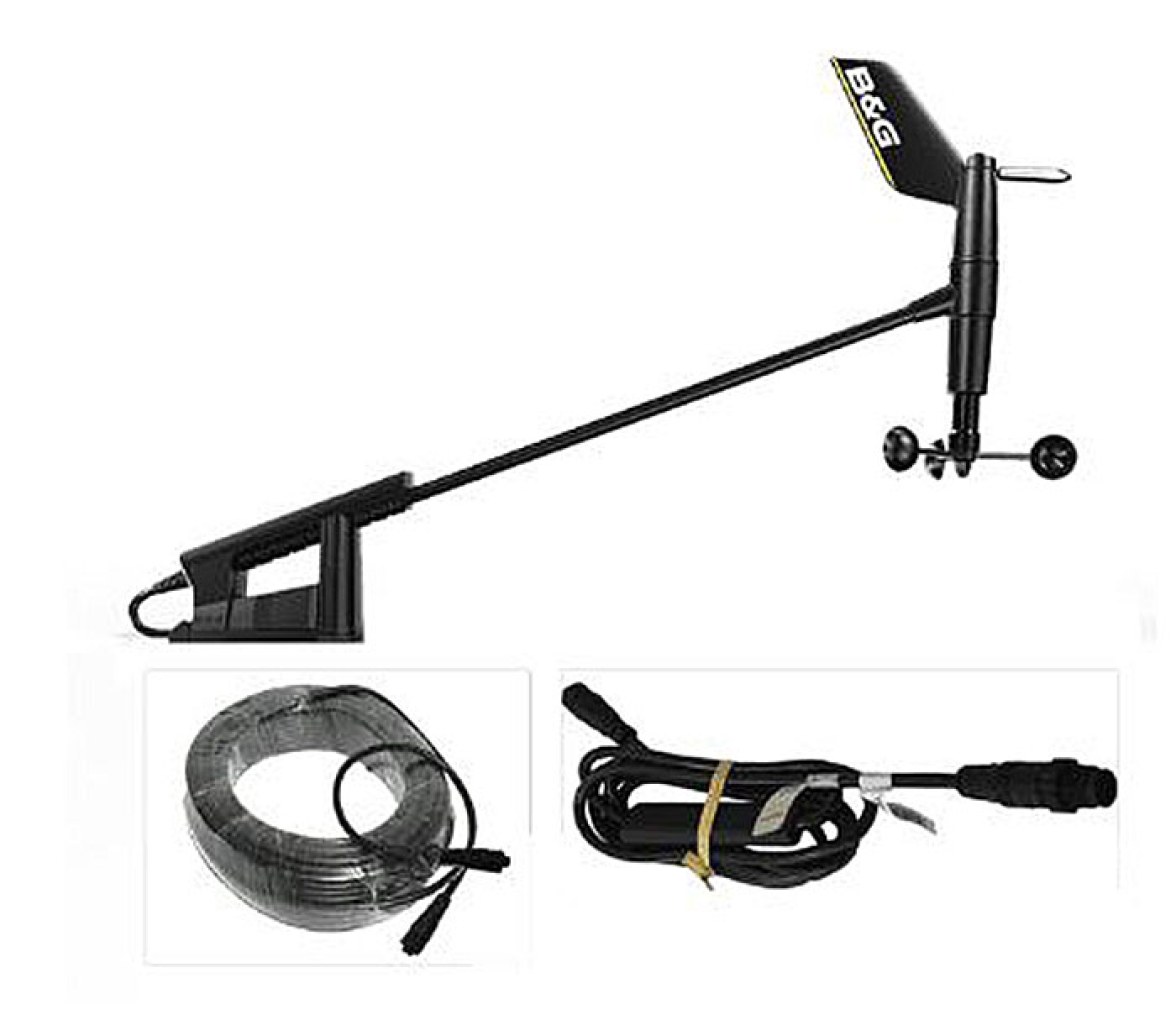

Includes: WS310 Wind Arm (mounting gasket, bracket and screws) + NMEA2000 Interface (Interface + 1.8m N2K + "T N2K cable) + 20 meters cable for the mast.
